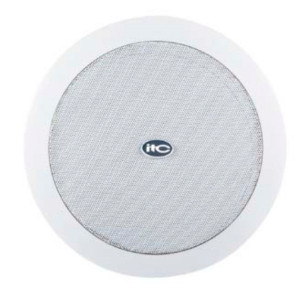

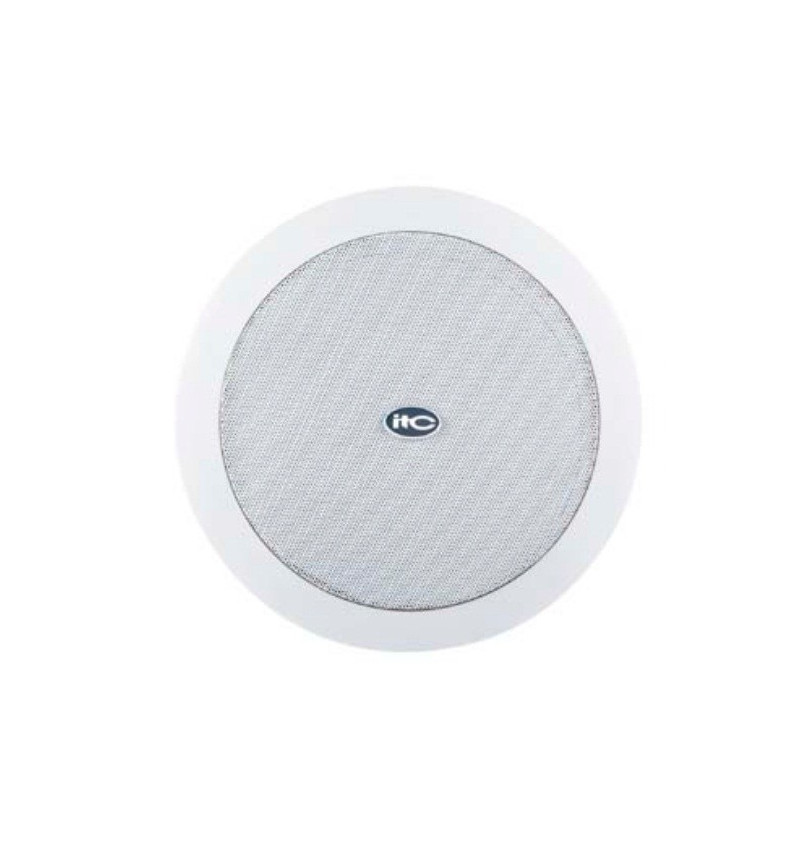

ITC - T-208BC, Passive Ceiling Double Cone Coaxial Speaker, 15W / 8Ohm 8 "Power
Availability:
Code : T208BC8PXX
TND229.000

The T- 208BC is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

The built-in 8 ” dual cone paper speaker driver is designed of wide frequency response 80-20kHz, the multiple power taps 1.87W, 3.75W, 7.5W & 15W are helpful for different applications varies from room size and ambient noise surroundings. The metal grille and ABS baffle are painted in attractive white color. Its flush mount type makes the easy and secure installation.

Quantity

Availability product:
In Stock


Garanties sécurité (à modifier dans le module "Réassurance")



Politique de livraison (à modifier dans le module "Réassurance")



Politique retours (à modifier dans le module "Réassurance")

ITC - T-208BC, Passive Ceiling Double Cone Coaxial Speaker, 15W / 8Ohm 8 "Power

Informations

The T- 208BC is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

The built-in 8 ” dual cone paper speaker driver is designed of wide frequency response 80-20kHz, the multiple power taps 1.87W, 3.75W, 7.5W & 15W are helpful for different applications varies from room size and ambient noise surroundings. The metal grille and ABS baffle are painted in attractive white color. Its flush mount type makes the easy and secure installation.

Characteristics

- Type: Passive

- Channels: 1

- Place of Origin: Guangdong, China

- Power Taps @70V: 3W/5W/7.5W

- Max. SPL (Rated W/1M): 96dB/99dB/102dB

- Speaker Driver: 5" *1 6" *1 8" *1

- Dimension: 202 *98mm 232 *107mm 275 *110mm

Specifications

- Product Model: T-208BC

- Dimensions: 280 x 80mm

- Cutout Size: 245mm

- Power Taps @100V: 1.87W, 3.75W, 7.5W, 15W

- Power Taps @70V: 0.93W, 1.87W, 3.75W, 7.5W

- SPL(1W/1M) :90dB

- Impedance: Black: Com Blue:5.3KΩ Red:2.6KΩ Green:1.3KΩ White:670Ω

- Max. SPL (Rated W/1M): 102dB

- Frequency Response (-10dB): 80-20KHz

- Finish Baffle: ABS, White Grille: Steel, White

- Speaker Driver: 8

- Weight: 1.4Kg

- Mounting: Flush-mount dog ears

T208BC8PXX
9000000012981

Specific References

Download

ITC - T-208BC

Download (328.29k)
