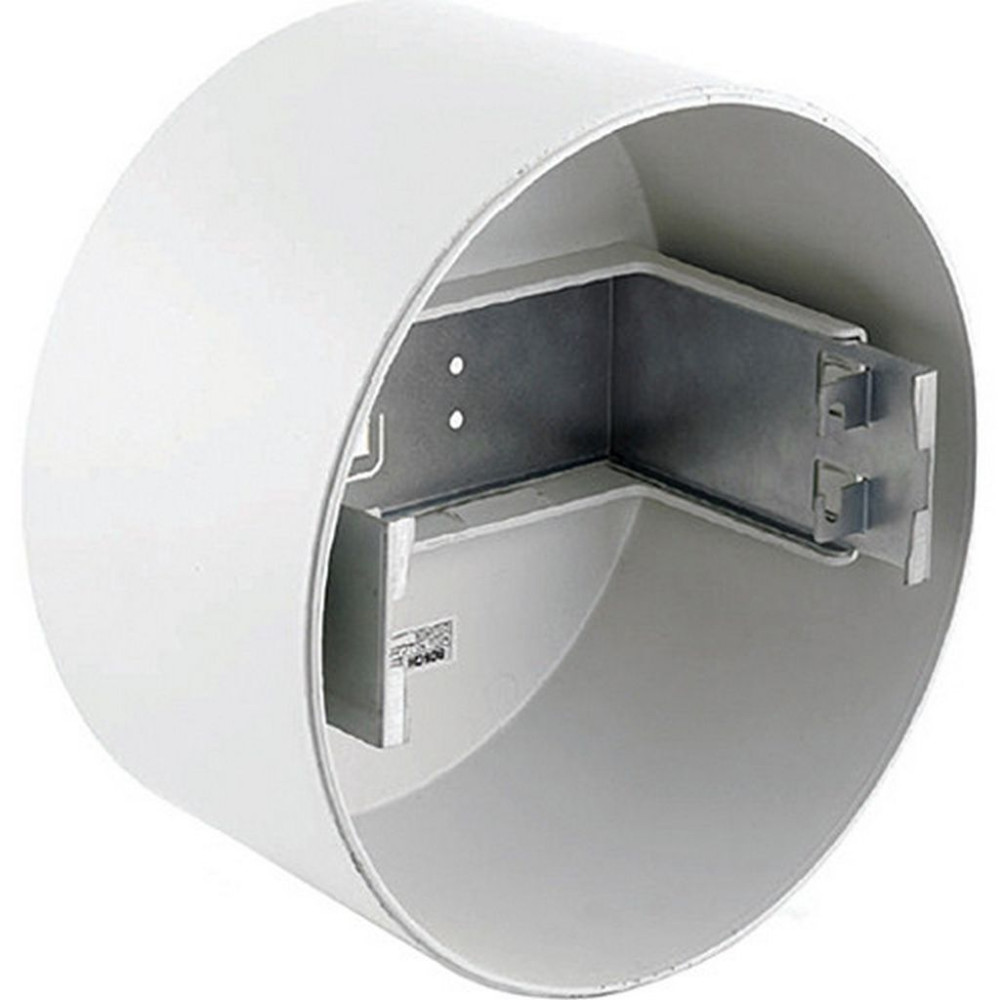

Bosch - LC1-CSMB, Surface-Mounting Box for LC1 Ceiling Loudspeakers

Bosch - LC1-CSMB, Surface-Mounting Box for LC1 Ceiling Loudspeakers

Availability:
Bosch
LC1CSMBXXX

- Wall or hard-ceiling mounting

- Durable white ABS enclosure

- Fits LC1 ceiling loudspeakers

- Side and rear cable access

- Optional single-point suspension kit

Hurry! only 10 items left in stock.
$68.69
Quantity

Add to Compare
Add to Wishlist
Availability product:
Full Stock
  Warranty & Security

Music Plus Warranty: 1-Year Coverage for Manufacturing Defects!

  Shipping Policy

Enjoy fast, reliable, and fully tracked delivery straight to your doorstep!

  Politique retours

Easy returns. Hassle-free exchanges. Total peace of mind.

Bosch - LC1-CSMB, Surface-Mounting Box for LC1 Ceiling Loudspeakers

Information

The Bosch LC1-CSMB is a surface-mounting enclosure designed to install Bosch LC1 modular ceiling loudspeakers on a wall or solid ceiling without requiring a flush-mount cutout. Its white ABS construction, multiple cable-entry openings and compatibility with an optional suspension kit make it suitable for shops, hotels, offices, schools, meeting rooms and public buildings.

Features

- Official Bosch surface-mounting enclosure

- Designed for the LC1 modular ceiling range

- Secures a compatible LC1 loudspeaker to a wall

- Supports mounting on a solid ceiling

- Eliminates the need for a flush-mount cutout

- Durable ABS plastic construction

- White finish matching LC1 loudspeakers

- Circular format matching the 220 mm LC1 grille

- Compatible with the Bosch LC1-WC06E8 loudspeaker

- Compatible with the Bosch LC1-WM06E8 loudspeaker

- Compatible with the Bosch LC1-UM06E8 loudspeaker

- Compatible with the Bosch LC1-UM12E8 loudspeaker

- Compatible with the Bosch LC1-UM24E8 loudspeaker

- Two opposite covered openings on the sides

- Side openings support external cable entry

- Four knock-out openings on the rear

- Supports cable entry directly from the wall

- Supports cable entry directly from the ceiling

- Compatible with the LC1-MSK metal suspension kit

- Optional single-point suspension installation

- Suspension kit sold separately

- Straightforward installation in indoor sound systems

- Suitable for speech and music distribution

- Designed for commercial and institutional installations

- Contains no active electronic components

- Requires no electrical power supply

- Ceiling loudspeaker sold separately

Specifications

- Brand: Bosch

- Model: LC1-CSMB

- Main product number: F.01U.075.452

- Additional regional variants: F.01U.377.484, F.01U.400.383 and F.01U.405.580

- Product range: LC1 Modular Ceiling Loudspeakers

- Product type: Surface-mounting box

- Application: Wall or solid-ceiling mounting

- Installation method: Surface mounting

- Material: ABS plastic

- Color: White

- Color reference: RAL 9010

- Dimensions: 220 × 128 mm

- Outside diameter: 220 mm

- Depth: 128 mm

- Weight: 690 g

- Side cable openings: 2, opposite and initially covered

- Rear knock-out openings: 4

- Single-point suspension: Supported with LC1-MSK

- Compatible suspension kit: Bosch LC1-MSK

- LC1-MSK product number: F.01U.079.216

- Compatible models: LC1-WC06E8, LC1-WM06E8 and LC1-UM06E8

- Additional compatible models: LC1-UM12E8 and LC1-UM24E8

- Operating temperature: -25 °C to +55 °C

- Storage and transport temperature: -40 °C to +70 °C

- Relative humidity: Less than 95%

- Electrical power required: No

- Electrical connectors: None

- Loudspeaker included: No

- Suspension kit included: No

- Supplied quantity: One LC1-CSMB mounting box

: LC1CSMBXXX
