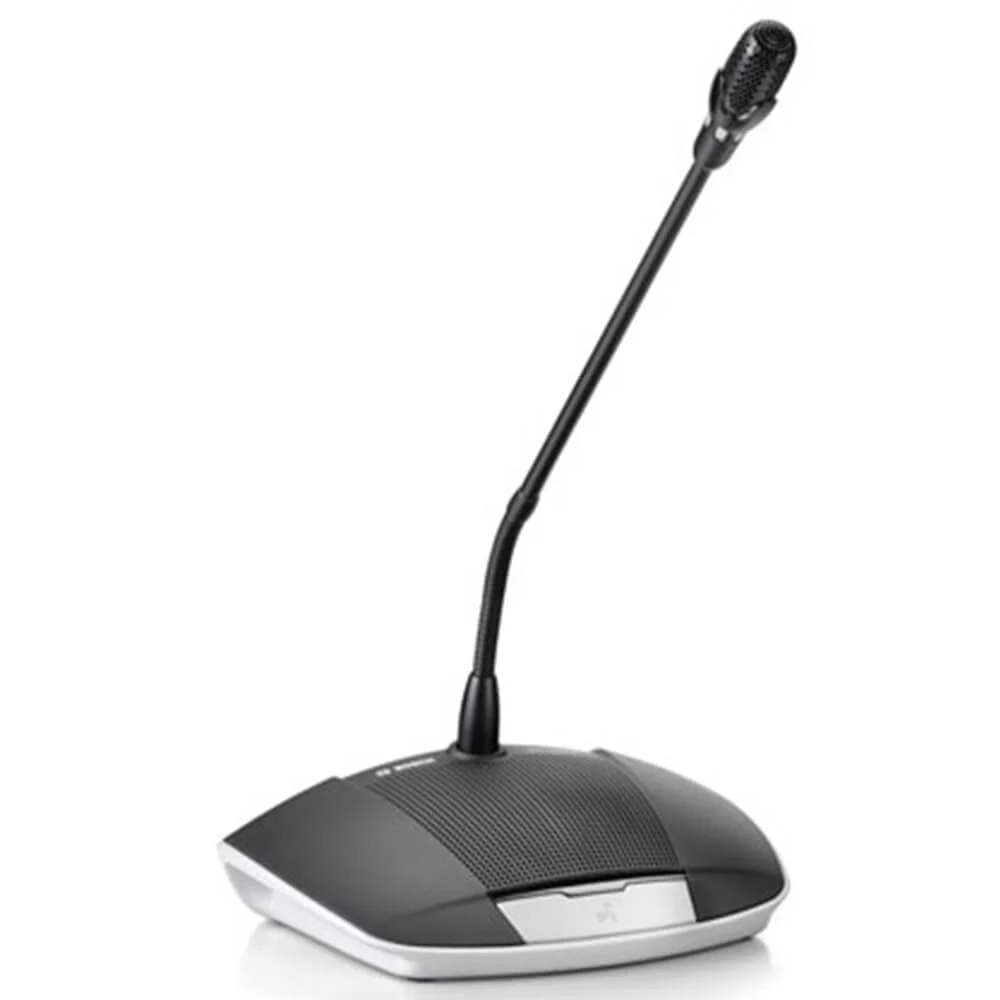

Bosch - CCSD-DL, CCS 1000 D Discussion Device with Long Microphone

Features

- Professional discussion device for meetings and conferences

- Compatible with the Bosch CCS 1000 D system

- Connects to CCSD-CU and CCSD-CURD Control Units

- Fixed microphone with long flexible gooseneck stem

- Microphone position easily adjusted for each user

- Extended 480 mm microphone length

- Cardioid polar pattern for focused sound pickup

- Integrated loudspeaker for listening to proceedings

- Simultaneous microphone and loudspeaker operation

- Provides a natural face-to-face meeting experience

- Integrated 3.5 mm stereo headphone socket

- Side-mounted headphone-volume thumbwheel

- Optional automatic headphone-volume reduction

- White possible-to-speak indicator

- Green request-to-speak indicator

- Flashing indication for first waiting-list position

- Illuminated ring in the microphone head

- Color-coded LED above the microphone button

- Clear microphone-active indication

- Clear request-to-speak indication

- Clear possible-to-speak indication

- Plug-and-play functionality for fast installation

- Devices can be connected without system shutdown

- No system restart required after reconfiguration

- Daisy-chain connection of multiple discussion devices

- Integrated two-meter connection cable

- Lockable six-pole circular connectors

- Immunity to mobile-phone interference

- Clear and uninterrupted meeting communication

- Configurable as a participant device

- Configurable as a chairperson device

- Concealed participant-chairperson configuration switch

- Concealed initialization button for network addressing

- Dedicated priority button in chairperson configuration

- Chairperson can override participant microphones

- Chime announces the chairperson's intervention

- Compact, attractive and ergonomic design

- Portable or fixed tabletop installation

- Durable plastic and metal construction

- Suitable for councils, conferences and meeting rooms

Specifications

- Brand: Bosch

- Model: CCSD-DL

- Product number: F.01U.299.031

- Product range: CCS 1000 D

- Product type: Discussion device with long microphone

- Operating configurations: Participant or chairperson

- Compatible Control Units: CCSD-CU and CCSD-CURD

- Microphone type: Fixed flexible gooseneck

- Microphone polar pattern: Cardioid

- Microphone length from mounting surface: 480 mm

- Microphone frequency response: 125 Hz to 15 kHz

- Microphone nominal input level: 85 dB SPL

- Integrated loudspeaker: Yes

- Maximum loudspeaker peak output power: 4 W

- Loudspeaker nominal output: 72 dB SPL

- Loudspeaker acoustic frequency response: 200 Hz to 16 kHz

- System electrical frequency response: 30 Hz to 20 kHz

- Total harmonic distortion: Less than 0.5%

- Signal-to-noise ratio: Greater than 93 dBA

- Sampling rate: 44.1 kHz

- Headphone connection: 3.5 mm stereo jack

- Headphone load impedance: Greater than 32 Ω and less than 1 kΩ

- Headphone-volume control: Side-mounted thumbwheel

- Loop-through connector: Six-pole circular female connector

- Integrated cable length: 2 m

- Cable connector: Lockable six-pole circular male connector

- Power consumption: 1.3 W

- Dimensions without microphone: 64 × 203 × 146 mm

- Height with microphone in horizontal position: 130 mm

- Weight: Approximately 1 kg

- Mounting type: Portable or fixed tabletop installation

- Top material: ABS+PC plastic

- Base material: ZnAl4 metal

- Top color: Traffic black RAL 9017

- Base color: Pearl light gray RAL 9022

- Operating temperature: 0 °C to +35 °C

- Storage and transport temperature: -40 °C to +70 °C

- Relative humidity: 5% to 98%, non-condensing

- Atmospheric pressure: 600 to 1,100 hPa

- European compliance: CE and WEEE

- Supplied component: Bosch CCSD-DL Discussion Device
