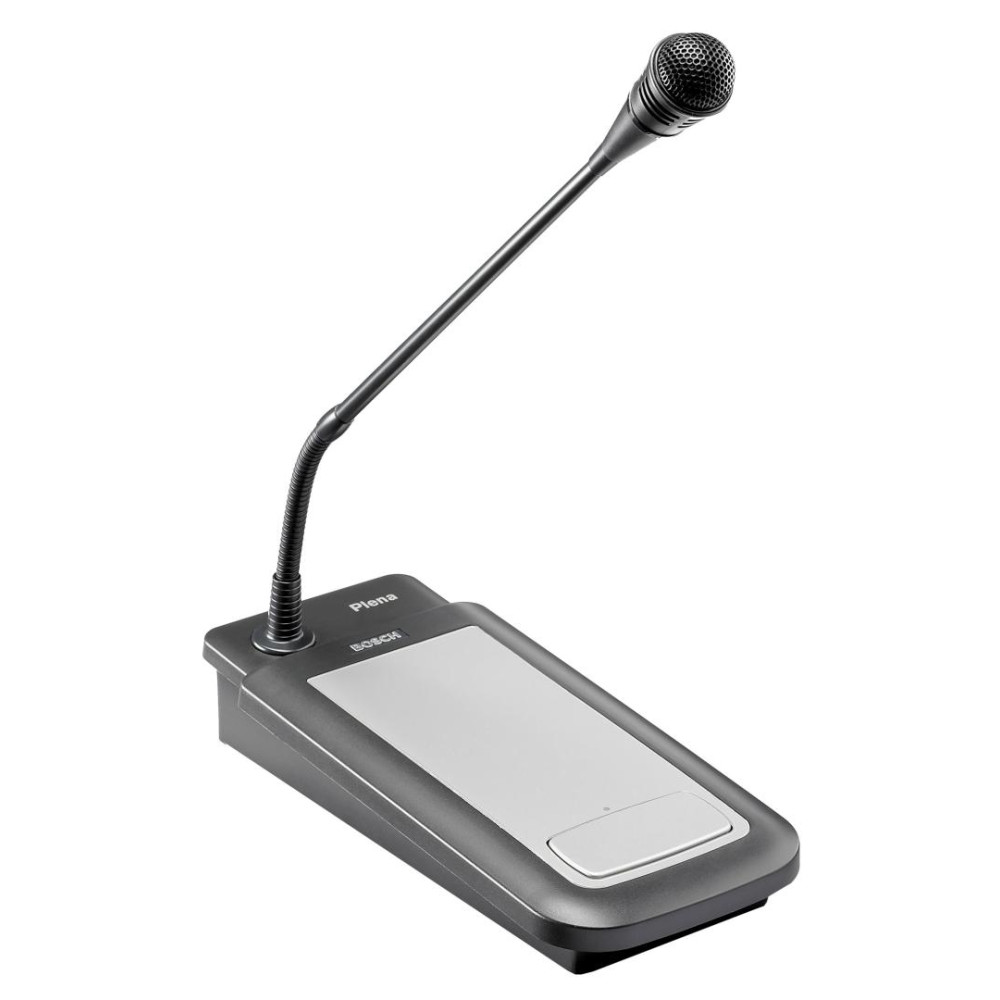

Bosch - PLE-2CS, Plena Two-Zone Call Station with Gooseneck Microphone

Features

- Professional call station for public-address systems

- Designed for Bosch Plena Easy Line systems

- Compatible with Plena two-zone mixers

- Compatible with Plena two-zone mixer amplifiers

- Independent selection of two paging zones

- Calls can be sent to one zone

- Calls can be sent to both zones simultaneously

- Two dedicated zone-selection buttons

- Two LED indicators show the selected zones

- Dedicated push-to-talk activation key

- Integrated unidirectional condenser microphone

- Flexible gooseneck for accurate microphone positioning

- Focused voice pickup helps reduce surrounding noise

- Selectable microphone-gain setting

- Three available gain presets

- Selectable speech filter for improved intelligibility

- Integrated limiter controls excessive signal levels

- Internal output-level adjustment

- Six configurable announcement chimes

- Functions configured through DIP switches

- Flashing green indication while the chime sounds

- Green indication when the microphone is active

- Amber indication during a higher-priority call

- Automatic call-station priority management

- Station nearest the mixer receives highest priority

- Daisy-chain connection of multiple call stations

- Supports up to eight connected call stations

- Two RJ45 connectors with loop-through operation

- Connection through a lockable CAT-5 cable

- Balanced line-level audio output

- Reliable signal transmission up to 200 meters

- CAT-5 extension cables support long-distance installation

- Powered directly by the connected Plena mixer

- No additional local power adapter required

- Stable and durable metal base

- Non-slip feet for secure tabletop use

- Suitable for standard desktop installation

- Can be flush-mounted into a desktop

- Professional charcoal and silver finish

- Suitable for paging and information messages

- Ideal for schools, hotels, shops and government facilities

Specifications

- Brand: Bosch

- Model: PLE-2CS

- Product number: F.01U.066.941

- Product range: Plena Easy Line

- Product type: Two-zone call station

- Application: Multi-zone voice paging

- Number of selectable zones: 2

- Maximum daisy-chained call stations: 8

- Speech control: Push-to-talk key

- Zone-selection keys: 2

- Zone-selection indicators: 2 LEDs

- Status indicators: Activity, priority and power

- Microphone type: Unidirectional condenser

- Microphone support: Flexible gooseneck

- Gain presets: -15 dB, 0 dB or +6 dB

- Nominal sensitivity: 85 dB SPL with 0 dB gain preset

- Maximum input sound level: 110 dB SPL

- Nominal output level: 700 mV

- Limiter threshold: 2 V

- Limiter compression ratio: 1:20

- Distortion at maximum input: Less than 0.6%

- Equivalent input-noise level: 25 dB SPLA

- Frequency response: 100 Hz to 16 kHz

- Speech filter: -3 dB at 315 Hz

- Speech-filter type: High-pass

- Speech-filter slope: 6 dB per octave

- Output impedance: 200 Ω

- Available chimes: 6

- Output-level adjustment: Internal rotary control

- System connectors: 2 RJ45 sockets

- Cable type: CAT-5

- Maximum distance with extension cables: 200 m

- Supplied cable length: 5 m

- Supplied cable connector: Lockable CAT-5 connector

- Supply voltage: 24 VDC

- Power source: PLE mixer or mixer amplifier

- Current consumption: Less than 30 mA

- Base dimensions without microphone: 40 × 100 × 235 mm

- Stem length including microphone: 390 mm

- Weight: Approximately 1 kg

- Base material: Metal

- Color: Charcoal with silver finish

- Mounting type: Tabletop or flush-mounted

- Operating temperature: -10 °C to +45 °C

- Storage and transport temperature: -40 °C to +70 °C

- Relative humidity: Less than 95%

- Safety standard: EN 60065

- EMC emission standard: EN 55103-1

- EMC immunity standard: EN 55103-2

- Regional certification: CE

- Supplied component: Bosch PLE-2CS Call Station

- Supplied cable: Five-meter cable with lockable CAT-5 connector
