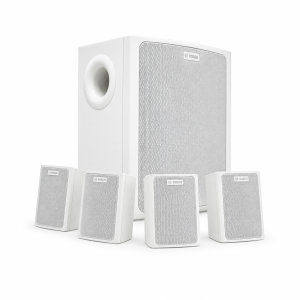

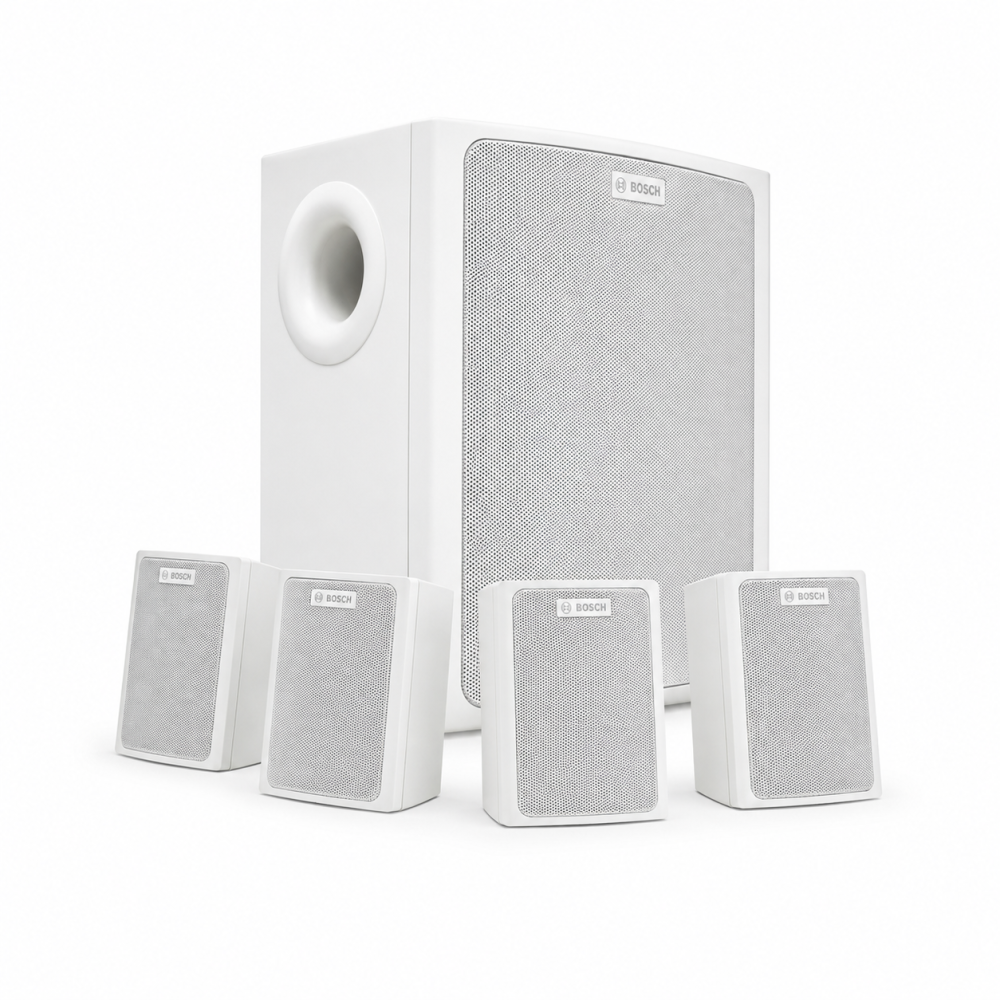

Bosch - LB6-100S-L, White Compact Speaker System with Subwoofer

Features

- Professional compact loudspeaker system

- One subwoofer and four satellite configuration

- High-performance 8-inch subwoofer

- Four compact 2-inch satellite speakers

- Designed for background and foreground music

- Up to 200 W system program power

- Compatible with low-impedance amplifiers

- Supports 4 Ω mono operation

- Supports 8 Ω stereo operation

- Compatible with 70 V and 100 V systems

- Integrated multi-tap transformer

- Extended 42 Hz to 20 kHz system response

- Integrated crossover network in subwoofer

- Direct satellite connections to subwoofer

- Removable Phoenix-style connectors

- Simplified wiring for faster installation

- Wide satellite speaker coverage

- Adjustable wall-mount brackets included

- Up to 160° horizontal satellite adjustment

- Up to 60° vertical satellite adjustment

- Rugged MDF subwoofer enclosure

- Fire-rated ABS satellite enclosures

- Discreet professional wall installation

- White finish for modern interiors

- CE certified for European applications

- Ideal for restaurants, bars, retail and professional spaces

Specifications

- Brand: Bosch

- Model: LB6-100S-L

- Series: LB6 Compact Sound

- Type: Compact wall-mount speaker system

- Color: White

- Configuration: 1 subwoofer + 4 satellites

- Subwoofer transducer: 200 mm (8-inch)

- Satellite transducers: 50 mm (2-inch)

- System frequency response: 42 Hz – 20 kHz (-10 dB)

- Subwoofer frequency response: 42 Hz – 300 Hz (-10 dB)

- Satellite frequency response: 180 Hz – 20 kHz (-10 dB)

- Subwoofer program power handling: 200 W

- Satellite program power handling: 30 W

- Subwoofer sensitivity: 88 dB

- Satellite sensitivity: 84 dB

- Maximum subwoofer SPL: 114 dB

- Maximum satellite SPL: 102 dB

- System stereo impedance: 8 Ω

- System mono impedance: 4 Ω

- Satellite impedance: 16 Ω

- Distributed audio compatibility: 70 V / 100 V

- Transformer taps: 100 W, 50 W, 25 W, 12.5 W

- Satellite voice coverage: 150° × 150°

- Satellite music coverage: 100° × 100°

- Subwoofer coverage: Omnidirectional

- Connectors: 2-pin Phoenix

- Subwoofer enclosure: MDF

- Satellite enclosure: Fire-rated ABS

- Satellite dimensions (H × W × D): 115 × 85 × 95 mm

- Subwoofer dimensions (H × W × D): 400 × 400 × 230 mm

- Satellite weight: 0.5 kg each

- Subwoofer weight: 12.05 kg

- System shipping weight: 18.26 kg

- Mounting: Wall mount

- Certification: CE
