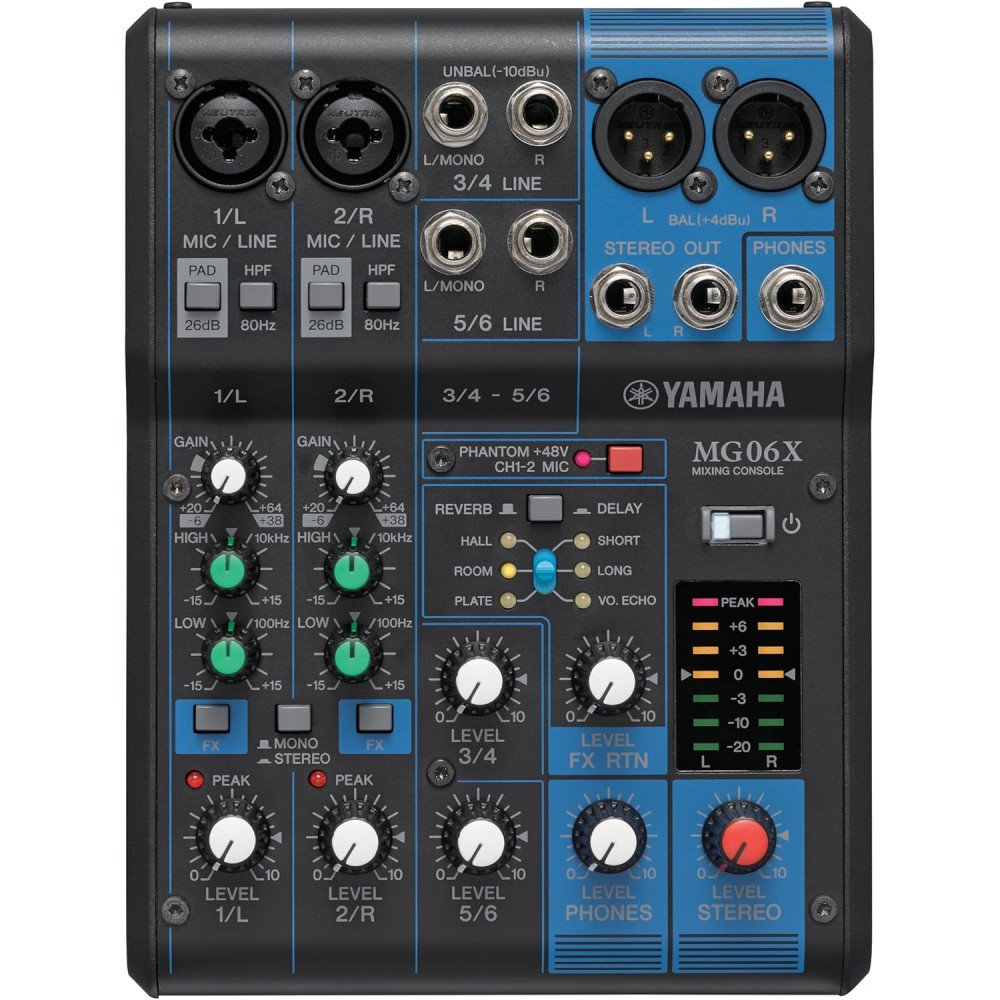

Yamaha - MG06X, 6-Channel Analog Mixer with Built-in SPX Effects

Characteristics

- Channels: 6 (2 mono, 2 stereo)

- Mic Preamps: 2 x D-PRE Class-A with inverted Darlington circuit

- Built-in Effects: 6 SPX programs (3 reverbs, 3 delays)

- EQ: 2-band (High: ±15 dB at 10 kHz; Low: ±15 dB at 100 Hz)

- High-Pass Filter: 80 Hz, 12 dB/octave on mono inputs

- PAD Attenuator: -26 dB on mono inputs

- Phantom Power: +48V switchable on channels 1 and 2

- Main Outputs: 2 x balanced XLR, 2 x TRS 1/4"

- Headphone Output: 1 x TRS 1/4" with level control

- Level Indicators: 2 x 7-segment LEDs

- Chassis: Metal, shock-resistant

Specifications

- Total Harmonic Distortion: 0.01% @ +8 dBu (20 Hz - 20 kHz)

- Frequency Response: 20 Hz - 20 kHz ±0.5 dB

- Equivalent Input Noise: -128 dBu (Rs: 150 Ω)

- Residual Output Noise: -102 dBu

- Crosstalk: -88 dB

- Power Consumption: 12 W

- Dimensions (W x H x D): 5.9" x 2.4" x 7.9" (149 x 62 x 202 mm)

- Net Weight: 1.98 lbs (0.9 kg)
