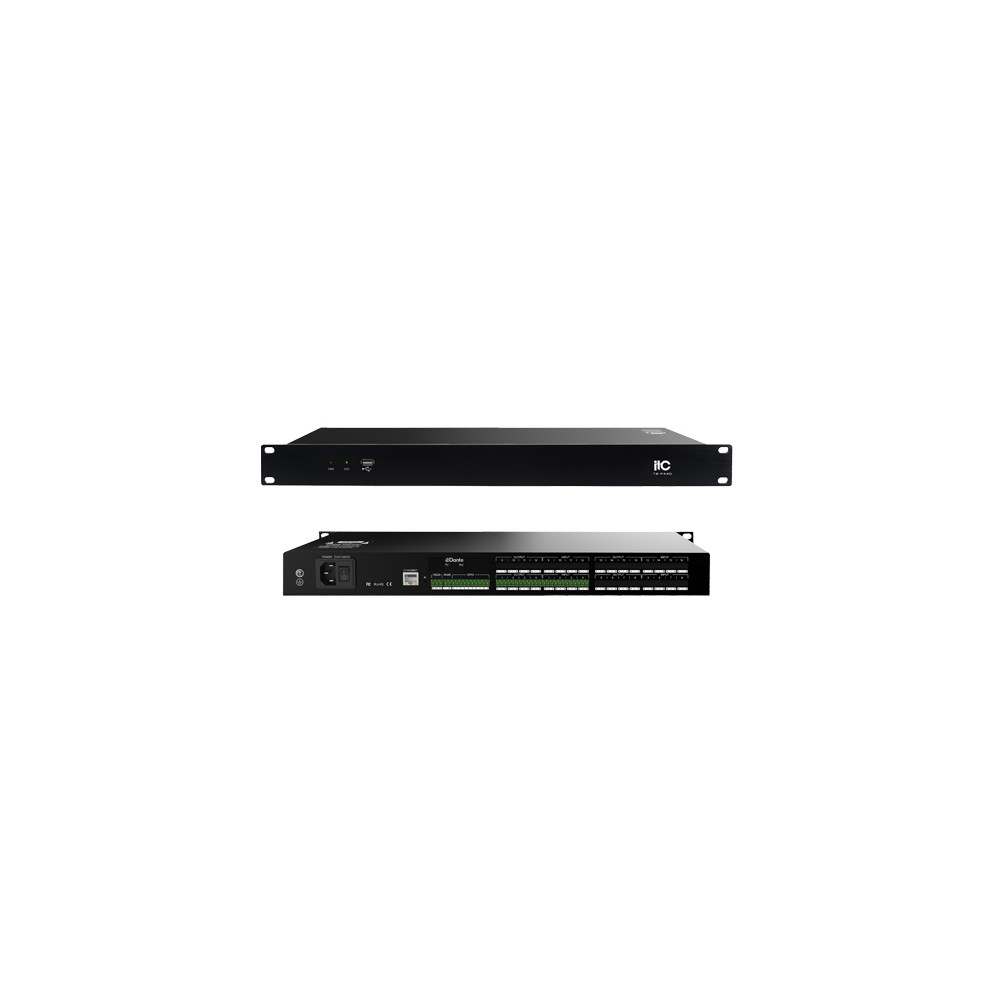

ITC - TS-P440, 4×4 DSP Digital Audio Processor

ITC - TS-P440, 4×4 DSP Digital Audio Processor

Availability:
ITC
TSP440XXXX

- High-performance DSP processing

- 4 inputs 4 outputs

- Built-in echo cancellation

- Intelligent matrix mixing

- Ethernet network control

Hurry! only 10 items left in stock.
$1,068.36
Quantity

Add to Compare
Add to Wishlist
Availability product:
Full Stock
  Warranty & Security

Music Plus Warranty: 1-Year Coverage for Manufacturing Defects!

  Shipping Policy

Enjoy fast, reliable, and fully tracked delivery straight to your doorstep!

  Politique retours

Easy returns. Hassle-free exchanges. Total peace of mind.

ITC - TS-P440, 4×4 DSP Digital Audio Processor

Informations

The ITC TS-P440 is a professional DSP digital audio processor designed for conference, public address, and AV integration systems. Featuring advanced digital signal processing, it delivers outstanding audio clarity, intelligent microphone management, and flexible system control for demanding professional installations.

Characteristics

- Professional DSP digital audio processor

- 4 balanced microphone/line inputs

- 4 balanced line outputs

- 24-bit / 48 kHz audio processing

- 4 × 4 matrix mixer

- Acoustic Echo Cancellation (AEC)

- Automatic Feedback Cancellation (AFC)

- Active Noise Cancellation (ANC)

- Automatic Gain Control (AGC)

- Automatic microphone mixing

- 5-band parametric EQ on each input

- 31-band parametric EQ on each output

- High-pass and low-pass filters

- Configurable crossover filters

- Built-in compressor and expander

- Built-in limiter

- Output delay processing

- Integrated signal generator

- 48 V phantom power

- Web browser configuration

- RJ45 Ethernet interface

- USB audio playback and recording

- RS-232 and RS-485 interfaces

- 8-channel programmable GPIO

- Compatible with Windows, iOS and Android

- Automatic parameter backup

- Channel copy and linking functions

- Standard 19-inch rack-mount design (1U)

Specifications

- Brand: ITC

- Model: TS-P440

- Product type: DSP digital audio processor

- Inputs: 4 balanced microphone/line inputs

- Outputs: 4 balanced line outputs

- Audio resolution: 24-bit

- Sampling rate: 48 kHz

- Frequency response: 20 Hz–20 kHz

- THD + N: <0.002%

- A/D dynamic range: 120 dB

- D/A dynamic range: 120 dB

- Maximum input level: +24 dBu

- Maximum output level: +24 dBu

- Input impedance: 20 kΩ

- Output impedance: 100 Ω

- Channel separation: 100 dB

- Phantom power: +48 V DC

- Network interface: RJ45 Ethernet

- USB interface: Yes

- RS-232: Yes

- RS-485: Yes

- GPIO: 8 programmable ports

- Power supply: AC 110-220 V, 50/60 Hz

- Power consumption: <40 W

- Operating temperature: 0°C to +40°C

- Dimensions: 482 × 258 × 45 mm

- Mounting: 19-inch rack (1U)

- Net weight: 1.95 kg

- Gross weight: 2.9 kg
