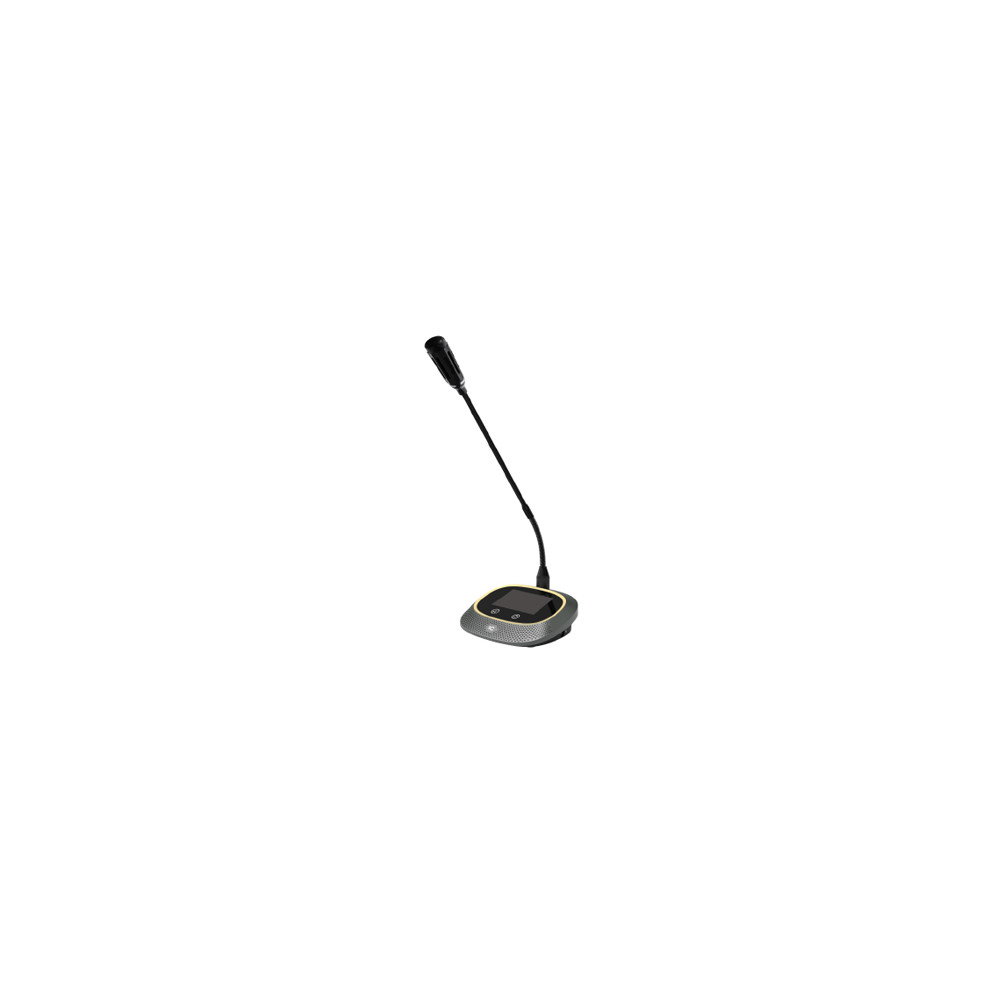

ITC - TS-0309A, Digital Delegate Conference Unit with Touchscreen

Characteristics

- Digital delegate conference unit

- Cardioid electret microphone

- 3.5-inch full-color touchscreen

- Uncompressed digital audio transmission

- 48 kHz sampling rate

- 80 Hz–16 kHz audio bandwidth

- 100 Mbps network transmission

- Daisy-chain network cabling

- Standard TCP/IP communication

- Network ping support

- Supports 63+1 simultaneous interpretation channels

- Dual-channel interpretation monitoring

- Dual 3.5 mm headphone outputs

- External microphone connection through headphone port

- PC software microphone control

- Adjustable voice activation

- Built-in web server

- Web-based firmware upgrade

- Adjustable microphone ID

- Adjustable microphone sensitivity

- 5-band equalizer

- Built-in feedback suppression

- Speech timer and countdown

- Speak request function

- Delegate sign-in function

- Multiple voting modes with customizable options

- Optional clock display

- Automatic IP and MAC address detection

- Desktop installation

Specifications

- Brand: ITC

- Model: TS-0309A

- Product type: Digital delegate conference unit

- Microphone type: Electret condenser

- Polar pattern: Cardioid

- Frequency response: 80 Hz–16 kHz

- Microphone impedance: 680 Ω

- Sensitivity: -41 ±1.5 dB (1 kHz)

- Maximum SPL: 120 dB

- Signal-to-noise ratio: >80 dB(A)

- Crosstalk: >70 dB

- Dynamic range: >80 dB

- THD: <0.1%

- Display: 3.5-inch color touchscreen

- Interpretation channels: 63+1

- Headphone outputs: 2 × 3.5 mm

- Maximum power consumption: 4.5 W

- Power supply: Conference server

- Color: Graphite gray

- Microphone length: 380 mm

- Dimensions: 145.7 × 133.6 × 46 mm (excluding microphone stem)

- Installation: Desktop

- Net weight: 0.70 kg
