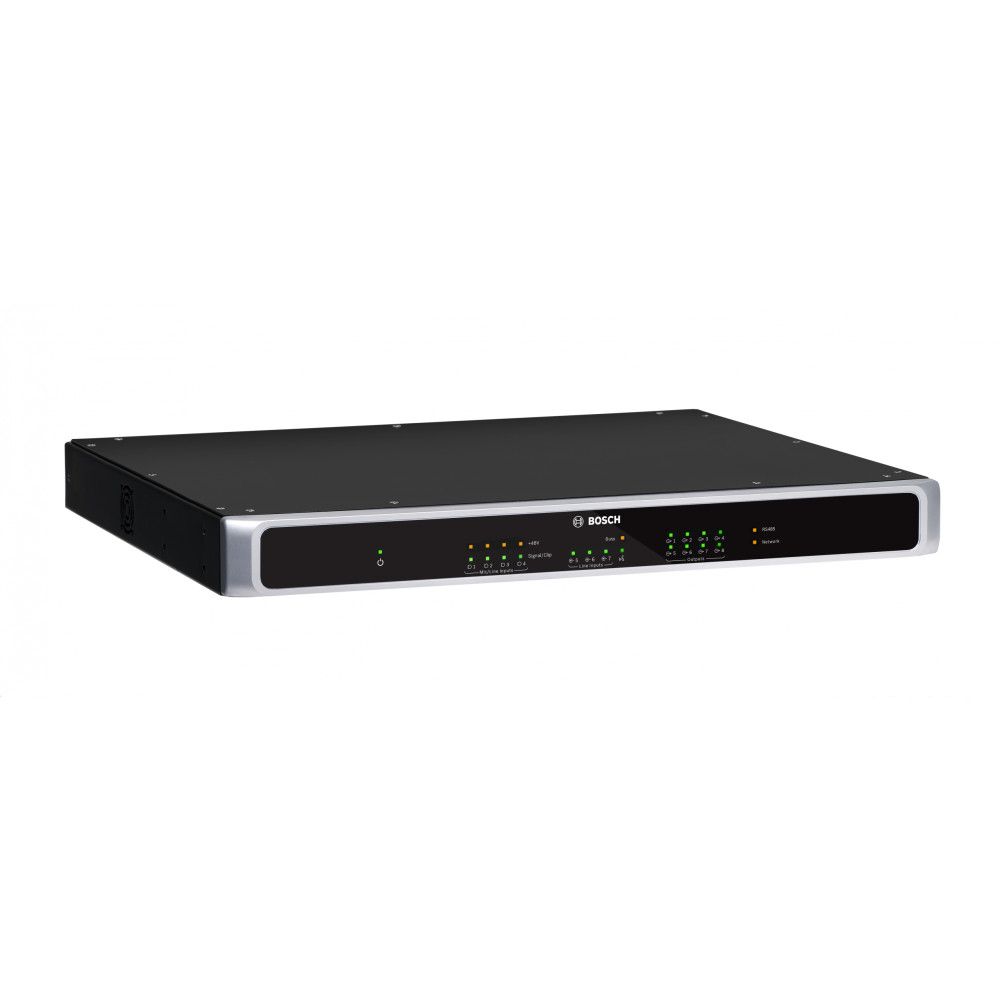

Bosch - PLM-8M8 PLENA Matrix, 8-Channel Mixer


Bosch - PLM-8M8 PLENA Matrix, 8-Channel Mixer

Availability:
Bosch
PLM8M8XXXX

The PLENA Matrix system is designed to be versatile and easy to use. Users can control audio settings and adjust volume levels wirelessly via an iPad® or iPhone® app. The PLM 8M8 PLENA 8-channel DSP matrix processor provides complete control over audio setup and signal processing. Users can simply enter a particular zone and mix and select inputs with confidence while controlling output levels. From live and background music environments to in-demand voice apps, this iOS app sets new standards in end-user control.

Hurry! only 10 items left in stock.
$2,968.27
Quantity

Add to Compare
Add to Wishlist
Availability product:
Full Stock
  Warranty & Security

Music Plus Warranty: 1-Year Coverage for Manufacturing Defects!

  Shipping Policy

Enjoy fast, reliable, and fully tracked delivery straight to your doorstep!

  Politique retours

Easy returns. Hassle-free exchanges. Total peace of mind.

Bosch - PLM-8M8 PLENA Matrix, 8-Channel Mixer

Information

The PLM-8M8 PLENA matrix 8-channel DSP mixer/matrix is ​​designed to provide maximum flexibility and reliability. It constitutes both the heart and soul of the PLENA matrix system. When combined with PLM-8CS call stations, PLM-WPC wall-mounted keypads and PLM-4Px2x amplifiers, it is suitable for most applications that require up to 8 zones of high-fidelity voice and music reproduction .

The audio quality is suitable for a variety of applications: concerts, background music, conferences in restrictive environments and announcements in areas.

Features

Inputs

- Input gain: -16 dB attenuator, +48 V phantom power, 100 Hz HPF

- Connectors: 4 mixed XLR/TRS inputs

- Logic inputs: Bipolar Phoenix terminal block (metric)

Input saturation level:

- Attenuator off: 8.4 dBu (6.2 dBV)

- Attenuator activated: 24.2 dBu (21.9 dBV)

- Input dynamic range compression: threshold, ratio, attack, recovery and gain.

- Parametric input equalizer: each band can be selected as: bell filter, shelving or notch.

- The crossover provides: a high pass filter (HPF) and a low pass filter (LPF) up to the 8th order.

- Parametric EQ output: each of the 7 bands can be selected as: bell filter, shelf, notch or all pass.

- Output delay, with 120 ms per output.

- Output level to limit the maximum output level of the zone.

- Muting the zone and system (Mute).

Outputs

- All 8 zone outputs use the Phoenix Euro screw terminal (symmetrical). These same outputs are duplicated in zones 1-4 and 5-8 Amp Link via two RJ45 connectors.

- Output dynamic range compressor: threshold, ratio, attack, recovery and gain for each channel.

Amplifier

- 2 x RJ45 Connector

- Nominal level 1 V

- Impedance < 100 ohms

Food

Mains voltage:

- Nominal input voltage: 100 - 240 Vac ±10%, 50/60 Hz

- Input voltage limits: 90 - 264 Vac

Performance

- Frequency response (-1 dB) 20 Hz to 20 kHz (+0/-3 dB)

Ethernet (10/100 Mbps)

- 1 x RJ45 Connector

Specifications

- Operating temperature: -10 to +45 °C

- Storage temperature: -40 to +70 °C

- Relative humidity: < 95%

- Dimensions: (H x W x D) 45 x 440 x 358 mm (width: 19", height: 1 RU)

- Standalone mounting, 19" rack

- Color Traffic black (RAL 9017) / Silver (RAL 9006)

- Weight Approx. 6 kg

: PLM8M8XXXX
