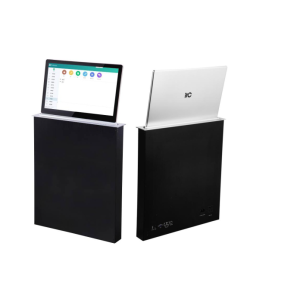

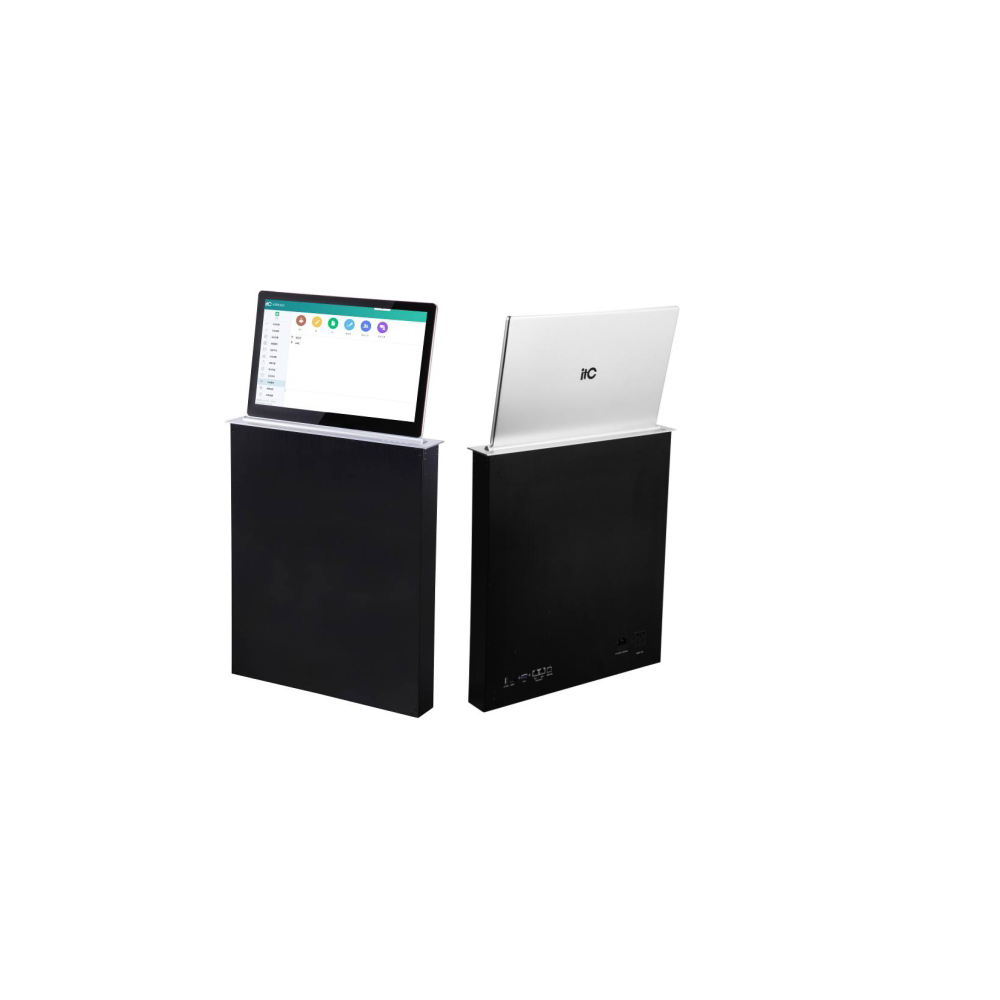

ITC – TS-8201A, 15.6" Ultra-Slim Motorized Full HD Interactive Monitor Lift

Characteristics

- 15.6-inch interactive touchscreen

- Full HD 1920 × 1080 resolution

- Quiet motorized lift mechanism

- Push-button, remote or central control operation

- Automatic lifting and retracting

- CNC-machined aluminum alloy housing

- High-precision guide rail system

- Low-noise AC motor

- Adjustable viewing angle from 0° to 30°

- Automatic video signal detection

- Automatic power-saving mode

- HDMI, VGA and USB connectivity

- USB file browsing and upload support

- Built-in power outlet for simplified wiring

- Compact footprint

- Ideal for conference rooms, hotels, classrooms, training centers and auditoriums

Specifications

- Brand: ITC

- Model: TS-8201A

- Display Size: 15.6-inch TFT LCD

- Touchscreen: Yes

- Lifting Time: 28 s

- Tilt Angle: 0°–30°

- Product Dimensions: 430 × 70 × 565 mm

- Panel Dimensions: 430 × 70 × 3 mm

- Cabinet Dimensions: 415 × 60 × 562 mm

- Recommended Cut-out: 417 × 62 mm

- Panel Cut-out: 431 × 71 × 3 mm

- Aspect Ratio: 16:9

- Resolution: 1920 × 1080

- Video Inputs: HDMI, VGA

- Backlight: LED, 15,000-hour lifespan

- Contrast Ratio: 600:1

- Brightness: 300 cd/m²

- Viewing Angle: 45° / 45° / 20° (Typ.)

- Display Thickness: 9.7 mm

- Power Supply: AC 220 V, 50/60 Hz

- Power Consumption: ≥18 W

- Weight: 6.9 kg

- Operating Conditions: -20°C to +50°C, Relative Humidity ≤70%
