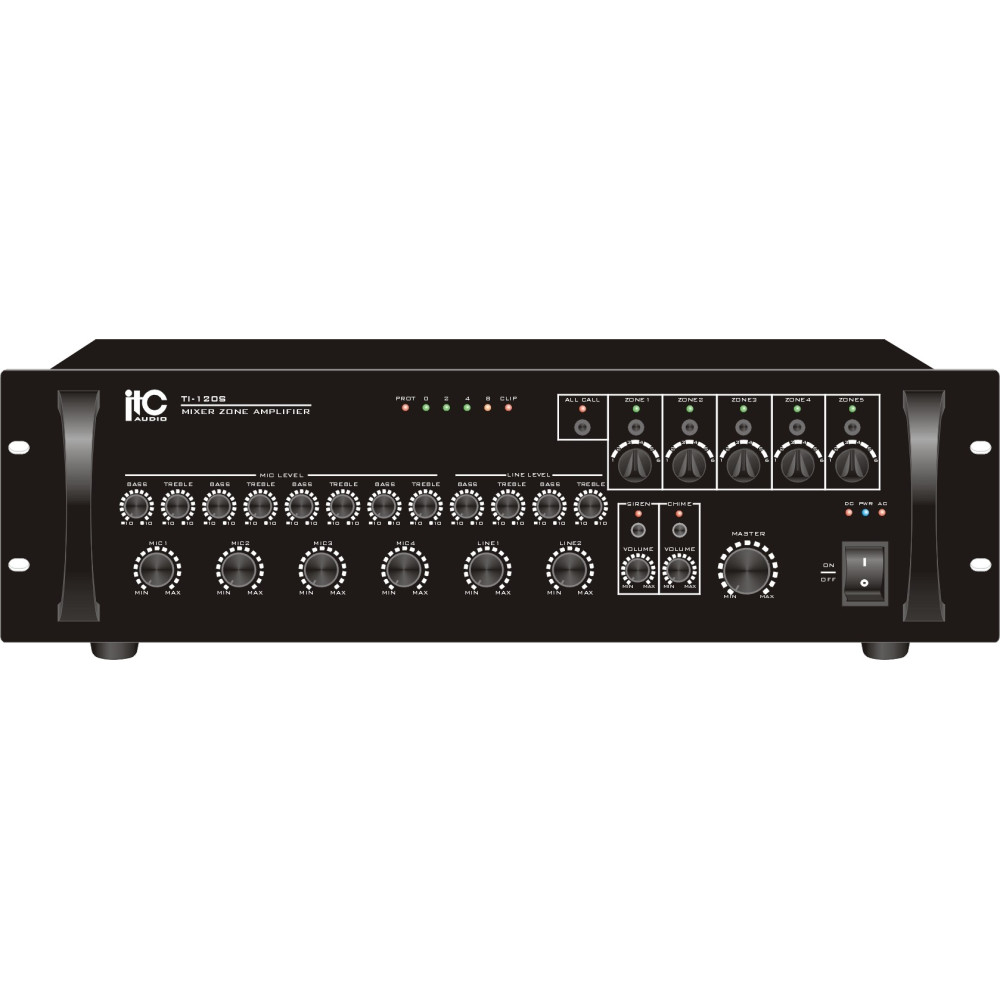

ITC - TI-120S, 120W Classic Mixing Amplifier, 5 Zones

Informations

The TI-S series 5 zone mixer amplifiers are 3U mixer amplifier with 70V, 100V and 4-16ohm speaker outputs and 4 universal microphone inputs of 1/4 "phone jack and XLR type. Double RCA type line are also provided.The uniqueness of this amplifier is that the 5 zone outputs with separate volume control, which ensure the control of the flexible zone.Every 6 inputs are equipped with low / tone controls. A T-318 of the remote zone exchange console 5 is provided for the announcement and control of another location.Master, Mic1-4, volume control line1-2 & 6 separate treble / bass Tone control for each input are provided, as well as microphone 1 priority over the other inputs Each channel input with separate treble and bass control Built -Family for fire alarm system, EMC input , integrated chime, 2/4 tone chime selector, chime remote trigger. The TEL entry could be used as a telephone system on a public address system. The REC output for tape recorder and the PRE output, AMP input for adding processo r additional signal as mixer, graphic equalizer. Complete protection includes short circuits and thermal protection, current limiter and overload.
