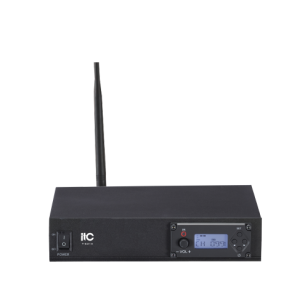

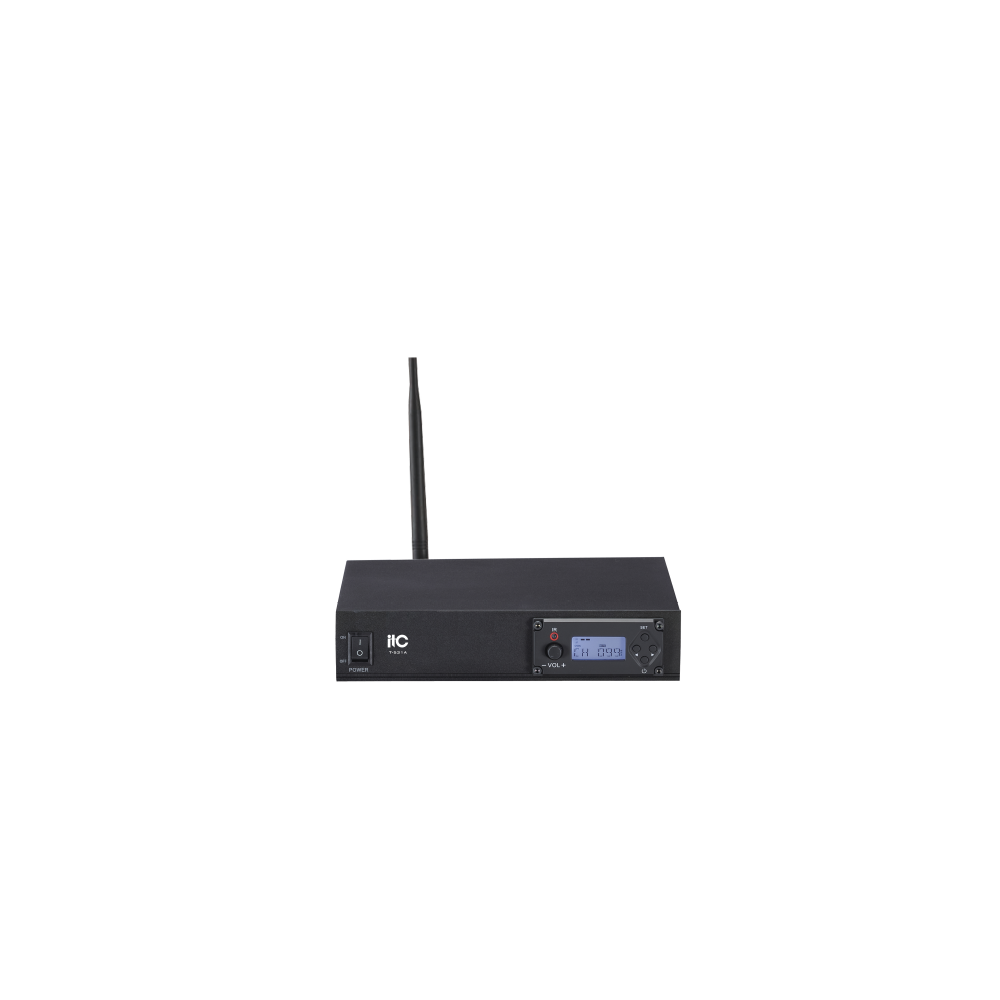

ITC - T-531B Wireless Microphone

Informations

frequency-adjustable single channel wireless microphone with UHF band LCD display-non true diversity

Characteristics

- It adopts 1/2 width and 1U height of EIA international standard metal cabinet, which can be directly mounted to the rack.

- With 100 frequencies in each of 640-857MHZ six frequency bands, advanced PLL frequency synthesis phase-locked loop technology, adjustable frequency and adjustable transmit power to avoid interference frequency.

- Superior anti-interference ability can effectively restrain same frequency interference, or noise caused by the external interference.

- LCD display window, channel, frequency, RF signal strength, AF audio output intensity.

- With infrared frequency automatic synchronization locking transmitter frequency ACT function.

- Receiving antenna adopts rear separated design, single-antenna automatic selection reception, audio code and noise to lock double mute circuit. It is not only long in receiving distance, but also rare to disconnect.

- SQ internal adjustment can increase the receiving sensitivity to increase the receiving distance, or reduce the sensitivity to avoid noise interference.

Specifications

- Frequency Range: UHF 640-857MHz,Two bands total

- Modulation: Broadband FM

- Adjustable range: 25MHz

- Channel Number: 600

- Channel Spacing: 250KHz

- Frequency Stability: Within ±0.005%

- Dynamic Range: 100dB

- Maximum Deviation: ±45KHz

- Frequency Response: 60-18KHz (±3dB)

- Comprehensive SNR: >115dB

- THD: ≤0.5%

- Operating Distance: 100 meters in the clearing

Receiver Specifications:

- Receiver Mode: Double frequency conversion superheterodyne

- Intermediate Frequency: 110MHz, 10.7MHz

- Antenna Access: BNC/50Ω

- Sensitivity: 12dB μV (80dBS/N)

- Adjustable Sensitivity Range: 12-32dB μV

- Spurious suppression: ≥75dB

- Output socket type: Balanced and unbalanced

- Maximum output level: +10dBV

- Power supply: DC 12~15V 500mA

- Operating temperature: -10°C~+80°C

- Dimensions (W x H x D): 210x44x147 mm

- Weight: About 1.4Kg

Microphone Specifications:

- Sound head: Moving-coil microphone

- Capacitive: Lapel microphone, headset microphone

- Antenna: Hand-held microphone with built-in helical antenna. And the transmitter uses a 1/4 wavelength whip antenna

- Output Power: High power 30mW; low power 3mW

- Discrete suppression: -60dB

- Power supply: 2 AA batteries
