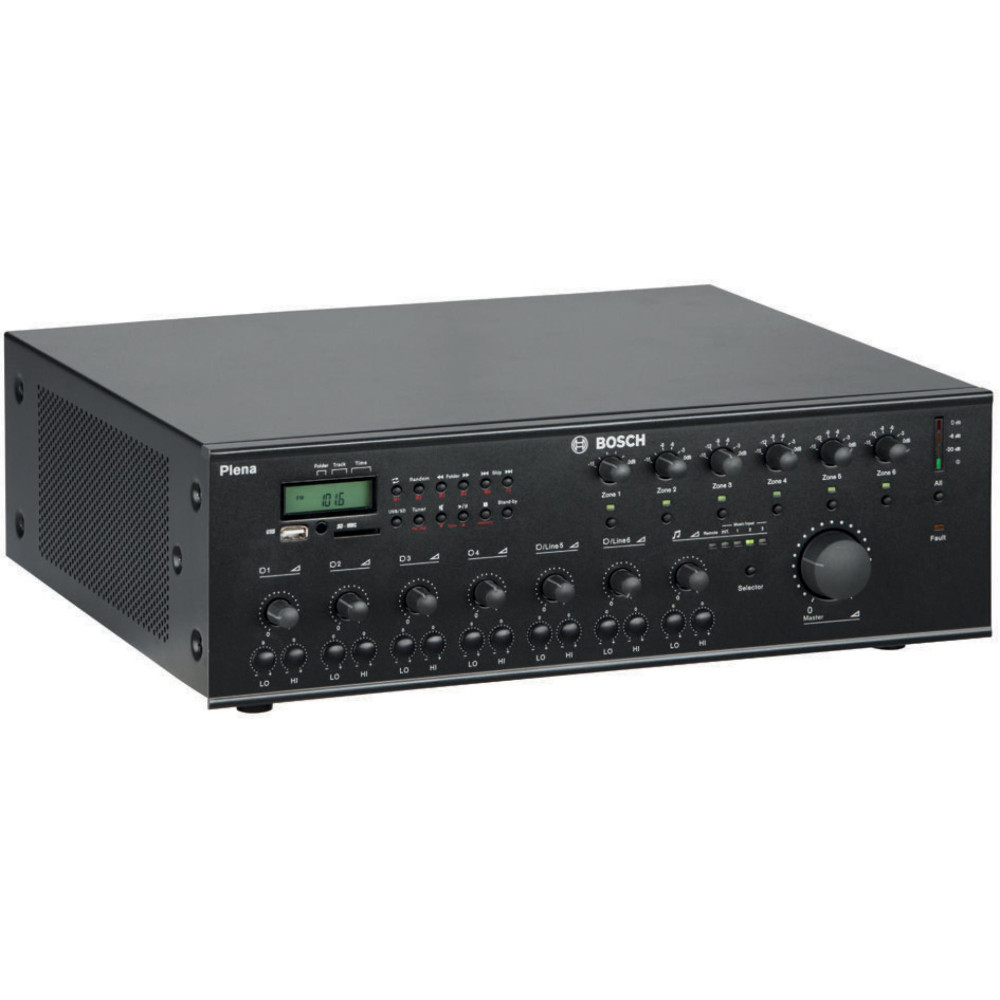

Bosch - PLN-6AIO240, 6-Zone 240 W mixer amplifier

Features

- All-in-One solution for background music, announcements and paging.

- Integrated 240 W power amplifier.

- Six-zone music distribution and paging system.

- Individual level adjustment for different zones.

- Built-in AM/FM tuner with presets.

- Integrated digital MP3 player.

- Playback from USB storage devices.

- Compatible with SD, SDHC and MMC cards.

- Six microphone/line inputs.

- Three dedicated music source inputs.

- Balanced microphone inputs with phantom power.

- Priority and ducking functions for announcements.

- VOX signal detection on microphone/line inputs.

- Separate bass and treble controls.

- Infrared remote control for music source operation.

- Compatible with Bosch PLN-6CS Call Station.

- Supports up to six PLN-6CS Call Stations.

- Compatible with Bosch PLN-4S6Z Wall Panel.

- RJ45 connections for Call Station and Wall Panel.

- Supports connection of an external power amplifier.

- Standalone or 19-inch rack installation.

Specifications

- Rated output power: 240 W.

- Number of zones: 6.

- Microphone/line inputs: 6.

- Music inputs: 3.

- Microphone frequency response: 100 Hz to 15 kHz, +1/-3 dB.

- Line frequency response: 50 Hz to 20 kHz, +1/-3 dB.

- Distortion: <1% at rated output power, 1 kHz.

- Bass control: ±8 dB at 100 Hz.

- Treble control: ±8 dB at 10 kHz.

- Microphone input sensitivity: 1.5 mV.

- Line input sensitivity: 200 mV.

- Microphone impedance: >600 Ω.

- Line impedance: >10 kΩ.

- Microphone signal-to-noise ratio: >65 dBA.

- Line signal-to-noise ratio: >70 dBA.

- Phantom power supply: 18 V.

- Music inputs 1 and 2 sensitivity: 500 mV.

- Music input 3 sensitivity: 300 mV.

- Music input impedance: 10 kΩ.

- FM tuner range: 87.5 to 108 MHz.

- AM tuner range: 530 to 1602 kHz.

- Digital player format: MP3.

- Supported MP3 bit rate: 32 to 320 kbps.

- Digital player frequency response: 20 Hz to 20 kHz.

- Digital player signal-to-noise ratio: >70 dBA.

- Mains power supply: 115/230 V AC ±15%, 50/60 Hz.

- Maximum power consumption: 720 W.

- Fuse rating: 6.3 A at 230 V AC / 10 A at 115 V AC.

- Dimensions (H x W x D): 133 x 430 x 365 mm.

- Rack format: 19-inch, 3U.

- Weight: approximately 18 kg.

- Color: charcoal.

- Operating temperature: -10 °C to +45 °C.

- Storage temperature: -40 °C to +70 °C.

- Relative humidity: <95%, non-condensing.
