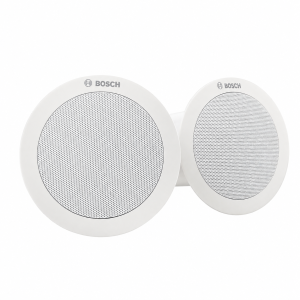

Bosch - LC6-S-L, Pair of 2-Inch 16-Ohm Ceiling Satellite Speakers

Features

- Pair of flush-mounted ceiling satellite loudspeakers

- Designed for background-music reproduction

- Optimized for Bosch Compact Sound systems

- Designed for use with the LC6-SW100-L subwoofer

- Two compact two-inch loudspeaker transducers

- 50 mm transducer diameter

- Sixteen-ohm nominal impedance

- Thirty-watt program power handling

- Extended frequency response up to 20 kHz

- Clear midrange and high-frequency reproduction

- Nominal sensitivity of 84 dB

- Maximum sound-pressure level of 102 dB

- Wide coverage for speech reproduction

- 150° × 150° speech coverage

- 100° × 100° music-program coverage

- Detachable four-pin Phoenix connector

- Connector supports pass-through wiring

- Simplifies connection of multiple satellite speakers

- Integrated captive mounting tabs

- Quick installation in nearly any ceiling construction

- C-ring mounting supports included

- Ceiling cutout template included

- Paint shield supplied for each satellite

- Removable front grilles included

- Steel and ABS enclosure construction

- Fire-resistant ABS plastic components

- Discreet professional white finish

- UL 2043 rated for plenum spaces

- UL 1480 rated for signaling applications

- European CE certification

- No integrated line transformer

- Designed for compatible low-impedance amplification

- Supplied and sold as a pair

Specifications

- Brand: Bosch

- Model: LC6-S-L

- Product number: F.01U.308.260

- Product range: Compact Sound

- Product type: Flush-mounted ceiling satellite loudspeakers

- Package quantity: 2 loudspeakers

- Primary application: Background music

- Recommended subwoofer: Bosch LC6-SW100-L

- Transducer diameter: 50 mm

- Transducer diameter: 2 inches

- Nominal impedance: 16 Ω

- Program power handling: 30 W

- Frequency response at -10 dB: 180 Hz to 20 kHz

- Sensitivity at 1 W/1 m: 84 dB

- Maximum sound-pressure level: 102 dB

- Speech coverage horizontal × vertical: 150° × 150°

- Music coverage horizontal × vertical: 100° × 100°

- Audio connector: Detachable four-pin Phoenix

- Connector function: Input and pass-through wiring

- Transformer taps: Not applicable

- Enclosure materials: Steel and ABS plastic

- Plastic property: Fire resistant

- Color: White

- Mounting type: Flush ceiling mounting

- Mounting system: Captive mounting tabs

- Dimensions: 119 × 135 mm

- Ceiling cutout diameter: 114 mm

- Net weight per speaker: 0.82 kg

- Shipping weight per pair: 2.34 kg

- Operating temperature: -25 °C to +55 °C

- Storage temperature: -40 °C to +70 °C

- European certification: CE

- United States ratings: UL 2043 and UL 1480

- Manufacturer status: Discontinued

- Supplied loudspeakers: 2

- Supplied grilles: 2

- Supplied C-ring supports: 2

- Supplied paint shields: 2

- Supplied cutout template: 1

- Supplied engineering datasheet: 1

- Subwoofer included: No
