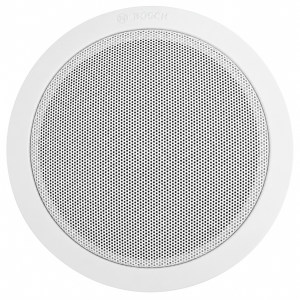

Bosch - LHM0606/10, 6W Dual-Cone Ceiling Loudspeaker for 100V Systems

Features

- Flush-mounted suspended-ceiling loudspeaker

- Designed for speech and music reproduction

- Full-range dual-cone loudspeaker design

- Six-inch loudspeaker transducer

- Six-watt rated output power

- Nine-watt maximum power handling

- Three selectable transformer power settings

- Available taps: 6 W, 3 W and 1.5 W

- Full, half and quarter-power selection

- Integrated 100 V matching transformer

- Suitable for distributed public-address systems

- Frequency response optimized for speech and music

- Wide acoustic coverage at 1 kHz

- Integrated circular metal front grille

- Neutral and discreet white finish

- Blends into virtually any interior

- Flush mounting inside a ceiling cavity

- Two integrated spring-loaded mounting clamps

- Quick installation without visible mounting screws

- Supports ceiling thicknesses from 9 to 25 mm

- Connection through insulated flying leads

- Transformer power selection through color-coded wires

- Endurance tested for 100 hours at rated power

- Handles twice rated power for short periods

- Complies with EN 60065 safety requirements

- Compatible with Bosch LBC 3080/01 fire dome

- Compatible with Bosch LBC 3080/11 fire dome

- Compatible with Bosch LBC 1256/00 EVAC adapter

- Protective accessories sold separately

- Circular ceiling-cutout template included

Specifications

- Brand: Bosch

- Model: LHM0606/10

- Product number: F.01U.513.891

- Product range: LHM 0606/xx

- Product type: Full-range ceiling loudspeaker

- Driver configuration: Dual cone

- Application: Speech and music

- Maximum power: 9 W

- Rated power: 6 W

- Selectable power taps: 6 W, 3 W and 1.5 W

- Rated input voltage: 100 V

- Rated impedance at 6 W: 1,667 Ω

- SPL at 6 W/1 m and 1 kHz: 92 dB

- Sensitivity at 1 W/1 m and 1 kHz: 84 dB

- Frequency range at -10 dB: 80 Hz to 18 kHz

- Coverage at 1 kHz: 175° × 175°

- Coverage at 4 kHz: 55° × 55°

- Nominal loudspeaker diameter: 152.4 mm

- Nominal loudspeaker diameter: 6 inches

- Matching transformer: Integrated

- Connection type: Insulated flying leads

- Outside diameter: 199 mm

- Maximum depth: 70.5 mm

- Ceiling cutout diameter: 165 mm

- Cutout tolerance: Up to +5 mm

- Compatible ceiling thickness: 9 to 25 mm

- Mounting system: Two integrated spring clamps

- Grille material: Metal

- Color: White

- Color reference: RAL 9010

- Net weight: 620 g

- Operating temperature: -25 °C to +55 °C

- Storage temperature: -40 °C to +70 °C

- Relative humidity: Below 95%, non-condensing

- Safety standard: EN 60065

- Power-handling standard: IEC 268-5

- Installation type: Flush ceiling mounting

- Supplied loudspeaker quantity: 1

- Supplied 165 mm cutout template: 1

- Fire dome included: No

- EVAC adapter included: No
