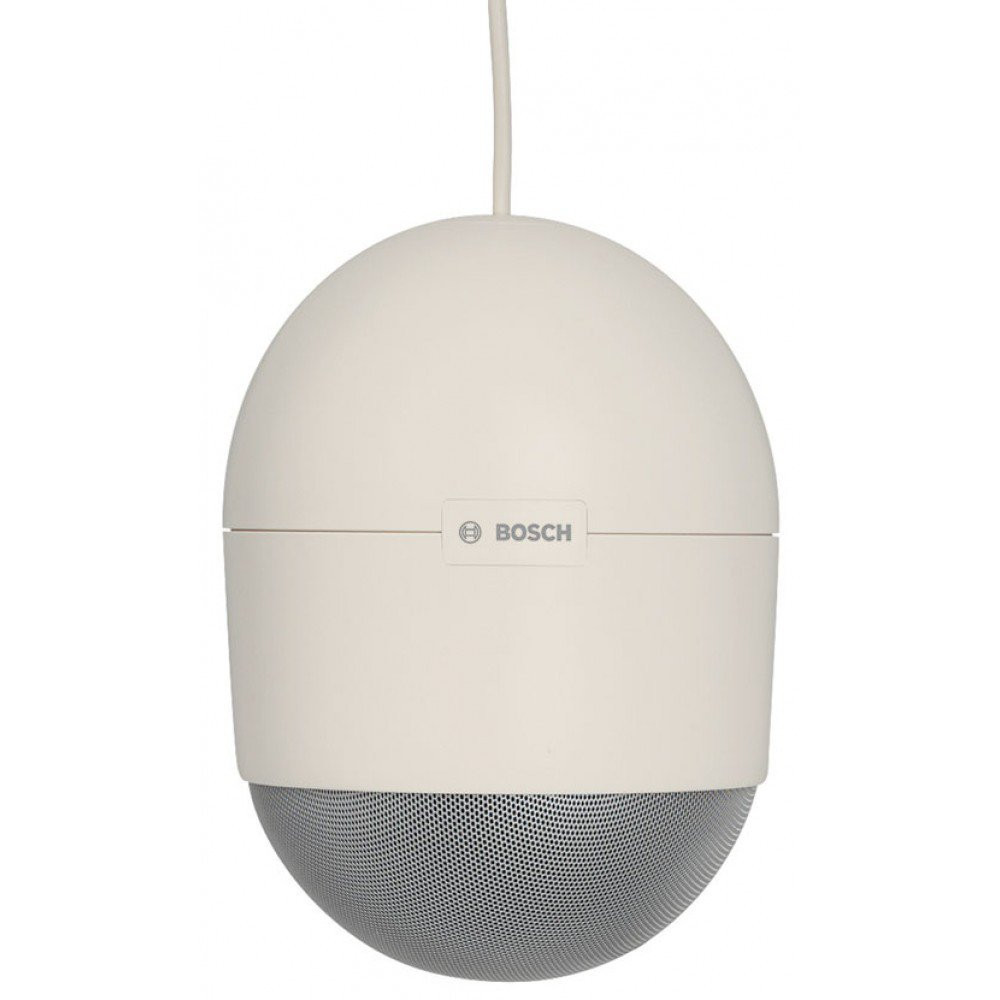

Bosch - LP1-UC10E-1, 10 W Unidirectional Sound Projector

Features

- Powerful 10 W unidirectional sound projector

- Superb speech and music reproduction

- Natural sound reproduction with excellent bass response

- Suitable for public address and voice evacuation systems

- Designed for indoor and outdoor applications

- Suitable for wall or ceiling mounting

- Versatile bracket with horizontal and vertical adjustment

- Adjustable direction can be securely locked

- Mounting plate designed for easy installation

- Safety cord provision for temporary suspension during installation

- Cover plate protects screws and electrical wiring

- Two cable or 16 mm conduit entries

- Suitable for loop-through cabling

- Multiple selectable power settings

- Available power settings: 10, 5, 2.5 and 1.25 W

- Power selection through color-coded wiring

- Integrated three-pole ceramic terminal block

- Integrated thermal fuse

- Heat-resistant high-temperature wiring

- Built-in circuit protection in the event of fire

- Pre-wired for an optional external line or loudspeaker supervision board

- Robust high-impact ABS enclosure

- Self-extinguishing ABS components according to UL 94 V-0

- Durable metal protective grilles

- IP65 water and dust protection

- EN 54-24 certified for voice alarm applications

- Compliant with BS 5839-8 and EN 60849

- Compliant with EN 60065 safety requirements

- White design suitable for modern and traditional environments

- Ideal for schools, shopping centers, halls, stations, warehouses and public buildings

Specifications

- Brand: Bosch

- Model: LP1-UC10E-1

- Product type: Unidirectional sound projector

- Application: Public address and voice evacuation

- Maximum power: 15 W

- Rated power: 10 W

- Power settings: 10 / 5 / 2.5 / 1.25 W

- Rated voltage: 100 V

- Rated impedance: 1,000 ohms

- Sound pressure level at 10 W, 1 kHz, 1 m: 96 dB SPL

- Sensitivity at 1 W, 1 kHz, 1 m: 86 dB SPL

- Effective frequency range: 75 Hz to 20 kHz

- Opening angle at 1 kHz: 220°

- Opening angle at 4 kHz: 65°

- Connector: Three-pole screw terminal

- Cable entries: Two 16 mm entries

- Wiring type: Suitable for loop-through cabling

- Installation: Wall or ceiling mounting

- Orientation: Adjustable horizontally and vertically

- Dimensions diameter × length: 185 × 300 mm

- Weight: 3 kg

- Enclosure material: ABS

- Grille material: Metal

- Color: White RAL 9010

- Protection rating: IP65

- Operating temperature: -25 °C to +55 °C

- Storage and transport temperature: -40 °C to +70 °C

- Relative humidity: Below 95%

- EN 54-24 classification: Type B

- Certification: EN 54-24

- Compliance: BS 5839-8, EN 60849 and EN 60065

- Self-extinguishing material: UL 94 V-0 compliant
