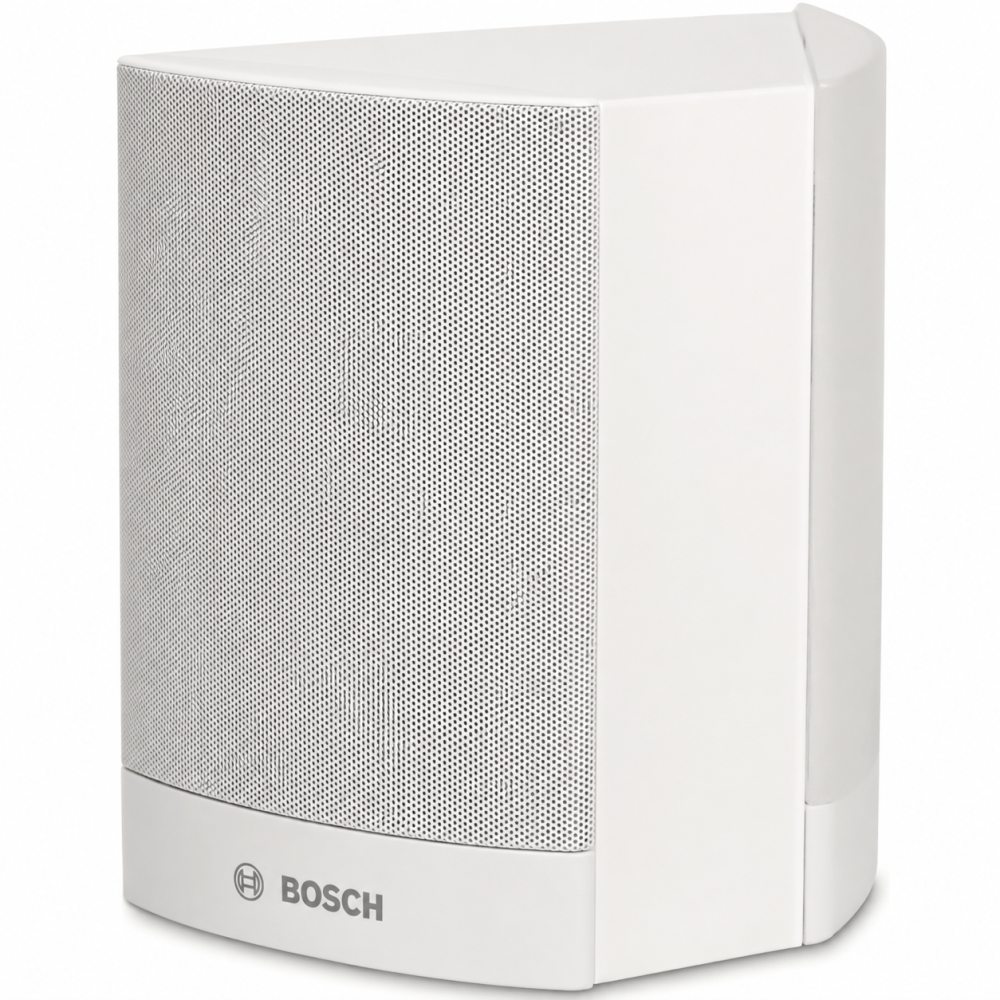

Bosch - LB1-UW06-L1, 6 W White Wall-Mount Cabinet Loudspeaker

Features

- Professional compact wall-mount loudspeaker

- 6 W rated power handling

- Maximum power of 9 W

- Compatible with 70 V systems

- Compatible with 100 V systems

- Integrated transformer for distributed audio

- Selectable 6 W power tap

- Selectable 3 W power tap

- Selectable 1.5 W power tap

- Selectable 0.75 W power tap

- Excellent speech intelligibility

- Suitable for background music

- 185 Hz to 17 kHz frequency response

- 99 dB SPL at 6 W / 1 m

- 91 dB sensitivity at 1 W / 1 m

- Wide horizontal sound coverage

- 195° horizontal coverage at 1 kHz

- 82° horizontal coverage at 4 kHz

- Rugged MDF enclosure

- Fine-woven cloth front panel

- Discreet professional white finish

- Three rear keyhole mounting points

- Fast and simple wall installation

- Dual 5-pole push-in terminal blocks

- Designed for indoor installations

- Ideal for offices, retail, schools and public buildings

Specifications

- Brand: Bosch

- Model: LB1-UW06-L1

- Type: Compact wall-mount cabinet loudspeaker

- Application: Indoor public address

- Color: White

- Cabinet color: Matches RAL 9010

- Front color: Matches RAL 7044

- Rated power: 6 W

- Maximum power: 9 W

- Power taps: 6 / 3 / 1.5 / 0.75 W

- SPL at 6 W / 1 W: 99 / 91 dB at 1 kHz, 1 m

- SPL at 6 W / 1 W: 100 / 92 dB at 4 kHz, 1 m

- Effective frequency range (-10 dB): 185 Hz – 17 kHz

- Horizontal opening angle at 1 kHz: 195°

- Horizontal opening angle at 4 kHz: 82°

- Rated input voltages: 70 V / 100 V

- Rated impedance: 835 / 1667 Ω

- Connectors: 2 × 5-pole push-in terminal blocks

- Enclosure material: MDF

- Front panel: Fine-woven cloth

- Mounting: Wall mount

- Mounting points: 3 rear keyholes

- Dimensions (H × W × D): 240 × 151 × 141/119 mm

- Net weight: 1.49 kg

- Operating temperature: -25 °C to +55 °C

- Storage temperature: -40 °C to +70 °C

- Relative humidity: <95 %

- Acoustic performance standard: IEC 60268-5
