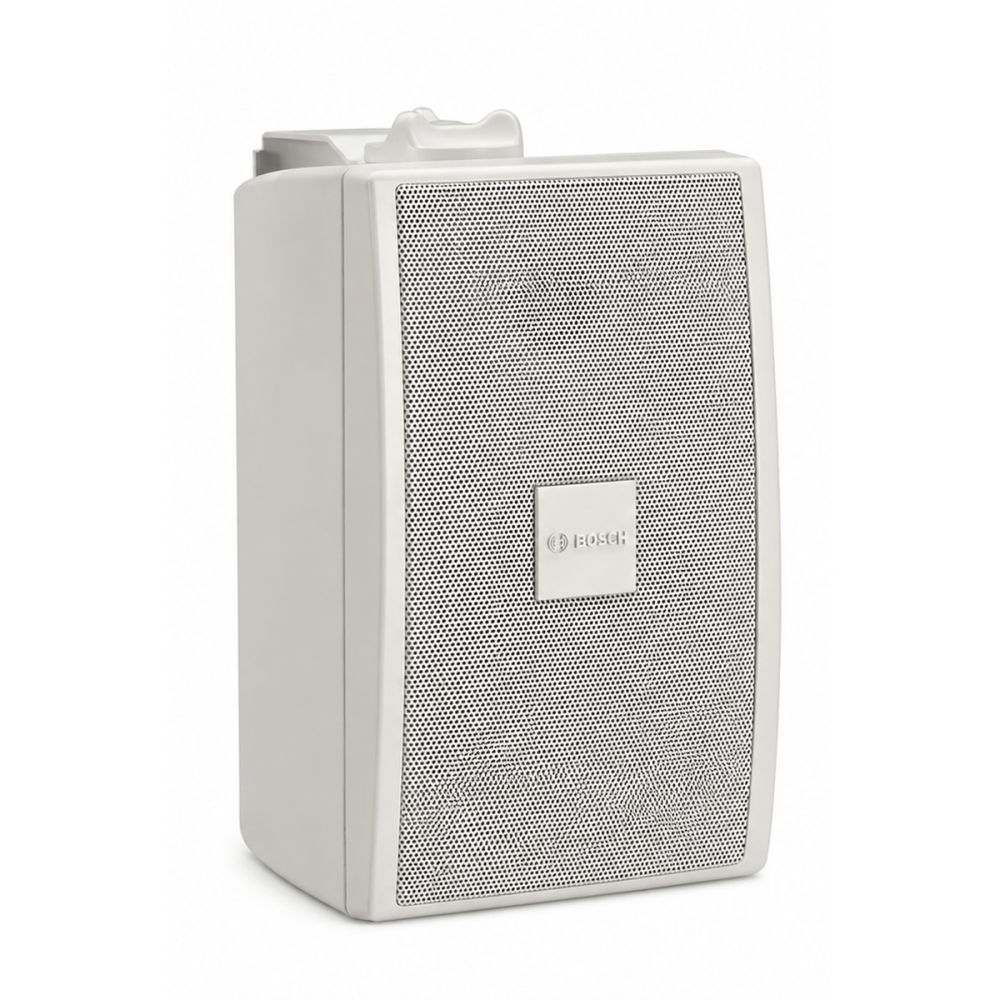

Bosch - LB2-UC30-L1, 30 W White 2-Way Cabinet Loudspeaker

Features

- Professional two-way cabinet loudspeaker

- 30 W rated power handling

- Maximum power of 45 W

- High-quality 5-inch woofer

- 0.51-inch dome tweeter

- Excellent speech reproduction

- Clear and balanced music reproduction

- Frequency response extending to 19 kHz

- 90 dB sensitivity at 1 W / 1 m

- 105 dB SPL at rated power

- Supports 8 Ω low-impedance operation

- Compatible with 70 V systems

- Compatible with 100 V systems

- Integrated transformer for distributed audio

- Selectable 30 W power tap

- Selectable 15 W power tap

- Selectable 7.5 W power tap

- Selectable 3.75 W power tap

- Wide horizontal sound coverage

- 166° horizontal coverage at 1 kHz

- 83° horizontal coverage at 4 kHz

- Adjustable wall-mount bracket included

- Simple professional wall installation

- Integrated 2 m two-wire connection cable

- Compact and rugged ABS enclosure

- Water and dust resistant construction

- Flame-retardant material compliant with UL94 V-0

- Enhanced corrosion-resistant construction

- Professional white RAL 9010 finish

- Suitable for indoor and outdoor applications

- Ideal for restaurants, retail, offices and meeting rooms

Specifications

- Brand: Bosch

- Model: LB2-UC30-L1

- Type: Two-way cabinet loudspeaker

- Description: Premium-sound Cabinet Loudspeaker

- Color: White RAL 9010

- Rated power (PHC): 30 W

- Maximum power: 45 W

- Power taps: 30 / 15 / 7.5 / 3.75 W

- LF transducer: 127 mm (5-inch) woofer

- HF transducer: 13 mm (0.51-inch) dome tweeter

- Effective frequency range (-10 dB): 100 Hz – 19 kHz

- SPL at rated power / 1 W: 105 / 90 dB at 1 kHz, 1 m

- Rated input voltages: 15.5 / 70 / 100 V

- Rated impedance: 8 / 163 / 333 Ω

- Horizontal opening angle at 1 kHz: 166°

- Horizontal opening angle at 4 kHz: 83°

- Vertical opening angle at 1 kHz: 140°

- Vertical opening angle at 4 kHz: 76°

- Connection: 2 m two-wire cable

- Enclosure material: ABS

- Protection: Water and dust resistant

- Flame-retardant material: UL94 V-0 compliant

- Mounting: Wall mount

- Mounting bracket: Adjustable, included

- Dimensions (H × W × D): 245 × 160 × 131 mm

- Net weight: Approx. 2.4 kg

- Acoustic performance standard: IEC 60268-5
