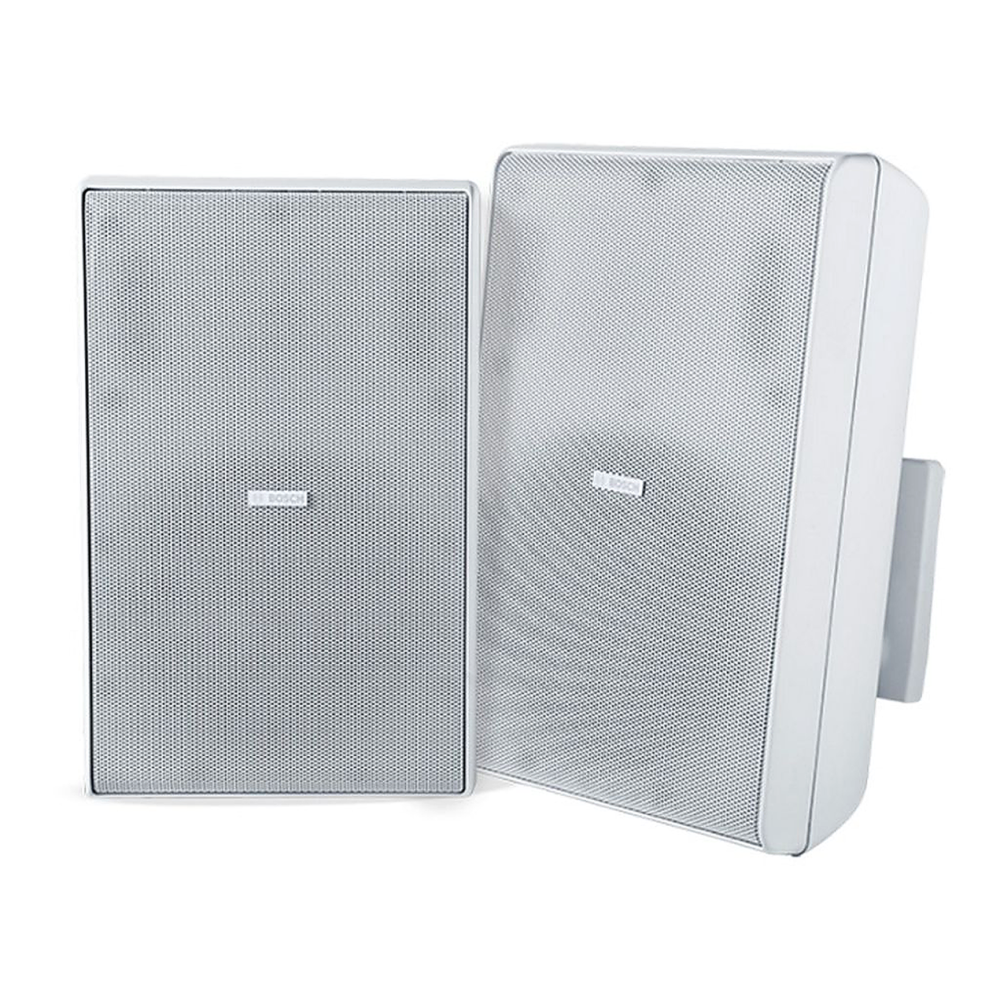

Bosch - LB20-PC60-8L, 8-Inch 2-Way 60 W 70/100 V IP54 White Cabinet Speaker Pair

Bosch - LB20-PC60-8L, 8-Inch 2-Way 60 W 70/100 V IP54 White Cabinet Speaker Pair

Availability:
Bosch
LB20PC608L

- Professional two-way loudspeaker

- Long-excursion 8-inch woofer

- 60 W 70/100 V transformer

- IP54 weather-resistant construction

- Quick Bosch mounting system

Hurry! only 10 items left in stock.
$703.84
Quantity

Add to Compare
Add to Wishlist
Availability product:
Full Stock
  Warranty & Security

Music Plus Warranty: 1-Year Coverage for Manufacturing Defects!

  Shipping Policy

Enjoy fast, reliable, and fully tracked delivery straight to your doorstep!

  Politique retours

Easy returns. Hassle-free exchanges. Total peace of mind.

Bosch - LB20-PC60-8L, 8-Inch 2-Way 60 W 70/100 V IP54 White Cabinet Speaker Pair

Information

The Bosch LB20-PC60-8L is a professional pair of high-performance 8-inch two-way full-range loudspeakers designed for background and foreground music, paging and sound reinforcement. Supporting 70 V, 100 V and 8 Ω systems, it is suitable for restaurants, hotels, retail spaces, fitness clubs, leisure venues and a wide range of indoor and outdoor installations thanks to its IP54 weather-resistant construction.

Features

- Professional two-way full-range loudspeaker

- Long-excursion 8-inch (203 mm) woofer

- 1-inch (25 mm) high-frequency driver

- Integrated 60 W 70/100 V transformer

- 8 Ω low-impedance bypass operation

- Extended low-frequency performance down to 50 Hz

- 90 W power handling

- Maximum SPL of 110 dB

- Peak SPL up to 116 dB

- High 90 dB sensitivity

- Wide and uniform sound coverage

- IP54 weather-resistant construction

- Suitable for indoor and outdoor installations

- Fire-rated ABS plastic enclosure

- Enhanced resistance against sun, salt and moisture

- Innovative Bosch mounting system included

- Quick, simple and reliable installation

- Up to 90° horizontal mounting adjustment

- Up to 45° vertical mounting adjustment

- Suitable for wall or ceiling mounting

- Rear-mounted power selection switch

- Locking 4-pin Euroblock connection

- Connections for daisy-chaining additional loudspeakers

- White finish for discreet installations

- Supplied as a pair

- Ideal for restaurants, bars, hotels, retail stores, fitness clubs and leisure venues

Specifications

- Brand: Bosch

- Model: LB20-PC60-8L

- Product number: F.01U.331.741

- Type: Two-way full-range surface-mount loudspeaker

- Configuration: 2-way

- LF driver: 8-inch (203 mm)

- HF driver: 1-inch (25 mm)

- Frequency response (-3 dB): 70 Hz - 20 kHz

- Frequency response (-10 dB): 50 Hz - 20 kHz

- Sensitivity: 90 dB

- Maximum calculated SPL: 110 dB

- Peak SPL: 116 dB

- Power handling: 90 W

- Peak power handling: 360 W

- Line transformer: 60 W

- Rated input voltage: 70 V / 100 V

- 70 V taps: 7.5 W / 15 W / 30 W / 60 W / 8 Ω

- 100 V taps: 15 W / 30 W / 60 W / 8 Ω

- Nominal impedance: 8 Ω

- Minimum impedance: 6 Ω

- Recommended high-pass filter: 50 Hz, 24 dB/octave

- Horizontal coverage angle: 90°

- Vertical coverage angle: 90°

- Connectors: Captive screw terminals and locking 4-pin Euroblock

- Maximum wire size: 12 AWG / 2.5 mm²

- IP rating: IP54

- Enclosure material: Fire-rated ABS plastic

- Color: White RAL 9003

- Mounting: Wall or ceiling

- Horizontal mounting adjustment: Up to 90°

- Vertical mounting adjustment: Up to 45°

- Dimensions (H × W × D): 390 × 250 × 224 mm

- Net weight: 5.8 kg per speaker

- Shipping weight: 14.8 kg per pair

- Packaged quantity: 2 loudspeakers

: LB20PC608L
