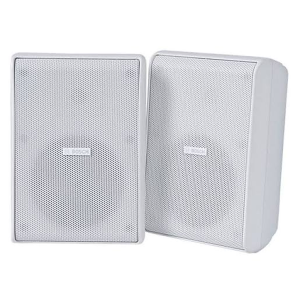

Bosch - LB20-PC60EW-5L, 5.25-Inch 2-Way 60 W 70/100 V IP65 White Cabinet Speaker Pair

Features

- Professional two-way full-range surface-mount loudspeaker

- Long-throw 5.25-inch (133 mm) low-frequency woofer

- Weather-resistant polypropylene woofer cone

- 0.75-inch (20 mm) high-frequency driver

- Integrated waveguide for wide and uniform coverage

- Integrated 60 W 70/100 V line transformer

- 8 Ω low-impedance bypass operation

- Extended low-frequency performance down to 55 Hz

- 75 W continuous power handling

- Up to 300 W peak power handling

- Maximum calculated SPL of 108 dB

- Peak SPL up to 114 dB

- 89 dB sensitivity

- Wide 90° horizontal sound coverage

- Wide 90° vertical sound coverage

- IP65 weather-resistant construction

- Resistant to sun, salt, moisture and chlorine

- Marine-grade aluminum grille

- UL 94-5VB fire-rated ABS enclosure

- Versatile U-Bracket mounting system included

- Quick and flexible wall installation

- Rear-mounted transformer tap selector

- Detachable 4-pin Euroblock connector

- IP65 weather cover for input panel

- Suitable for voice evacuation systems

- EN 54-24 certified

- UL1480 certified

- Discreet white finish

- Supplied as a pair

- Ideal for restaurants, hotels, retail, patios, fitness clubs and leisure venues

Specifications

- Brand: Bosch

- Model: LB20-PC60EW-5L

- Product number: F.01U.331.737

- Type: Two-way full-range surface-mount loudspeaker

- Configuration: 2-way

- LF driver: 5.25-inch (133 mm)

- LF cone material: Weather-resistant polypropylene

- LF voice coil: 1-inch (25 mm)

- HF driver: 0.75-inch (20 mm)

- HF type: Ferrofluid-cooled driver with integrated waveguide

- Frequency response (-3 dB): 90 Hz - 20 kHz

- Frequency response (-10 dB): 55 Hz - 20 kHz

- Sensitivity: 89 dB

- Maximum calculated SPL: 108 dB

- Peak SPL: 114 dB

- Power handling: 75 W

- Peak power handling: 300 W

- Line transformer: 60 W

- Rated input voltage: 70 V / 100 V

- 70 V taps: 7.5 W / 15 W / 30 W / 60 W / 8 Ω

- 100 V taps: 15 W / 30 W / 60 W / 8 Ω

- Low-impedance operation: Yes

- Nominal impedance: 8 Ω

- Minimum impedance: 6.5 Ω

- Recommended high-pass filter: 60 Hz, 24 dB/octave

- Horizontal coverage angle: 90°

- Vertical coverage angle: 90°

- Connector: Detachable 4-pin Euroblock

- IP rating: IP65

- Enclosure material: UL 94-5VB fire-rated ABS

- Grille material: Marine-grade aluminum

- Color: White RAL 9003

- Mounting hardware: U-Bracket included

- Certifications: EN 54-24 and UL1480

- Dimensions (H × W × D): 255 × 180 × 150 mm

- Net weight: 3.2 kg per speaker

- Shipping weight: 9.5 kg per pair

- Included accessories: U-Bracket, 5 mm Allen wrench and input cover

- Packaged quantity: 2 loudspeakers
