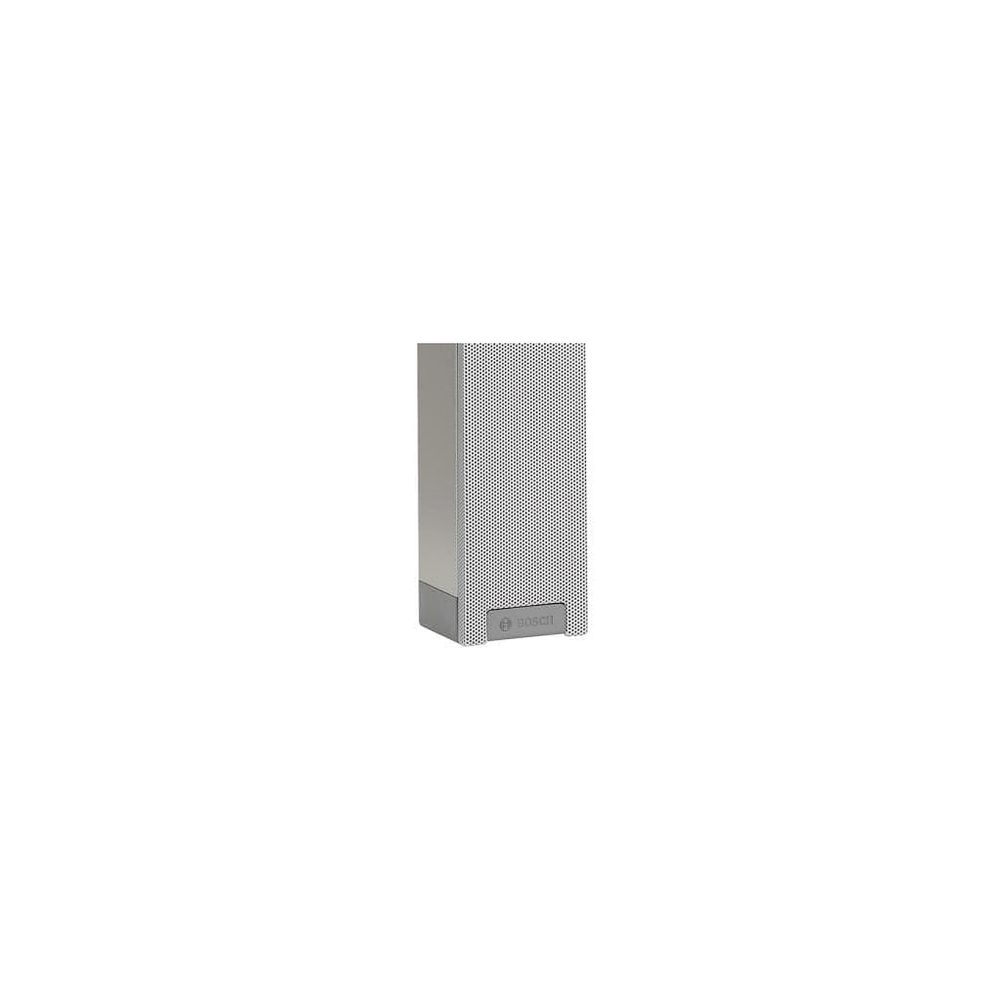

Bosch - LBC3200/00, 30 W 100 V EN 54-24 XLA Line Array Loudspeaker

Features

- Professional 30 W line array loudspeaker

- XLA 3200 eXtended Listening Area technology

- Extended listening area coverage

- Excellent speech intelligibility

- Clear and natural music reproduction

- Uniform sound distribution throughout the room

- Highly optimized acoustic directivity

- Strong suppression of vertical side lobes

- Reduced risk of acoustic feedback

- High-quality 2-inch loudspeaker drivers

- Frequency response extending to 18 kHz

- 30 W rated power

- 45 W maximum power

- Designed for 100 V line systems

- Selectable 30 W / 15 W / 7.5 W power taps

- 91 dB sensitivity

- Sound pressure level up to 106 dB SPL at 1 m

- Wide horizontal sound coverage

- Controlled vertical directivity

- Exceptionally slim 80 mm wide enclosure

- Discreet design for architectural integration

- Robust extruded aluminum enclosure

- Three-way ceramic terminal block

- Screw terminal connections

- Suitable for loop-through wiring

- Integrated thermal fuse

- Heat-resistant high-temperature internal wiring

- Maintains circuit integrity in case of fire

- Designed for voice alarm systems

- EN 54-24 certified

- IK07 impact resistance

- IP21C water and dust protection

- Swivel wall-mounting bracket included

- Bracket adjustable in two planes

- Precise loudspeaker positioning

- Compatible with Bosch LBC1259/01 floor stand

- M10 threaded floor stand mounting

- Ideal for conferences, meetings, showrooms and canteens

Specifications

- Brand: Bosch

- Model: LBC3200/00

- Product number: F.01U.505.999

- Series: XLA 3200

- Type: Line array loudspeaker

- Application: Indoor public address and voice alarm

- Maximum power: 45 W

- Rated power: 30 W

- Power taps: 30 W / 15 W / 7.5 W

- Rated input voltage: 100 V

- Rated impedance: 333 Ω

- Sensitivity at 1 W / 1 m: 91 dB SPL

- EN 54-24 sensitivity at 1 W / 4 m: 76 dB SPL

- SPL at rated power / 1 m: 106 dB SPL

- EN 54-24 SPL at rated power / 4 m: 91 dB SPL

- Effective frequency range (-10 dB): 190 Hz - 18 kHz

- Horizontal opening angle at 1 kHz: 220°

- Horizontal opening angle at 4 kHz: 130°

- Vertical opening angle at 1 kHz: 70°

- Vertical opening angle at 4 kHz: 18°

- Loudspeaker drivers: High-quality 2-inch drivers

- Connector: Three-way ceramic screw terminal block

- Loop-through wiring: Yes

- Thermal fuse: Yes

- Enclosure material: Extruded aluminum

- Housing color: Pearl light gray RAL 9022

- Grille color: White aluminum RAL 9006

- Top and bottom color: Mouse gray RAL 7005

- IP rating: IP21C

- Impact resistance: IK07

- Certification: EN 54-24

- EN 54-24 classification: Type A

- Mounting: Wall or floor stand

- Wall bracket: Swivel bracket included

- Compatible floor stand: Bosch LBC1259/01

- Floor stand thread: M10

- Dimensions (H × W × D): 600 × 80 × 90 mm

- Weight: 3 kg

- Operating temperature: -25 °C to +55 °C

- Storage temperature: -40 °C to +70 °C

- Transportation temperature: -40 °C to +70 °C

- Operating relative humidity: Less than 95%, non-condensing

- Application environment: Indoor
