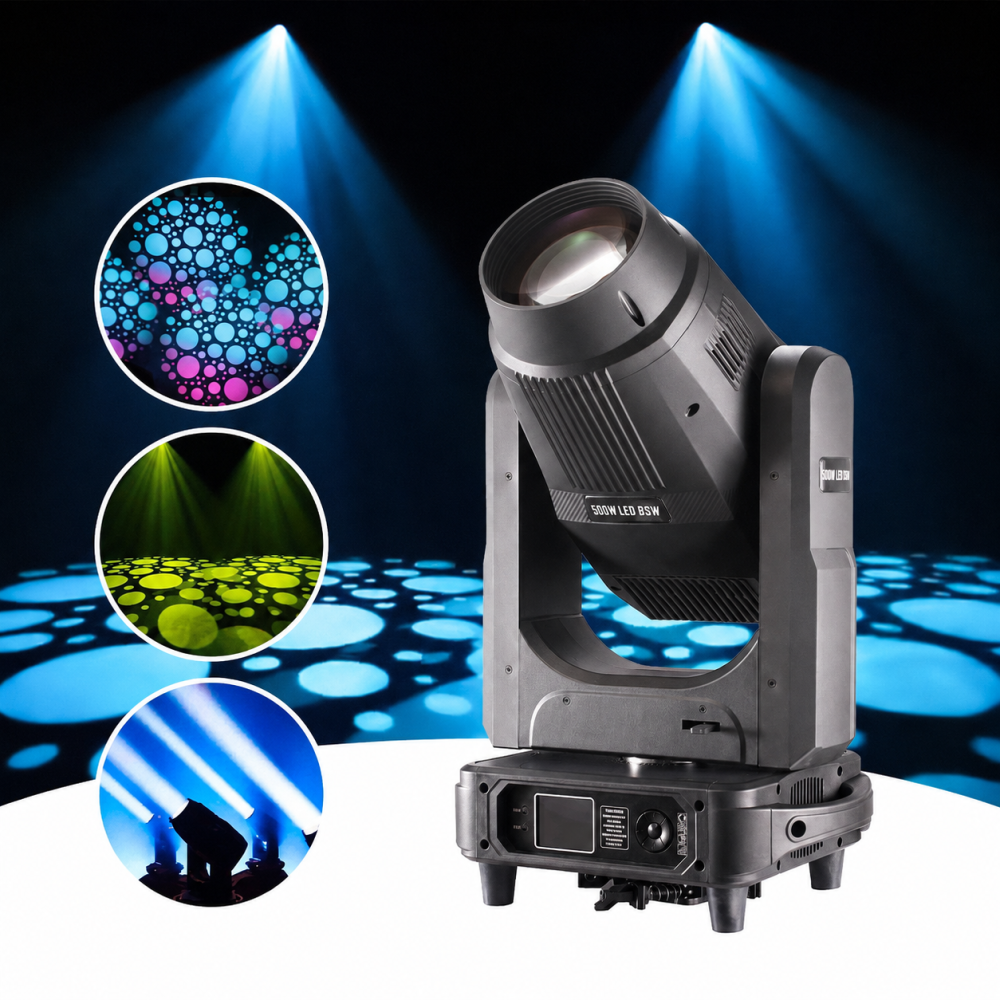

Top Lighting - GPB-500, 500W 3-in-1 LED Beam, Spot and Wash Moving Head

Features

- Professional 3-in-1 LED moving head

- Beam, Spot and Wash functions

- Powerful 500W white LED engine

- High light output for large stages

- Linear CMY color mixing system

- Linear CTO color temperature correction

- Independent color wheel with white position

- Split-color and rainbow effects

- Wide-range motorized linear zoom

- Motorized linear focus adjustment

- Smooth 0 to 100% linear dimming

- Variable-speed electronic strobe

- Pulse and random strobe effects

- Fixed gobo wheel with open position

- Interchangeable rotating gobo wheel

- Bidirectional gobo rotation

- Variable-speed gobo shake effects

- Rotating prism for multiple-beam effects

- Frost filter for soft Wash effects

- Motorized iris with linear adjustment

- High-precision Pan and Tilt movement

- 16-bit movement resolution

- Automatic position correction

- Professional DMX512 control

- DMX, automatic, sound and manual modes

- Built-in programs for standalone operation

- Control display for easy configuration

- Active cooling with thermal protection

- Designed for concerts, theatres, clubs, festivals, TV studios and events

Specifications

- Brand: Top Lighting

- Model: GPB-500

- Fixture type: 3-in-1 hybrid LED moving head

- Functions: Beam, Spot and Wash

- Light source: 500W white LED

- Color temperature: 6000K

- Claimed luminous output: 19,000 lumens

- LED lifespan: more than 30,000 hours

- Maximum power consumption: 650W

- Input voltage: AC 100-240V, 50/60Hz

- Motorized zoom range: 3.5° to 50°

- Focus: motorized linear focus

- Dimming: linear 0 to 100%

- Strobe frequency: 0 to 20Hz

- Color mixing: linear CMY system

- CTO correction: approximately 2700 to 6500K

- Color wheel: 9 colors plus white

- Fixed gobos: 7 metal gobos plus open

- Rotating gobos: 6 glass gobos plus open

- Prism: rotating 3-facet circular prism

- Frost filter: included

- Motorized iris: linear adjustment from 5 to 100%

- Pan movement: 540°

- Tilt movement: 270°

- Pan/Tilt resolution: 16-bit

- Control protocol: DMX512

- DMX channels: 23 channels

- Control modes: DMX512, automatic, sound and manual

- DMX input and output: XLR connectors

- Protection rating: IP20, indoor use

- Dimensions: approximately 380 × 270 × 650mm

- Net weight: approximately 22kg
