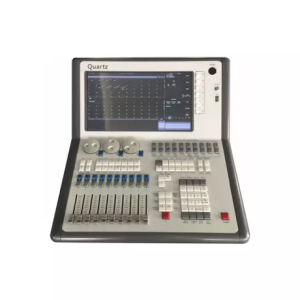

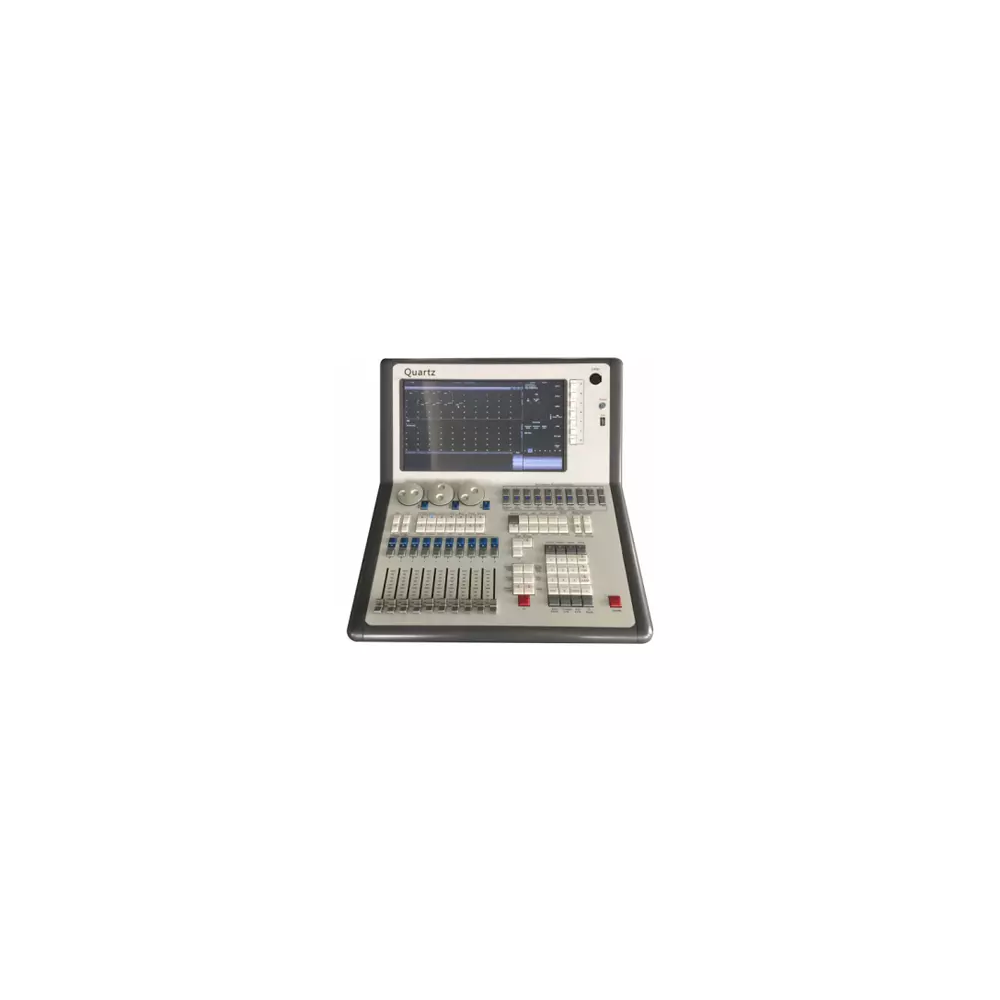

Top Lighting - GM095, 4,096-Channel Professional Quartz DMX Controller

Features

- Professional DMX stage-lighting control console

- Integrated control of 4,096 DMX channels

- Eight DMX512 outputs with 512 channels each

- Network expansion supporting up to 64 DMX outputs

- Compatible with TNP network expansion systems

- Support for the Art-Net protocol

- Support for Titan-Net networking

- Compatible with the Streaming ACN protocol

- Intel Core processor for show-program processing

- Eight gigabytes of system memory

- 120 GB solid-state storage drive

- Integrated UPS backup power system

- High-brightness 14.1-inch touch screen

- Touch interface for efficient lighting programming

- Ten mechanical page-selectable playback faders

- Twenty customizable macro buttons

- Quick access to frequently used show functions

- Management of scenes, sequences, effects and playbacks

- Gigabit network connection for DMX expansion

- Integrated headphone output

- Compatible with TITAN-system show files

- Show-file sharing with compatible control consoles

- Supports an optional Titan Fader Wing

- Adds twenty playback faders through the optional wing

- Adds thirty customizable macro buttons

- USB-powered fader-wing connection

- Compact format for mobile productions

- Suitable for fixed and touring installations

- Designed for concerts, festivals and live shows

- Suitable for theatres, clubs and multipurpose venues

- Ideal for studios, auditoriums and professional events

Specifications

- Brand: Stage Lighting

- Model: GM095

- Product name: Quartz DMX Controller

- Product type: Professional DMX lighting controller

- Processor: Intel Core

- System memory: 8 GB

- Internal storage: 120 GB SSD

- Total DMX channels: 4,096

- Integrated DMX outputs: 8

- Capacity per output: 512 DMX channels

- Maximum network expansion: Up to 64 DMX outputs

- Network protocols: Art-Net, Titan-Net and Streaming ACN

- Expansion compatibility: TNP

- Network interface: Gigabit Ethernet

- Main display: High-brightness touch screen

- Display size: 14.1 inches

- Number of playback faders: 10

- Fader type: Mechanical page-selectable faders

- Number of macro buttons: 20

- Compatible extension: Titan Fader Wing

- Additional wing faders: 20

- Additional wing macro buttons: 30

- Fader-wing power supply: USB

- Headphone output: Yes

- Integrated backup power: UPS

- Show-file compatibility: TITAN-system show files

- Carton package dimensions: 590 × 540 × 300 mm

- Listed weight with carton packaging: 14 kg

- Flight-case dimensions: 590 × 540 × 355 mm

- Listed weight with flight case: 23 kg

- Mains power requirements: Check the product rating label

- Included accessories: Check the supplied package
