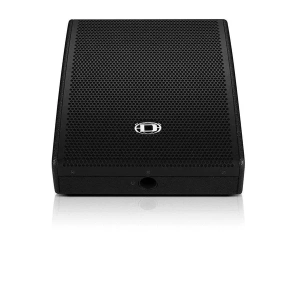

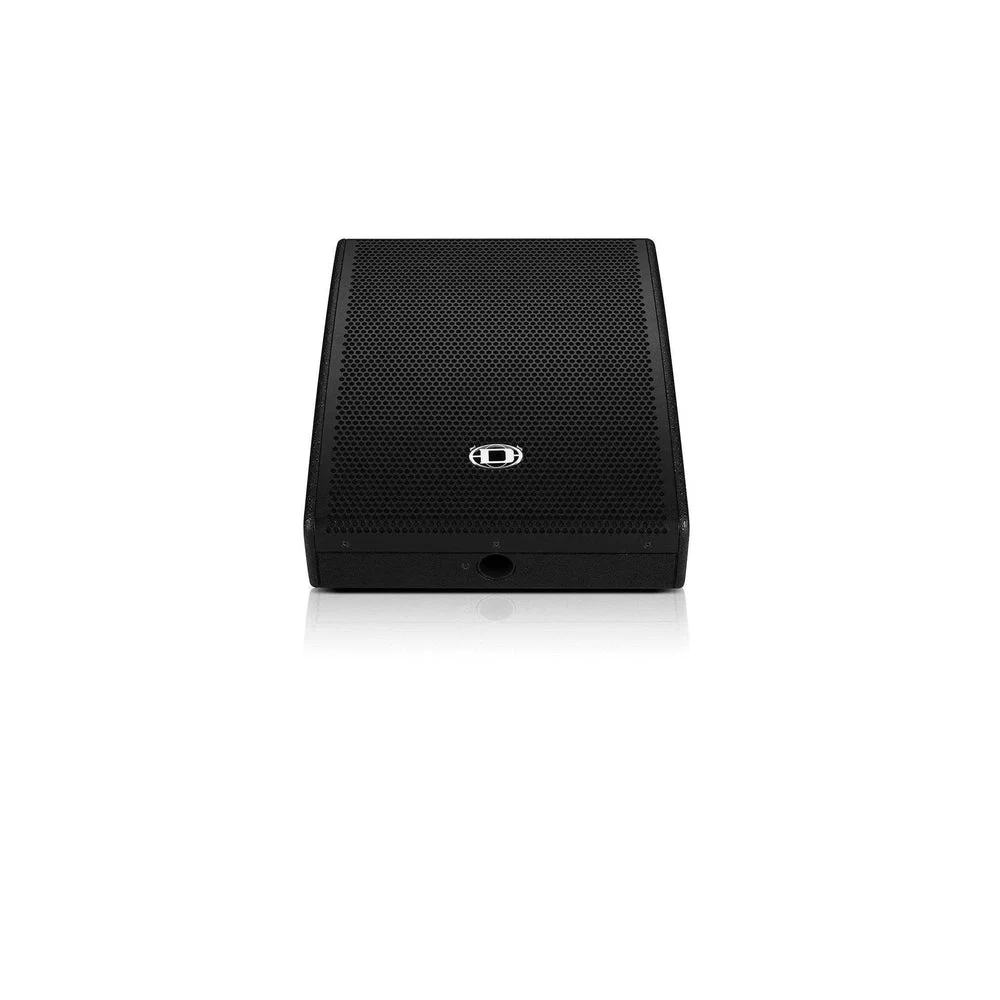

Dynacord - DC-AXM12A, 12-Inch 520 W Active Coaxial Stage Monitor with DSP

Features

- Professional 12-inch powered stage monitor

- 12-inch / 1.75-inch two-way coaxial transducer

- Dynacord DCX 12300 coaxial loudspeaker

- Lightweight neodymium high-frequency compression driver

- Maximum total dynamic power of 520 W IHF-A

- 360 W IHF-A low-frequency amplifier

- 160 W IHF-A mid-high frequency amplifier

- Maximum sound pressure level of 128 dB

- Extended 50 Hz to 20 kHz frequency response

- 90° × 90° conical acoustic coverage

- Integrated digital DSP processing

- Factory presets optimized for different applications

- Five programmable user preset memories

- Integrated high and low shelving EQ

- Parametric midrange equalizer

- Adjustable low-cut filter

- Tunable anti-feedback notch filter

- Integrated digital delay up to 100 meters

- Integrated three-channel mixer

- Two XLR/Jack combo Mic/Line inputs

- Switchable +15 V phantom power

- Stereo RCA auxiliary input

- Dedicated XLR THRU output

- XLR MIX OUT output

- Backlit LCD display for quick configuration

- Intuitive single Push-Encoder operation

- Silent passive cooling system

- Durable 15 mm birch plywood enclosure

- Heavy-duty structured lacquer finish

- Solid steel front grille

- Optimized 33° stage monitor angle

- Integrated pole mount

- Handle and recessed grips for easy transport

- Compact design ideal for small stages

- Suitable as monitor, main PA, fill or delay speaker

- Can be combined with powered subwoofer for compact three-way system

Specifications

- Brand: Dynacord

- Model: DC-AXM12A / AXM 12A

- Type: Powered two-way coaxial stage monitor

- Transducer: DCX 12300 12-inch / 1.75-inch coaxial

- Maximum total output capability: 520 W IHF-A

- Low amplifier power: 360 W IHF-A / 260 W RMS

- Mid-high amplifier power: 160 W IHF-A / 75 W RMS

- Maximum SPL at 1 m: 128 dB

- Frequency range (-10 dB): 50 Hz – 20 kHz

- Nominal coverage: 90° horizontal × 90° vertical

- Crossover frequency: 1.6 kHz

- Mic/Line inputs: 2 × XLR/Jack combo

- Auxiliary input: 1 × Stereo RCA

- Phantom power: Switchable +15 V

- Outputs: 1 × XLR THRU, 1 × XLR MIX OUT

- Low shelving EQ: ±10 dB at 60 Hz

- Parametric mid EQ: ±10 dB, 70 Hz – 12 kHz

- High shelving EQ: ±10 dB at 12 kHz

- Low-cut filter: 50 – 200 Hz, 12 dB/octave

- Feedback filter: 70 Hz – 10 kHz, Notch, -10 dB

- Master delay: 0 – 100 m

- Presets: Factory presets plus 5 user settings

- Display: Blue backlit dimmable LCD

- AC power input: 100 – 240 V AC, 50/60 Hz

- AC power consumption: 0.8 – 0.5 A

- Cooling: Passive

- Safety class: Class I

- Operating temperature: 0 °C to 40 °C

- Enclosure: 15 mm birch plywood

- Grille: Heavy-duty steel

- Monitor angle: 33°

- Dimensions (W × H × D): 414 × 339 × 484 mm

- Weight: 14.9 kg
