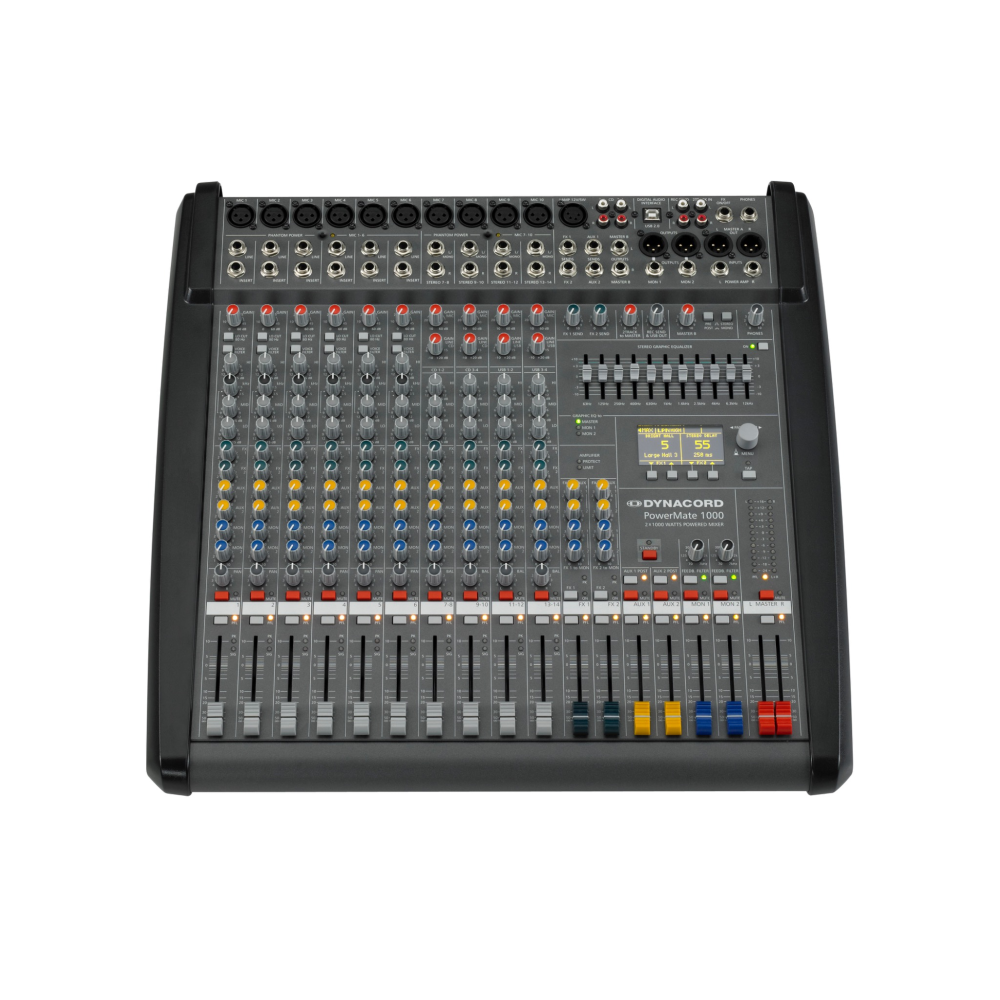

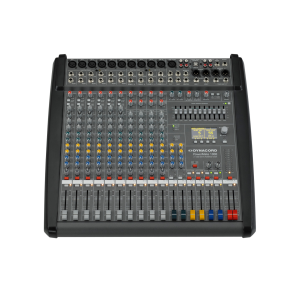

Dynacord - PM1000-3-UNIV, 10-Channel PowerMate Powered Mixer with 2 x 1000 W

Features

- Professional PowerMate powered mixing console

- Ten versatile audio-input channels

- Six mono microphone or line channels

- Four microphone or stereo-line channels

- Ten low-noise discrete microphone preamplifiers

- Balanced XLR microphone inputs

- Line inputs for instruments and audio sources

- Group-switchable 48 V phantom power

- Switchable low-cut filters on mono channels

- Switchable Voice filter for enhanced speech intelligibility

- Three-band equalizer on every input channel

- Sweepable midrange control on mono channels

- Fixed midrange control on stereo channels

- Professional channel faders for precise level control

- PFL buttons for pre-fader monitoring

- Individual channel-mute functions

- Six auxiliary buses for flexible routing

- Two pre-fader monitor sends

- Two post-fader effects sends

- Two switchable pre-fader or post-fader auxiliary sends

- Two independent stereo multi-effects processors

- 24/48-bit digital effects processing

- One hundred integrated factory effects presets

- Twenty editable user-preset memories

- Tap Delay function for tempo adjustment

- Effects control through an optional footswitch

- Effects control through the MIDI interface

- High-contrast OLED display

- 128 x 64-pixel graphical display

- Eleven-band stereo graphic equalizer

- Equalizer assignable to master or monitor outputs

- Integrated feedback filters for Monitor 1 and Monitor 2

- Adjustable feedback-filter frequency

- Switchable Dynacord LPN loudspeaker processing

- Integrated high-output stereo power amplifier

- Efficient digital Class D output stage

- 2 x 1000 W output at 4 Ω

- Lightweight high-efficiency switch-mode power supply

- Automatic 100 to 240 VAC operation

- Adjustable long-term RMS output limiter

- Configurable protection for connected loudspeakers

- Integrated amplifier audio limiters

- Short-circuit protection

- High-temperature protection

- DC and high-frequency protection

- Peak-current limiting protection

- Back-EMF protection

- Power-on delay protection

- Continuously variable-speed cooling fans

- Integrated USB 2.0 digital audio interface

- Four simultaneous USB recording channels

- Four simultaneous USB playback channels

- Professional 24-bit digital conversion

- Maximum 96 kHz sampling rate

- Functions as an audio interface for computers

- MIDI interface with five-pin input and output

- Left and right Master A outputs

- Stereo or mono Master B output

- Pre-fader or post-fader Master B operation

- Independent Monitor 1 and Monitor 2 outputs

- Dedicated FX and AUX outputs

- Direct inputs for the internal power amplifier

- Internal amplifier can power passive stage monitors

- Supports connection of external audio processors

- RCA 2-Track inputs for external playback sources

- RCA recording outputs

- Headphone output with level control

- Monitoring of the main mix or PFL channels

- Standby mode for muting input channels during breaks

- 2-Track playback remains available during Standby

- Dedicated 12 V gooseneck-lamp output

- Compact and robust road-ready enclosure

- Rugged protective cover for the controls

- Carrying handle integrated into the cover

- Optional 19-inch rack-mounting kit

- Suitable for concerts, events and professional installations

Specifications

- Brand: Dynacord

- Commercial model: PM1000-3-UNIV

- Official CTN: DC-PM1000-3-UNIV

- Order number: F.01U.131.113

- Product range: PowerMate 3

- Product type: Professional powered mixer

- Total number of channels: 10

- Mono Mic/Line channels: 6

- Mic/Stereo-Line channels: 4

- Number of microphone preamplifiers: 10

- Total auxiliary buses: 6

- Pre-fader monitor buses: 2

- Post-fader effects buses: 2

- Switchable pre/post-fader AUX buses: 2

- Amplifier technology: Class D

- Dynamic output at 2.66 Ω: 2 x 1600 W

- Dynamic output at 4 Ω: 2 x 1250 W

- Dynamic output at 8 Ω: 2 x 675 W

- Continuous output at 1 kHz into 2.66 Ω: 2 x 1350 W

- Continuous output at 1 kHz into 4 Ω: 2 x 1150 W

- Continuous output at 1 kHz into 8 Ω: 2 x 650 W

- Dual-channel output at 1 kHz into 2.66 Ω: 2 x 1350 W

- Dual-channel output at 1 kHz into 4 Ω: 2 x 1000 W

- Dual-channel output at 1 kHz into 8 Ω: 2 x 600 W

- Rated 20 Hz to 20 kHz output at 4 Ω: 900 W per channel

- Rated 20 Hz to 20 kHz output at 8 Ω: 450 W per channel

- Maximum output voltage: 74 V RMS

- Microphone input to Master THD: Less than 0.005%

- Power-amplifier input to speaker-output THD: Less than 0.075%

- DIM 30 distortion: Less than 0.05%

- IMD-SMPTE distortion: Less than 0.15%

- Mixer input-to-output frequency response: 15 Hz to 70 kHz

- Input-to-speaker-output frequency response: 20 Hz to 30 kHz

- Amplifier left-to-right crosstalk: Less than -85 dB

- Channel-to-channel crosstalk: Less than -80 dB

- Mute and Standby attenuation: Greater than 100 dB

- Fader and send attenuation: Greater than 85 dB

- Microphone-input CMRR at 1 kHz: Greater than 80 dB

- Microphone-input sensitivity: -74 dBu / 155 µV

- Mono line-input sensitivity: -54 dBu / 1.55 mV

- Stereo line-input sensitivity: -34 dBu / 15.5 mV

- Stereo CD-input sensitivity: -34 dBu / 15.5 mV

- Power-amplifier input sensitivity: +8 dBu / 1.95 V

- Maximum microphone-input level: +21 dBu

- Maximum mono line-input level: +41 dBu

- Maximum stereo line-input level: +30 dBu

- Maximum level of other inputs: +22 dBu

- Maximum level of other outputs: +22 dBu

- Microphone-input impedance: 2 kΩ

- Insert-return impedance: 3.3 kΩ

- 2-Track and CD-input impedance: 10 kΩ

- Other input impedance: Greater than 15 kΩ

- Headphone-output impedance: 47 Ω

- Unbalanced output impedance: 75 Ω

- Balanced output impedance: 150 Ω

- Equivalent microphone-input noise: -130 dBu A-weighted

- Power-amplifier signal-to-noise ratio: 105 dB A-weighted

- Low-frequency equalizer: ±15 dB at 60 Hz

- Mono-channel midrange equalizer: ±15 dB from 100 Hz to 8 kHz

- Stereo-channel midrange equalizer: ±12 dB at 2.4 kHz

- High-frequency equalizer: ±15 dB at 12 kHz

- Master equalizer: Eleven-band stereo graphic EQ

- Master-EQ frequencies: 63, 125, 250, 400, 630 Hz, 1, 1.6, 2.5, 4, 6.3 and 12 kHz

- Master-EQ adjustment range: ±10 dB

- Mono-channel low-cut filter: 80 Hz, 18 dB/octave

- Voice filter: Switchable

- Monitor 1/2 feedback-filter range: 70 Hz to 7 kHz

- Feedback-filter attenuation: -9 dB

- Loudspeaker processing: Switchable LPN

- Effects processors: Two stereo multi-effects processors

- Effects resolution: 24/48-bit

- Factory effects presets: 100

- User-preset memories: 20

- Time-effects function: Tap Delay

- Effects remote control: Footswitch and MIDI

- Display: 128 x 64-pixel OLED

- USB audio interface: 4 inputs / 4 outputs

- USB conversion: 24-bit

- USB sampling rates: 44.1, 48, 88.2 and 96 kHz

- USB connector: Female USB 2.0 Type B

- MIDI interface: Five-pin DIN input and output

- Phantom power: Group-switchable 48 VDC

- Loudspeaker-protection limiter: Adjustable long-term RMS limiter

- Cooling system: Continuously variable-speed fans

- Mains power supply: 100 to 240 VAC

- Mains frequency: 50 to 60 Hz

- Power supply type: Auto-ranging switch-mode supply

- Power consumption at one-eighth maximum output: 450 W into 4 Ω

- Electrical safety class: Class I

- Operating ambient temperature: +5 °C to +40 °C

- Dimensions with cover: 510.5 x 164.5 x 571.5 mm

- Rack-mount dimensions: 483 x 135 x 443.7 mm

- Net weight without cover: 12.5 kg

- Net weight with cover: 14 kg

- Shipping weight: 17 kg

- Rack-mount option: Dynacord RMK-1000-3 kit

- Compatible footswitch: Optional Dynacord FS 11

- Compatible lamp: Optional 12 V / 5 W four-pin XLR lamp

- Manufacturer-listed package: PowerMate, protective cover, mains cable, manual and quick-start guide
