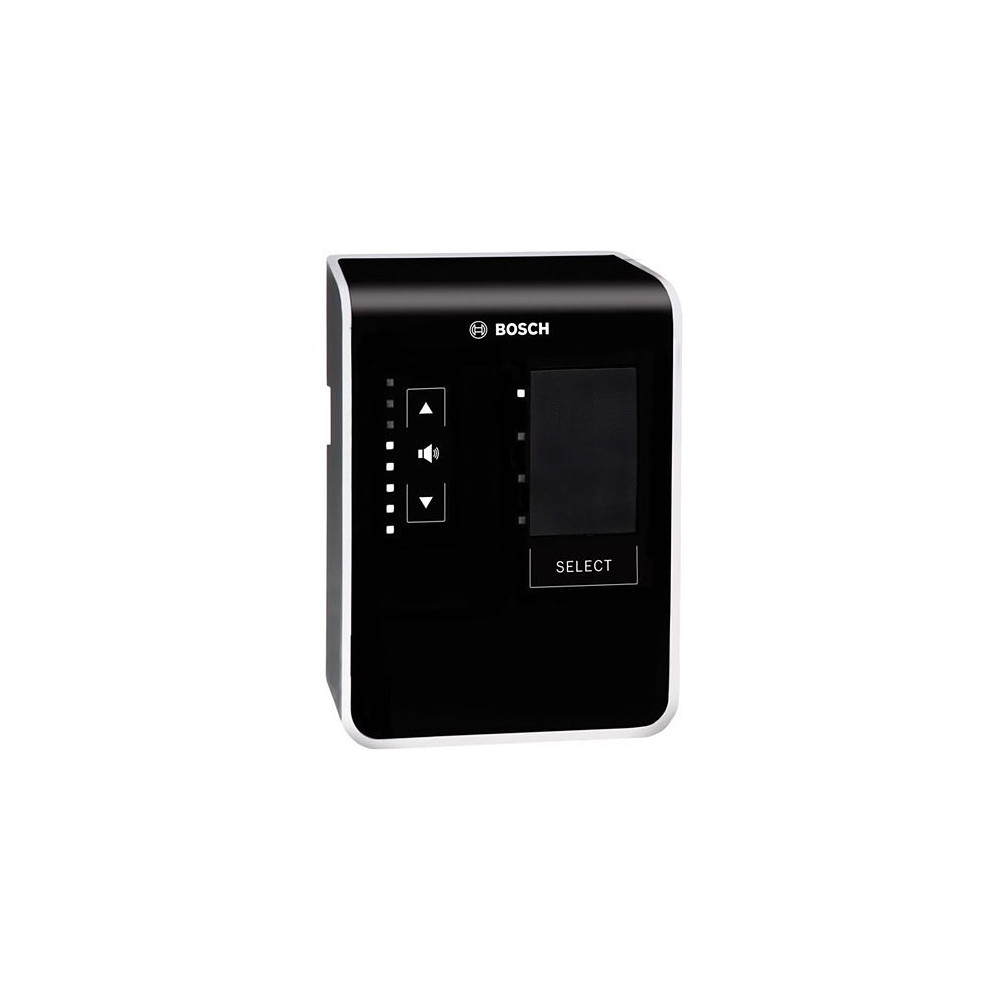

Bosch - PLM-WCP, PLENA Matrix Capacitive-Touch Wall Control Panel

Features

- Wall control panel for PLENA matrix systems

- Designed as an accessory for the Bosch PLM-8M8 DSP matrix mixer

- Simple and intuitive capacitive-touch controls

- White LED indicators for clear visibility

- Local audio-volume adjustment

- Local audio-source selection

- Selection button cycles through four available choices

- Two configurable source-selection modes

- First mode supports four microphone or line inputs

- Individual mixing of four inputs within a zone

- Second mode supports three separate music sources

- Music-source off selection included

- Operating mode configured through a rear DIP switch

- Customizable labels for easy source identification

- Labels printable through the PC graphical interface

- White text on black label design

- Digital communication through the RS485 protocol

- Connection through standard CAT 5 cabling

- Powered directly by the PLM-8M8 mixer

- No additional local power adapter required

- Two RJ45 connectors with loop-through operation

- Daisy-chain connection of multiple PLM-WCP panels

- Daisy-chain connection with Bosch PLM-8CS call stations

- Reduces the number of installation cable runs

- Helps reduce system-installation time

- Slim design matching PLENA matrix equipment

- Designed for surface-mounted wall installation

- Wall-mounting bracket included

- Panel clips securely onto its mounting bracket

- Three cable-entry options for flexible installation

- Suitable for local control of multi-zone installations

Specifications

- Brand: Bosch

- Model: PLM-WCP

- Product number: F.01U.269.008

- Product range: PLENA matrix

- Product type: Capacitive-touch wall control panel

- Compatible system: Bosch PLM-8M8

- Compatible call station: Bosch PLM-8CS

- Control type: Capacitive touch

- Indicators: White LED indicators

- Main functions: Source selection and volume adjustment

- Number of available selections: 4

- Configurable modes: 4 microphone/line inputs or 3 music sources with off

- Configuration method: Rear DIP switch

- Communication protocol: RS485

- Connectors: 2 loop-through RJ45 connectors

- Cable type: Standard CAT 5

- Power supply: Supplied by the Bosch PLM-8M8

- Operating-voltage range: 30 to 50 VDC

- Power consumption: 0.5 W

- Mounting type: Surface-mounted wall installation

- Dimensions: 130 × 100 × 30 mm

- Weight: Approximately 0.13 kg

- Colors: Traffic black RAL 9017 and silver RAL 9006

- Operating temperature: -10 °C to +45 °C

- Storage temperature: -40 °C to +70 °C

- Relative humidity: Less than 95%

- Safety standard: EN 60065

- EMC emission standard: EN 55103-1

- EMC immunity standard: EN 55103-2

- Regional certification: CE

- Supplied component: PLM-WCP wall control panel

- Supplied accessory: Wall-mounting bracket

- Supplied documentation: Safety documentation
