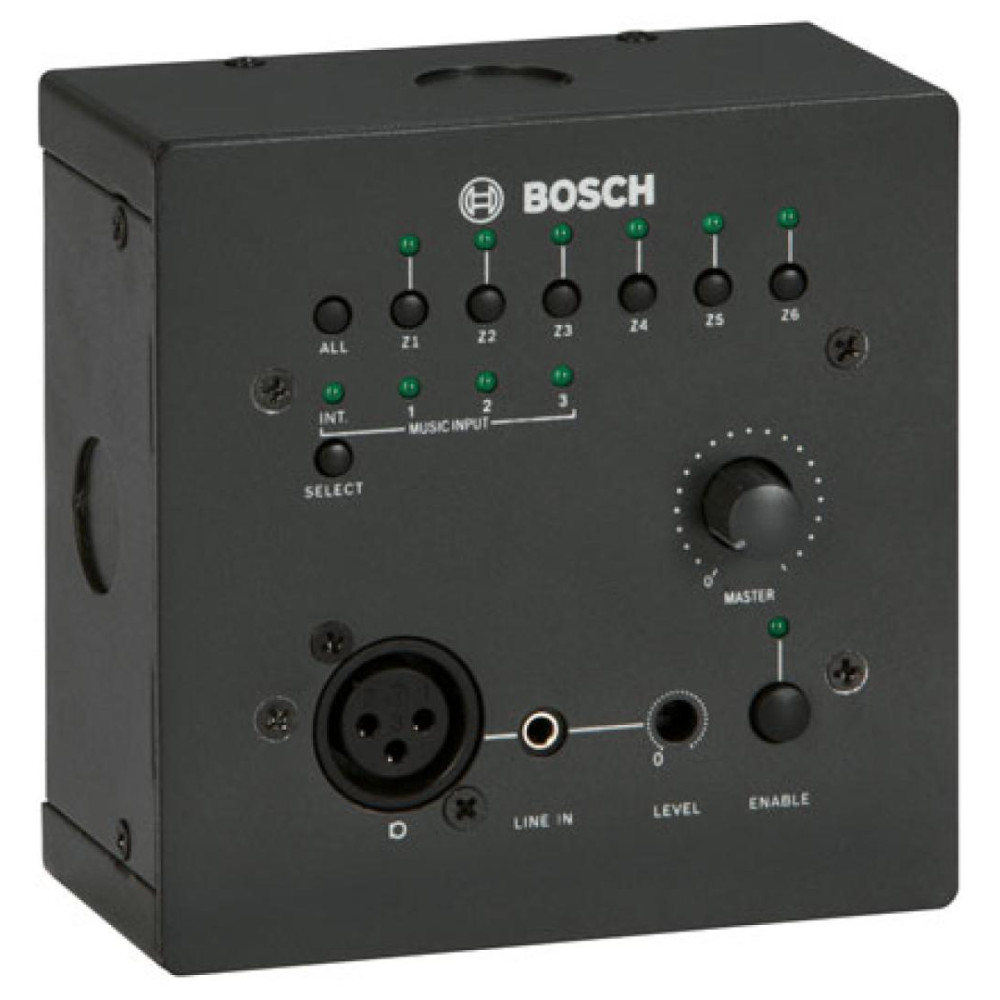

Bosch - PLN-4S6Z, Six-Zone Plena All-in-One Wall Control Panel

Features

- Wall control panel for public-address systems

- Designed specifically for the Bosch PLN-6AIO240

- Remote control of the Plena All-in-One system

- Independent selection of six audio zones

- Dedicated all-call selection function

- Remote selection of four music sources

- Background-music routing to selected zones

- Remote master-volume adjustment

- Enable button for activating remote control

- LED indicators for active zones

- LED indication for the selected music source

- Local professional microphone input

- Microphone connection through an XLR connector

- Local input for a music source

- Stereo music input through a 3.5 mm jack

- Independent level control for the local audio input

- System connection through standard CAT-5 cable

- Power and control transmitted through one cable

- Maximum cable distance of 600 meters

- Fast connection through RJ45 connectors

- No software setup or configuration required

- Powered directly by the PLN-6AIO240 unit

- Suitable for wall or flat-surface mounting

- Rear mounting bracket with integrated fixing holes

- Compact and unobtrusive interior design

- Simple controls for convenient daily operation

- Suitable for background music and paging systems

- Ideal for hotels, restaurants, schools and conference rooms

Specifications

- Brand: Bosch

- Model: PLN-4S6Z

- Product number: F.01U.275.428

- Product range: Plena All-in-One

- Product type: Wired wall control panel

- Compatible unit: Bosch PLN-6AIO240

- Number of controllable zones: 6

- All-call function: Yes

- Number of selectable music sources: 4

- Main functions: Zone selection, source selection and volume adjustment

- Local microphone input: 1

- Microphone connector: XLR

- Local music input: 1

- Music connector: 3.5 mm stereo jack

- Local input-level control: Yes

- Indicators: LED indicators

- System-connection type: RJ45

- Cable type: Standard CAT-5

- Maximum cable length: 600 m

- Configuration required: None

- Power supply: Supplied by the PLN-6AIO240

- Supply voltage: 24 VDC

- Typical current consumption: Less than 50 mA

- Number of system connectors: 1 internal RJ45 socket

- Mounting type: Wall or flat-surface mounting

- Dimensions: 115 × 115 × 70 mm

- Weight: Approximately 0.6 kg

- Operating temperature: -10 °C to +45 °C

- Storage temperature: -40 °C to +70 °C

- Relative humidity: Less than 95%, non-condensing

- Safety standard: IEC/EN 60065

- EMC emission standard: EN 55103-1

- EMC immunity standard: EN 55103-2

- Additional standards: EN 61000-3-2 and EN 61000-3-3

- European certification: CE

- Supplied component: Plena All-in-One wall panel

- Supplied cable: 1 m CAT-5 cable with RJ45 connectors
