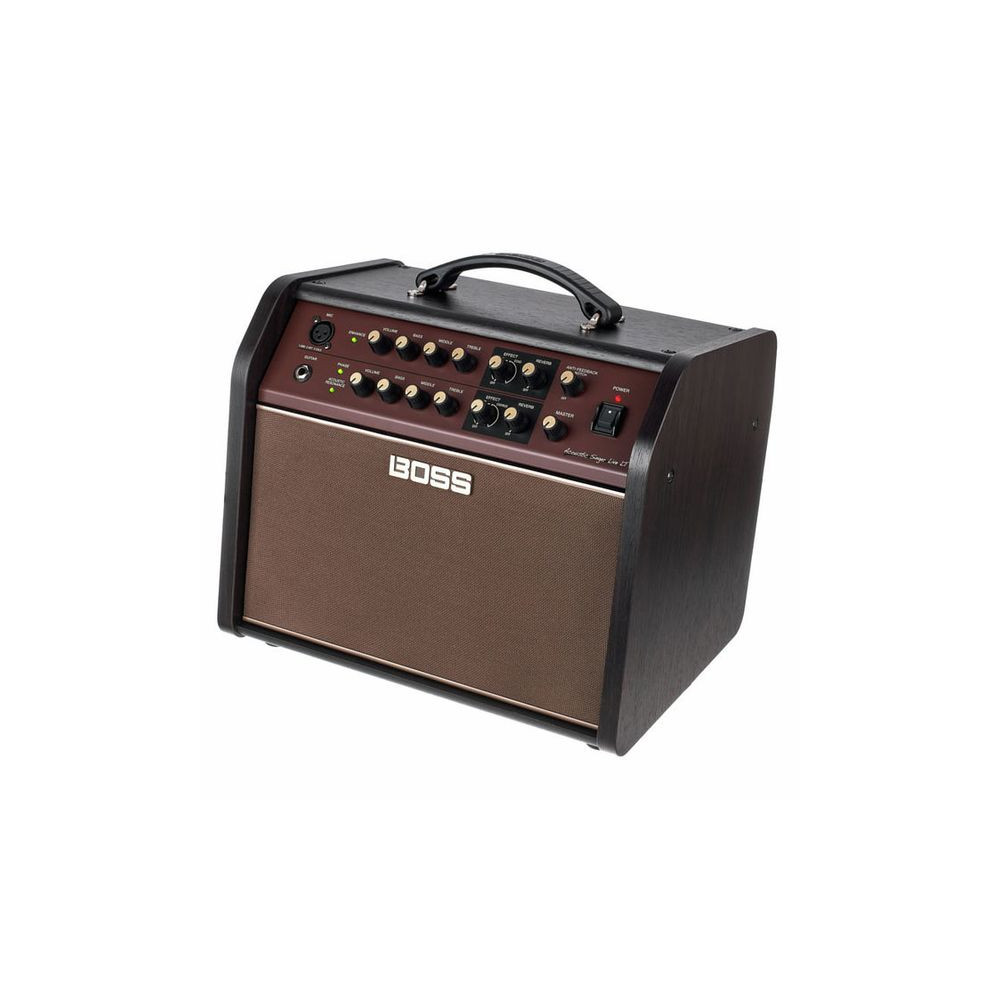

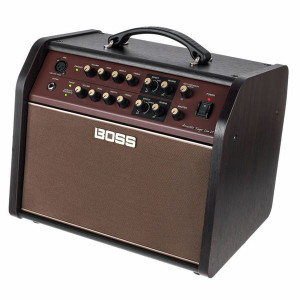

BOSS - ACS-LIVE, 60 W Acoustic Guitar Amplifier with Looper and Vocal Harmony

Features

- Professional amplifier for acoustic guitar and vocals

- Powerful 60 W bi-amplified design

- Dedicated 50 W woofer amplification

- Dedicated 10 W tweeter amplification

- Custom-designed 6.5-inch woofer

- 1-inch dome tweeter

- Independent guitar and microphone channels

- High-quality discrete analog input circuitry

- Independent three-band EQ on both channels

- Dedicated channel optimized for acoustic guitar

- Integrated BOSS Acoustic Resonance processing

- Acoustic Resonance restores natural acoustic guitar character

- Especially effective with piezo-equipped stage guitars

- Independent anti-feedback control on each channel

- Independent phase switch on each channel

- Integrated notch filtering for feedback control

- Two Chorus types on guitar channel

- Guitar-optimized Reverb effect

- Delay and Echo effects on microphone channel

- Independent Reverb on microphone channel

- XLR / 1/4-inch combo microphone input

- Phantom power for condenser microphones

- Microphone channel supports a second instrument source

- Automatic vocal Harmony function

- Real-time analysis of guitar chords

- Automatically generated vocal harmonies

- High and Low harmony types

- Unison mode for vocal doubling

- Adjustable harmony level

- Integrated Looper for live performances

- Loops guitar, vocals and effects

- Dedicated Record, Play, Overdub and Stop/Clear controls

- Auxiliary input for mobile audio devices

- Independent AUX input level control

- Dual professional XLR DI/Line outputs

- XLR outputs configurable by individual channel or mix

- Direct or post-effects output options

- Stereo headphones and recording output

- USB connection for direct computer recording

- Direct DAW recording via USB

- External control connection for Looper

- External control connection for Harmony

- Compatible with multiple BOSS footswitch models

- Compatible with Roland GA-FC controller

- Dual footswitch included

- Integrated Mute function

- Tweeter attenuation control

- Compact design for stage and rehearsal use

- Ideal for singer-guitarists, acoustic concerts and live performances

Specifications

- Brand: BOSS

- Model: ACS-LIVE

- Series: Acoustic Singer Live

- Type: Acoustic guitar and vocal amplifier

- Total rated output power: 60 W

- Woofer amplifier power: 50 W

- Tweeter amplifier power: 10 W

- Amplification configuration: Bi-Amp

- Woofer: 16 cm / 6.5 inches × 1

- Tweeter: 2.5 cm / 1-inch dome × 1

- Main channels: 2

- Channel 1: Microphone

- Channel 2: Guitar

- Microphone input: XLR / 1/4-inch TRS combo

- Microphone nominal input level: -33 dBu

- Microphone input impedance: 2.5 kΩ

- Phantom power: Yes

- Guitar input: 1/4-inch jack

- Guitar nominal input level: -10 dBu

- Guitar input impedance: 5 MΩ

- AUX input: Stereo mini jack

- AUX nominal input level: -8 dBu

- AUX input impedance: 10 kΩ

- Microphone EQ: Bass / Middle / Treble

- Guitar EQ: Bass / Middle / Treble

- Guitar effects: Acoustic Resonance / Chorus / Reverb

- Microphone effects: Delay / Echo / Reverb

- Anti-feedback: Independent on both channels

- Phase control: Switchable on both channels

- Vocal harmony modes: High / Unison / Low

- Looper: Built-in

- Phones / Record output: Stereo 1/4-inch jack

- Microphone/Mix DI/Line output: XLR

- Guitar/Mix DI/Line output: XLR

- USB port: USB Type-B

- Looper/Chorus foot control: 1/4-inch TRS

- Harmony/Mute foot control: 1/4-inch TRS

- GA-FC connection: 1/4-inch TRS

- Power supply: AC mains

- Power consumption: 40 W

- Width: 367 mm

- Depth: 274 mm

- Height: 314 mm

- Dimensions: 367 × 274 × 314 mm

- Weight: 10.5 kg

- Included accessory: Power cord

- Included accessory: Dual footswitch

- Included accessory: Owner's manual

- Included accessory: GA-FC sticker

- Optional footswitches: BOSS FS-5U / FS-6 / FS-7

- Optional controller: Roland GA-FC

- Compatible expression pedals: Roland EV-5 / FV-500H / FV-500L
