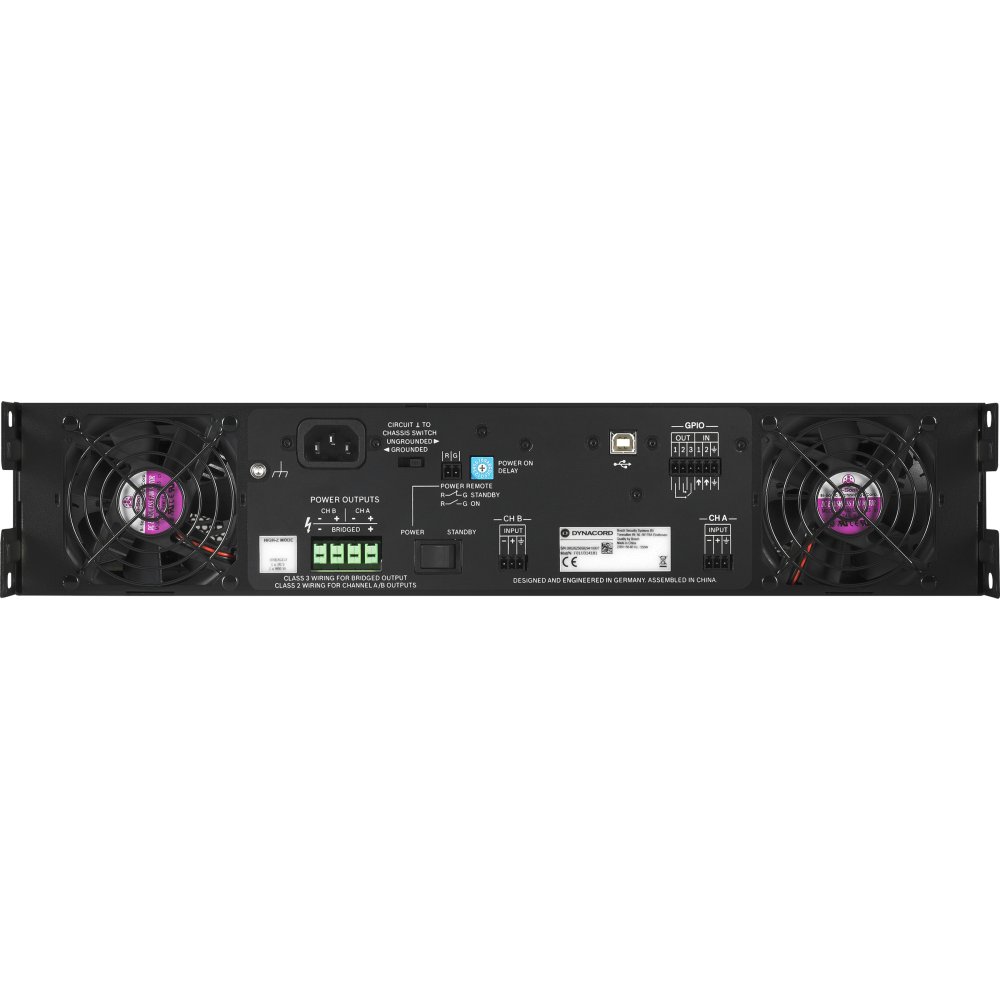

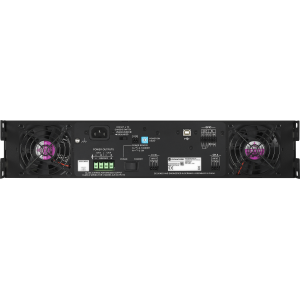

DYNACORD - C1300FDI-EU, 2 × 650 W DSP Power Amplifier for Fixed Installations

Features

- Professional two-channel DSP power amplifier

- Specifically designed for fixed audio installations

- Optimized for continuous 24/7 operation

- Commercial power rating of 2 × 650 W

- Maximum output of 660 W into 4 ohms with one channel active

- Maximum output of 2 × 600 W into 4 ohms with both channels active

- Maximum output of 1100 W into 2 ohms with one channel active

- Maximum bridged output of 2000 W into 4 ohms

- Supports 2, 2.6, 4 and 8-ohm low-impedance loads

- Direct Drive 70 V operation available in bridged mode

- Direct Drive load capability of 625 W at 70 V

- Class AB amplifier output-stage technology

- Fully integrated digital signal processor

- Professional FIR Drive loudspeaker-processing technology

- Integrated FIR filters for optimized loudspeaker response

- Integrated digital audio limiters

- 10-band user parametric equalizer per channel

- 5-band Array parametric equalizer per channel

- Independent output delay for each channel

- Integrated Array delay function

- Load-impedance measurement and monitoring

- Configurable and selectable DSP presets

- Configuration and control through SONICUE software

- Advanced SONICUE functions available with firmware 2.0

- Front-panel LCD control and monitoring interface

- Multifunction rotary encoder for menu navigation

- Balanced audio inputs on Euroblock connectors

- Secure Euroblock loudspeaker output connector

- USB type B port for configuration and firmware updates

- Two integrated GPI control inputs

- One integrated GPO control output

- External preset selection through GPI

- Floating relay contact for protection-status indication

- Power Remote connector for remote operation

- Selectable power-on delay

- Energy-saving standby mode

- Ground Lift function for reducing ground-loop noise

- Integrated peak-current limiters

- High-temperature protection

- DC voltage protection

- High-frequency protection

- Back-EMF protection

- Short-circuit protection

- Start-up inrush-current limiting

- Delayed loudspeaker-output activation

- Active front-to-rear cooling

- Two controlled three-stage cooling fans

- Professional standard 19-inch rack chassis

- Compact two-rack-unit design

- Suitable for retail spaces, hotels, restaurants, auditoriums and public venues

Specifications

- Brand: DYNACORD

- Model: C1300FDI-EU

- Series: C Series

- Product type: Fixed-installation DSP power amplifier

- Version: Europe

- Order number: C1300FDI-EU

- Number of channels: 2

- Output-stage topology: Class AB

- Commercial power rating: 2 × 650 W

- Maximum single-channel output into 2 ohms: 1100 W

- Maximum single-channel output into 2.6 ohms: 950 W

- Maximum single-channel output into 4 ohms: 660 W

- Maximum single-channel output into 8 ohms: 350 W

- Maximum dual-channel output into 2 ohms: 2 × 1000 W

- Maximum dual-channel output into 2.6 ohms: 2 × 850 W

- Maximum dual-channel output into 4 ohms: 2 × 600 W

- Maximum dual-channel output into 8 ohms: 2 × 320 W

- Maximum bridged output into 4 ohms: 2000 W

- Maximum bridged output into 8 ohms: 1200 W

- Direct Drive capability at 70 V, dual channel: Not available

- Direct Drive capability at 70 V, bridged: 1 × 625 W

- Direct Drive capability at 100 V: Not available

- Maximum RMS voltage swing: 55.3 V

- Voltage gain at 1 kHz: 32 dB

- Maximum input level: +21 dBu

- Input impedance: 20 kΩ, active balanced

- Frequency response: 10 Hz to 21 kHz, ±1 dB

- Total harmonic distortion at 450 W into 4 ohms: Below 0.05%

- IMD-SMPTE distortion: Below 0.1%

- DIM30 distortion: Below 0.05%

- A-weighted signal-to-noise ratio: Above 104 dB

- Crosstalk at 1 kHz: Below -80 dB

- A-weighted output noise: Below -68 dBu

- Signal processing: Integrated FIR Drive DSP

- DSP filters: FIR filters

- User equalizer: 10-band PEQ per channel

- Array equalizer: 5-band PEQ per channel

- Limiters: Integrated digital audio limiters

- DSP delay: Output and Array delay

- DSP monitoring: Load-impedance measurement

- Control software: SONICUE Sound System Software

- Firmware required for advanced functions: Version 2.0

- Display: Front-panel LCD screen

- Local control: Multifunction rotary encoder

- Audio inputs: 2 balanced 3-pin Euroblock inputs

- Loudspeaker output: 4-pin Euroblock connector

- Computer interface: USB type B

- External control: Power Remote, 2 GPI and 1 GPO

- GPI function: External preset selection

- Status output: Floating relay contact for Protect mode

- Ground Lift function: Yes

- Energy-saving standby mode: Yes

- Power-on delay: Selectable

- Protection circuits: Audio limiters, temperature, DC, HF and Back-EMF

- Additional protection: Peak current, inrush current and short circuit

- Loudspeaker-output turn-on delay: Yes

- Cooling system: Two three-stage fans

- Airflow direction: Front to rear

- EU version power supply: 230 V, 50 to 60 Hz

- Power consumption at 1/8 maximum output into 4 ohms: 550 W

- Mains fuse at 230 V: T10AH

- Operating temperature range: +5°C to +40°C

- Safety class: Class I

- Color: Black

- Installation: Standard 19-inch rack, 2U

- Dimensions: 483 × 88 × 462.4 mm

- Weight: 12.9 kg

- Optional accessory: RMK15 rear rack-mount kit
