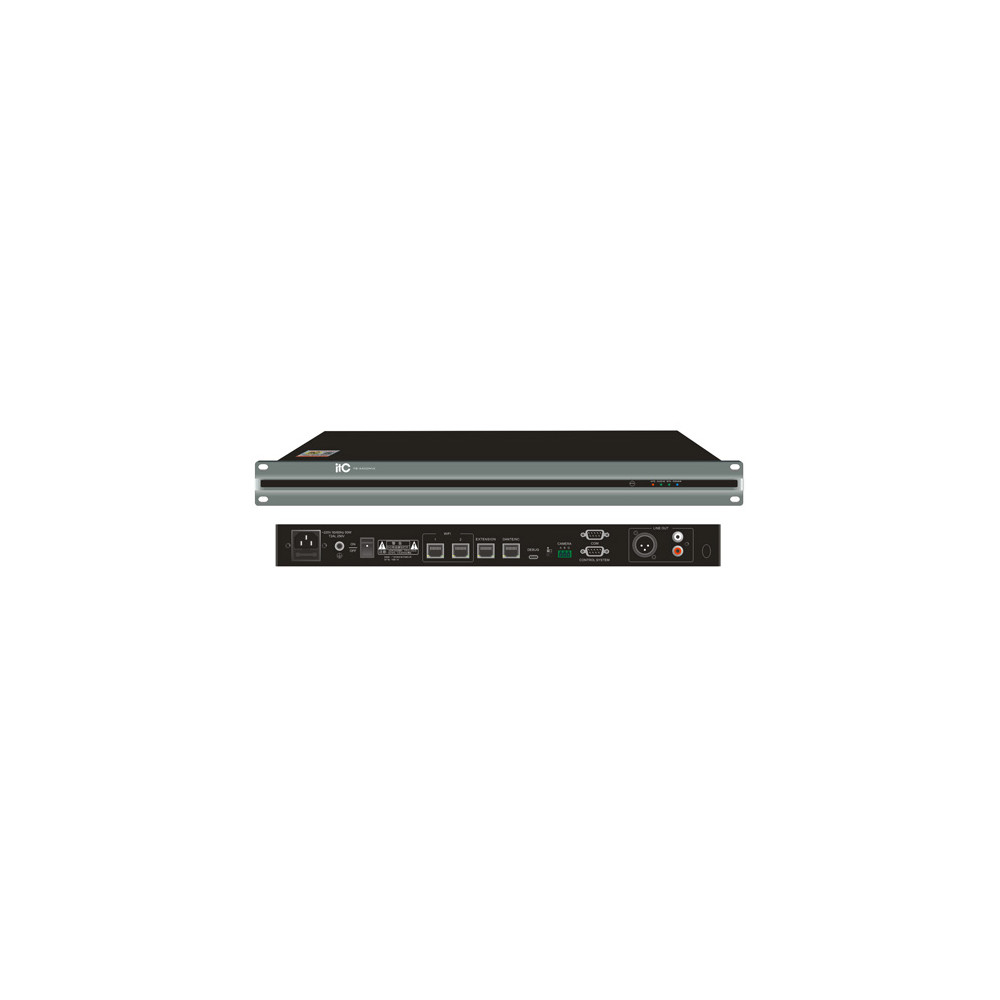

ITC - TS-3400MIX, Intelligent Digital Audio Processor for Conference Systems

Characteristics

- Professional digital audio processor

- Designed for ITC digital conference systems

- Intelligent auto-mixing (Gain Sharing and Threshold Mixing)

- Supports 16 wired and 8 wireless microphones simultaneously

- Intelligent voice detection

- Automatic Gain Control (AGC)

- AFC feedback suppression

- Dual Notch + Frequency Shift technology

- 24 programmable notch filters

- 31-band graphic equalizer

- Automatic camera tracking

- 64 preset camera positions

- Speech transcription via RS-232

- Network audio transmission through RJ45

- Dual RJ45 network ports

- 1 balanced XLR output

- 1 unbalanced RCA output

- 1 extension interface

- 1 RS-485 port

- 2 RS-232 ports

- 1 USB Type-C port

- Front AFC touch button

- AFC, Audio, Status and Power indicators

- Standard 19-inch rack-mount installation

Specifications

- Brand: ITC

- Model: TS-3400MIX

- Product type: Digital audio processor

- Simultaneous microphones: 16 wired + 8 wireless

- Frequency response: 80 Hz to 16 kHz

- Signal-to-noise ratio: >75 dB(A)

- Dynamic range: >75 dB(A)

- Total harmonic distortion: <0.05%

- Power supply: AC 100-240 V, 50/60 Hz

- Audio outputs:

- LINE OUT 1: 1 V balanced XLR

- LINE OUT 2: 1 V unbalanced RCA

- Output load: >1 kΩ

- Standby power consumption: 3.3 W

- Network interface: RJ45

- Operating temperature: -10°C to +60°C

- Operating humidity: 20%–80% RH (non-condensing)

- Dimensions: 484 × 214 × 44 mm

- Mounting: 19-inch rack (1U)

- Weight: 2.51 kg
