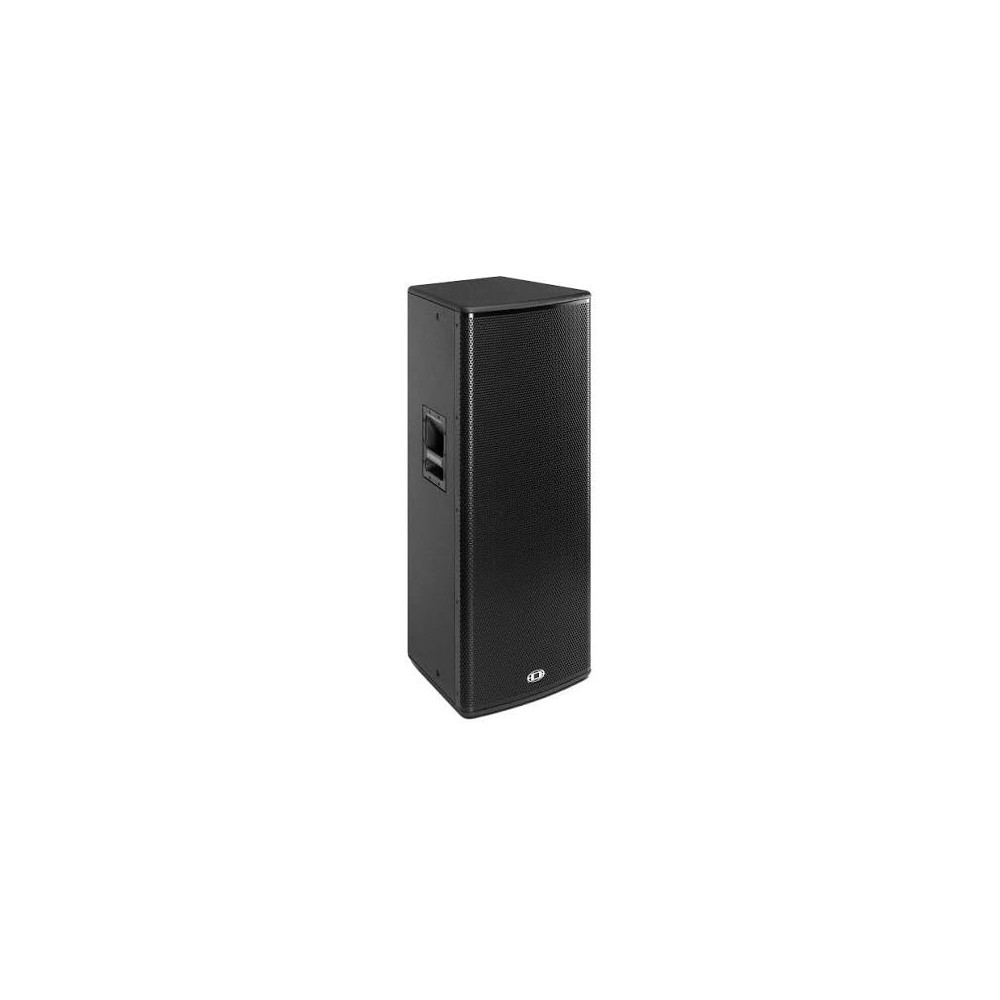

Dynacord - C 25.2, Dual 15-inch 1000 W Passive 2-Way Loudspeaker

Features

- Professional passive two-way loudspeaker

- Dual 15-inch low-frequency configuration

- Two Dynacord SMX2151 LF transducers

- Electro-Voice ND2-8 compression driver

- 2-inch high-frequency diaphragm

- 1000 W RMS rated power handling

- 4000 W peak power handling

- 4-ohm nominal impedance

- High 103 dB 1 W / 1 m sensitivity

- Maximum calculated SPL of 139 dB

- Frequency response from 55 Hz to 15 kHz

- Controlled 60° × 40° coverage pattern

- Rotatable horn for 40° × 60° coverage

- Passive crossover frequency of 1.75 kHz

- Passive crossover with HF protection

- Multi-functional professional cabinet design

- Suitable for high-output professional PA systems

- Suitable for portable and fixed installations

- Two Neutrik Speakon NL4 connectors

- Parallel Speakon wiring configuration

- Six M8 threaded suspension points

- Two M8 points on each side

- Two M8 points on rear panel

- Compatible with Dynacord EBK-M8 eye bolt kit

- Rugged MDF enclosure construction

- Durable Dynacord D-PUR PLUS coating

- Heavy-duty black steel front grille

- Protective acoustic gauze behind grille

- Designed for concerts, clubs, events and professional installations

Specifications

- Brand: Dynacord

- Model: C 25.2

- Order number: F01U165093

- Product type: Passive two-way full-range loudspeaker

- Configuration: 2 × 15-inch + 2-inch compression driver

- LF transducers: 2 × SMX2151

- LF driver diameter: 2 × 381 mm (15 inches)

- HF transducer: ND2-8

- HF diaphragm: 51 mm (2 inches)

- Nominal impedance: 4 ohms

- Minimum impedance: 3.1 ohms

- Rated RMS power: 1000 W

- Peak power: 4000 W

- Sensitivity 1 W / 1 m: 103 dB SPL

- Maximum calculated SPL at 1 m: 139 dB

- Frequency range (-10 dB): 55 Hz to 15 kHz

- Nominal coverage: 60° × 40°

- Alternate coverage after horn rotation: 40° × 60°

- Crossover frequency: 1750 Hz

- Crossover: Passive with HF protection

- Connectors: 2 × Neutrik Speakon NL4

- Full-range wiring: 1+ / 1-

- Through wiring: 2+ / 2-

- Width: 445 mm

- Height: 1130 mm

- Depth: 445 mm

- Dimensions: 445 × 1130 × 445 mm

- Net weight: 44.9 kg

- Shipping weight: 50.5 kg

- Enclosure material: MDF

- Enclosure finish: D-PUR PLUS

- Grille: Black steel with acoustic gauze

- Suspension: 6 × M8 threaded points

- Optional accessory: EBK-M8 eye bolt kit

- EBK-M8 accessory part number: F01U166797

- Application: Professional PA, concerts, events and fixed installations
