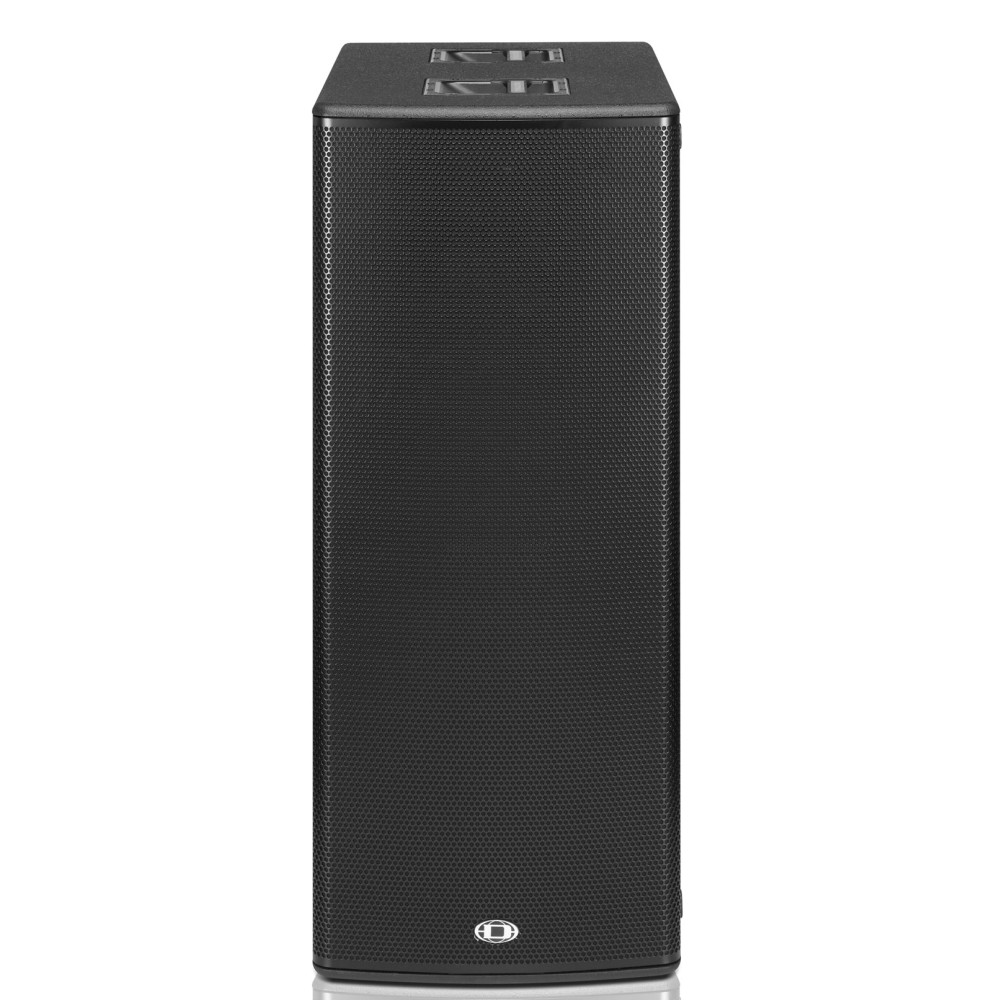

Dynacord - SUB 2.18, Dual 18-inch 1000 W Passive Subwoofer

Features

- Professional dual 18-inch passive subwoofer

- Two Electro-Voice EVS-18S 18-inch LF transducers

- Vented direct-radiator cabinet design

- 1000 W RMS rated power handling

- 4000 W peak power handling

- 4-ohm nominal impedance

- High 102 dB sensitivity

- Maximum calculated SPL of 138 dB

- Extended low-frequency response down to 35 Hz

- Frequency response extending to 250 Hz

- Omnidirectional low-frequency coverage

- Designed for high-power professional sound reinforcement

- Excellent performance for concerts and live events

- Powerful bass with excellent dynamic response

- Suitable for active multi-way sound systems

- Two professional Neutrik Speakon NL4 connectors

- Parallel Speakon wiring configuration

- Four integrated carrying handles

- Mounting points for optional wheel kit

- Compatible with Dynacord WK-C18 wheel kit

- Rugged MDF enclosure construction

- Durable Dynacord D-PUR PLUS coating

- Heavy-duty steel front grille

- Black grille with protective acoustic gauze

- Built for demanding professional applications

- Ideal for clubs, concerts, events and fixed installations

Specifications

- Brand: Dynacord

- Model: SUB 2.18

- Order number: F01U165096

- Product type: Passive subwoofer

- Configuration: Dual 18-inch

- Cabinet design: Vented direct radiator

- LF transducers: 2 × Electro-Voice EVS-18S

- LF driver diameter: 2 × 457 mm (18 inches)

- Nominal impedance: 4 ohms

- Minimum impedance: 3.3 ohms

- Rated RMS power: 1000 W

- Peak power: 4000 W

- Sensitivity 1 W / 1 m: 102 dB SPL

- Maximum calculated SPL at 1 m: 138 dB

- Frequency range (-10 dB): 35 Hz to 250 Hz

- Coverage: Omnidirectional

- Connectors: 2 × Neutrik Speakon NL4

- Main wiring: 1+ / 1-

- Through wiring: 2+ / 2-

- Width: 513 mm

- Height: 1200 mm

- Depth: 710 mm

- Dimensions: 513 × 1200 × 710 mm

- Net weight: 66.3 kg

- Shipping weight: 71.7 kg

- Enclosure material: MDF

- Enclosure finish: D-PUR PLUS

- Grille: Black steel with acoustic gauze

- Integrated handles: 4

- Optional wheel kit: Dynacord WK-C18

- Wheel kit part number: F01U169672

- Application: Professional PA, concerts, clubs, events and fixed installations
