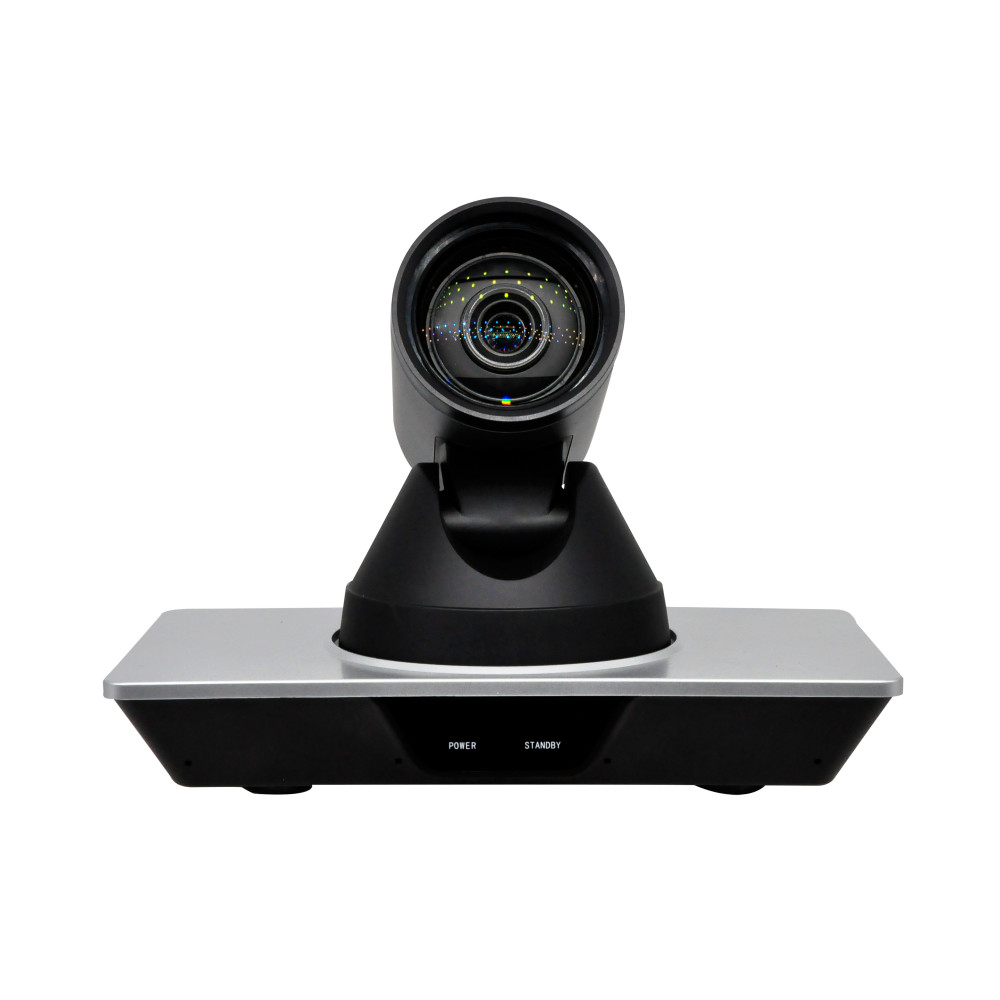

ITC - TV-6124HK, 4K UHD PTZ Video Conference Camera with 12x Optical Zoom

Characteristics

- Professional 4K PTZ camera

- Sony 1/1.8" UHD CMOS sensor

- 3840 × 2160 Ultra HD resolution

- 71° wide-angle lens

- 12x optical zoom

- 16x digital zoom

- Advanced ISP image processing

- 2D & 3D digital noise reduction

- ≥55 dB signal-to-noise ratio

- Simultaneous HDMI, USB, LAN and 3G-SDI outputs

- HDMI 1.4b output

- USB video output

- RJ45 network interface

- 3G-SDI output up to 150 m (1080p30)

- RS232 control

- IP network control

- USB control

- ±170° pan range

- ±30° tilt range

- Up to 255 preset positions

- Automatic image flip

- Low-power sleep mode (<400 mW)

- Compatible with Windows, macOS and Android

- Ideal for conferencing, education, telemedicine and command centers

Specifications

- Brand: ITC

- Model: TV-6124HK

- Sensor: Sony 1/1.8" UHD CMOS

- Effective pixels: 8.51 MP

- Maximum resolution: 3840 × 2160 (4K)

- Progressive scan

- Optical zoom: 12x

- Digital zoom: 16x

- Focal length: 4.4–52.8 mm

- Aperture: F1.8–F2.6

- Horizontal viewing angle: 71°–8.2°

- Vertical viewing angle: 42.7°–4.5°

- Minimum illumination: 0.5 Lux

- Shutter speed: 1/30–1/10000 s

- 2D/3D digital noise reduction

- Pan range: ±170°

- Tilt range: ±30°

- Pan speed: 1.7–76°/s

- Tilt speed: 0.5–15°/s

- Presets: 255

- Preset accuracy: 0.1°

- HDMI 1.4b

- USB video

- LAN interface

- 3G-SDI

- RS232

- Weight: 1.5kg

- Low-power operation
