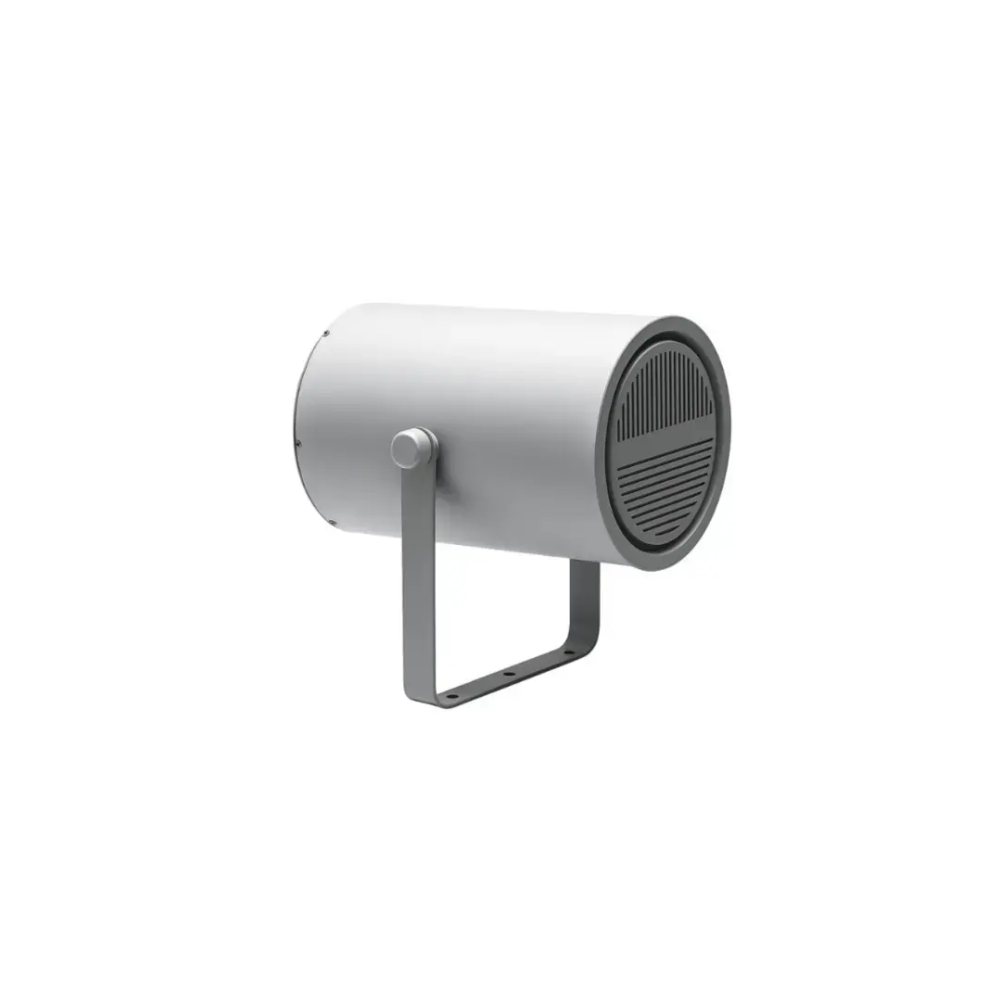

Bosch - LBC3094/15, 10 W Sound Projector Loudspeaker

Features

- Powerful 10 W directional sound projector

- Suitable for clear speech reproduction

- Suitable for background music reproduction

- Directional sound coverage for localized applications

- Compatible with 100 V public address systems

- Simple and convenient power setting

- Selectable power settings: 10, 5 and 2.5 W

- Power selection through four-core connection cable

- Fixed 2 meter connection cable

- Four-core 0.5 mm² connection cable

- IP63 water and dust protection

- Suitable for indoor and outdoor applications

- Suitable for environments with high humidity levels

- Robust high-impact ABS enclosure

- Self-extinguishing ABS according to UL 94 V0

- Strong steel mounting bracket

- Suitable for wall or ceiling mounting

- Adjustable direction for targeted sound coverage

- Designed for reliable professional operation

- Complies with international installation and safety regulations

- Complies with EN 60065 safety requirements

- Tested according to IEC 268-5 PHC

- Designed for continuous operation at rated power

- Discreet white RAL 9010 finish

- Ideal for shopping centers, restaurants and exhibitions

- Suitable for factories and sports facilities

Specifications

- Brand: Bosch

- Model: LBC3094/15

- Product type: Directional sound projector loudspeaker

- Application: Public address and background music

- Maximum power: 15 W

- Rated power: 10 W

- Power tapping: 10 / 5 / 2.5 W

- Rated input voltage: 100 V

- Rated impedance: 1,000 ohms

- Sound pressure level at 10 W / 1 W, 1 kHz, 1 m: 104 / 94 dB SPL

- Effective frequency range (-10 dB): 140 Hz to 10 kHz

- Opening angle at 1 kHz (-6 dB): 152°

- Opening angle at 4 kHz (-6 dB): 60°

- Electrical connection: Fixed four-core cable

- Cable cross section: 4 × 0.5 mm²

- Cable length: 2 m

- Protection rating: IP63

- Dimensions diameter × length: 177 × 268 mm

- Weight: 2.2 kg

- Enclosure material: ABS

- Bracket material: Steel

- Color: White RAL 9010

- Installation: Wall or ceiling mounting

- Operating temperature: -25 °C to +55 °C

- Storage and transport temperature: -40 °C to +70 °C

- Relative humidity: Below 95%

- Self-extinguishing classification: UL 94 V0
