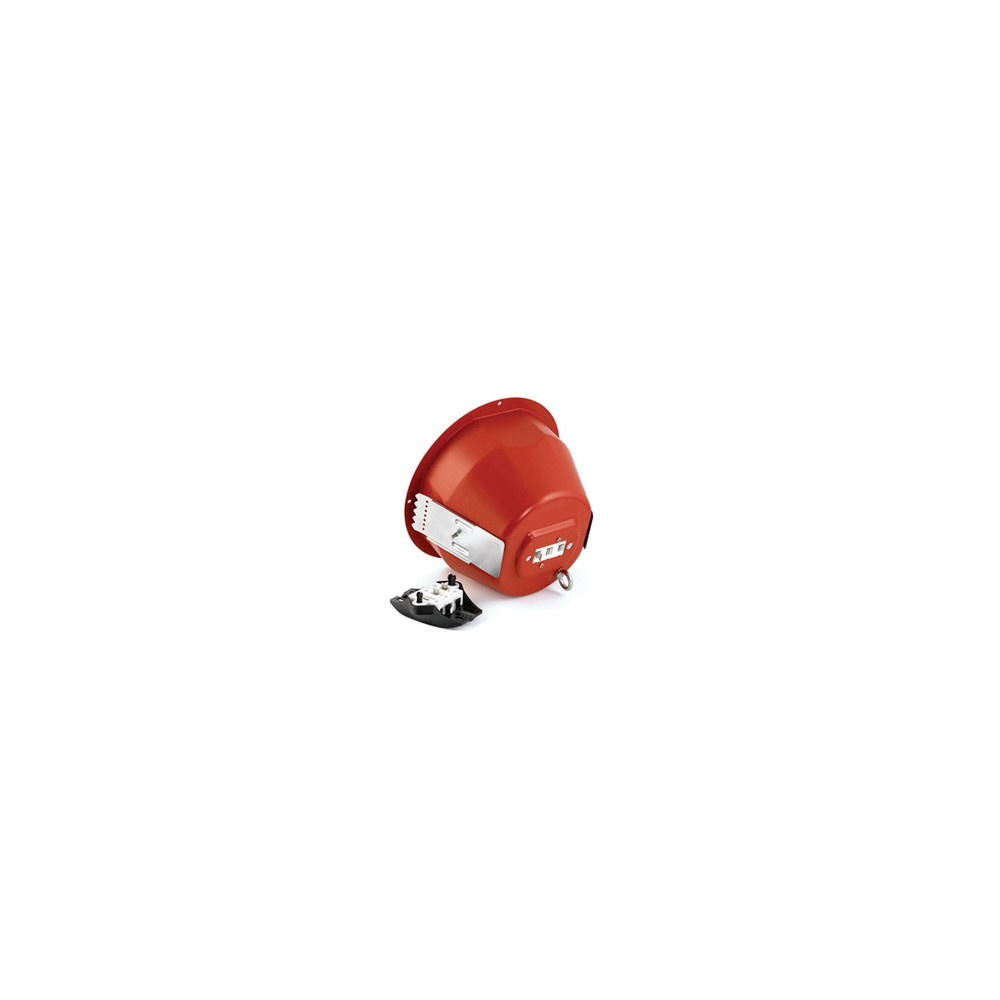

Dynacord - DC1-MFD, Metal Fire Dome with Ceramic Terminal for DC1 Ceiling Loudspeakers

Features

- Metal fire dome for ceiling loudspeakers

- Designed for the Dynacord DC1 modular range

- Compatible with multiple DC1 ceiling loudspeakers

- Enhances protection around the cable termination

- Rugged all-metal construction

- Integrated ceramic screw terminal block

- Terminal designed for high-temperature conditions

- Dual cable-entry arrangement

- Integrated loop-through wiring facility

- Supports daisy-chain loudspeaker connections

- Helps maintain public-address circuit continuity

- Attachment point for an optional safety cable

- Safety cable sold separately

- Fire dome installed before the loudspeaker

- Supports convenient ceiling-loudspeaker assembly

- Compatible with a 190 mm ceiling cutout

- Easily identifiable flame-red finish

- Steel construction for professional installations

- Suitable for voice-announcement systems

- Designed for indoor public-address installations

- Suitable for evacuation-system applications

- Appropriate for schools, hotels and offices

- Suitable for retail and public buildings

- Contains no active electronic components

- Requires no electrical power supply

- Ceiling loudspeaker sold separately

Specifications

- Brand: Dynacord

- Model: DC1-MFD

- Compatible product range: DC1

- Product type: Metal fire dome

- Application: Ceiling-loudspeaker protection

- Material: Steel

- Color: Flame red

- Color reference: RAL 3000

- Connector: Ceramic screw terminal block

- Connection function: Loop-through facility

- Wiring method: Loop-in and loop-out

- Cable entries: 2

- Safety-cable attachment: Yes

- Safety cable included: No

- Dimensions: 215 × 155 mm

- Ceiling cutout diameter: 190 mm

- Weight: 1 kg

- Operating temperature: -25 °C to +55 °C

- Storage temperature: -40 °C to +70 °C

- Relative humidity: Less than 95%

- Installation type: Flush ceiling installation

- Installation sequence: Fire dome installed before loudspeaker

- Compatible model: Dynacord DC1-WM06E8

- Compatible model: Dynacord DC1-UM06E8

- Compatible model: Dynacord DC1-UM12E8

- Compatible model: Dynacord DC1-UM24E8

- Bosch equivalent: LC1-MFD

- Bosch equivalent product number: F.01U.075.450

- Electrical power required: No

- Loudspeaker included: No

- Supplied quantity: One metal fire dome
