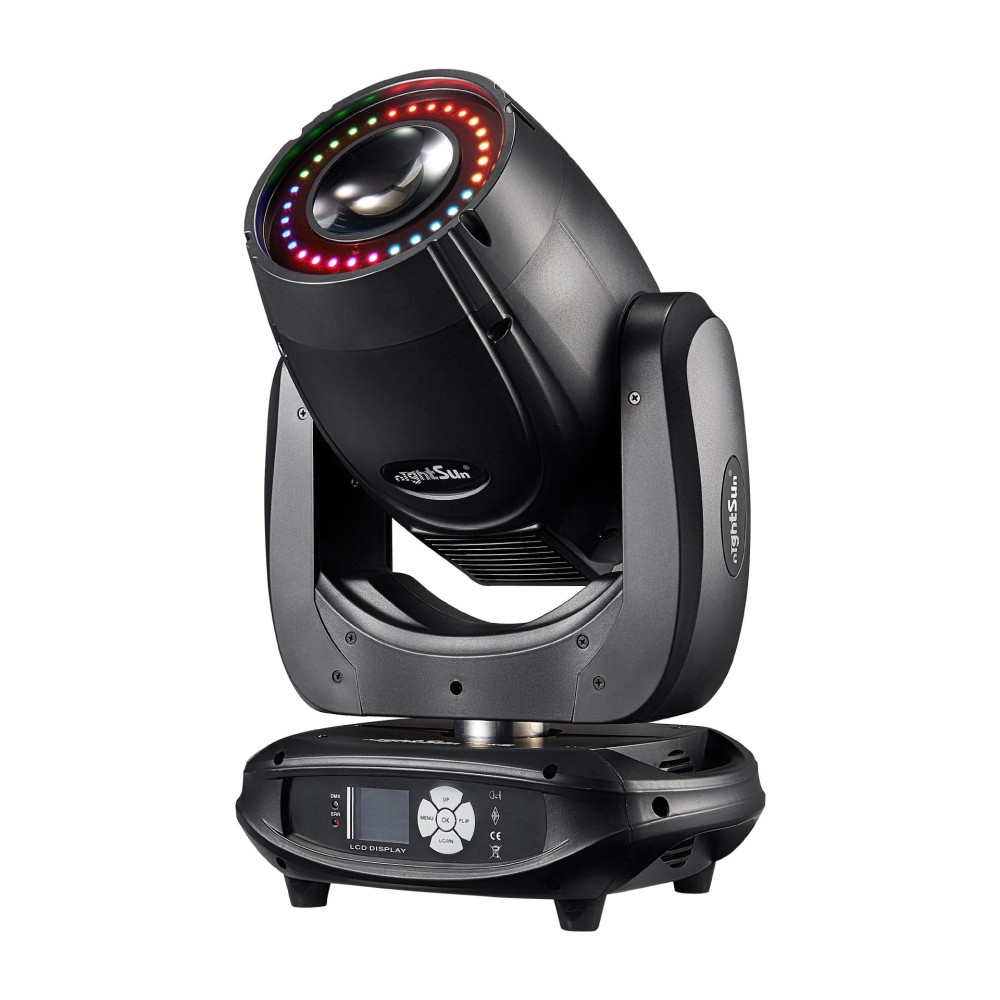

Top Lighting - KBF-230, 230W LED Beam/Spot/Wash 3-in-1 Moving Head with Flight Case

Top Lighting - KBF-230, 230W LED Beam/Spot/Wash 3-in-1 Moving Head with Flight Case

Availability:
Top Lighting
KBF230XXXX

- Powerful 230W LED source

- Beam Spot Wash versatility

- Motorized zoom up to 30°

- Dual 8/16-facet prism

- Protective transport flight case

Hurry! only 10 items left in stock.
$1,449.44
Quantity

Add to Compare
Add to Wishlist
Availability product:
Full Stock
  Warranty & Security

Music Plus Warranty: 1-Year Coverage for Manufacturing Defects!

  Shipping Policy

Enjoy fast, reliable, and fully tracked delivery straight to your doorstep!

  Politique retours

Easy returns. Hassle-free exchanges. Total peace of mind.

Top Lighting - KBF-230, 230W LED Beam/Spot/Wash 3-in-1 Moving Head with Flight Case

Information

The Stage Lighting KBF-230 is a professional 3-in-1 LED moving head combining Beam, Spot and Wash effects within a single lighting fixture. Its powerful 230W LED source, motorized zoom and extensive range of effects make it ideal for concerts, live shows, clubs, multipurpose venues, studios and professional events.

Supplied with a protective flight case, it is particularly suitable for mobile installations, rental companies and professional event service providers.

Features

- Professional 3-in-1 LED moving head

- Beam, Spot and Wash effects

- Powerful 230W white LED source

- 7500K color temperature

- LED source life up to 20,000 hours

- Additional 12W 5050 LED lighting

- Narrow 2.5° Beam effect

- Spot effect with 2.5° to 30° zoom

- Wash effect with 7° to 30° zoom

- Electronic zoom and focusing system

- Fixed gobo wheel with 9 gobos plus open

- Gobo shake effects

- Rotating gobo wheel with 6 gobos plus open

- Bidirectional gobo rotation

- Color wheel with 9 colors plus white

- Split-color effects between adjacent colors

- Integrated rainbow effect

- Dual rotating 8-facet and 16-facet prisms

- Prisms can operate separately or together

- Dynamic multi-beam effects

- Adjustable frost filter from 0 to 100%

- Smooth electronic dimming from 0 to 100%

- Adjustable mechanical strobe from 1 to 14 flashes per second

- 540° Pan movement with 16-bit resolution

- 270° Tilt movement with 16-bit resolution

- Automatic Pan/Tilt position correction

- Automatic and sound-activated operation

- DMX512 and Master/Slave modes

- 19-channel DMX control

- 3-pin XLR DMX input and output

- Intelligent low-noise cooling system

- Heat-resistant flame-retardant housing

- Designed for indoor applications

- Protective transport flight case included

- Suitable for concerts, events, clubs, studios and performance venues

Specifications

- Brand: Stage Lighting

- Model: KBF-230

- Type: 3-in-1 Beam/Spot/Wash LED moving head

- Main light source: 230W white LED

- Auxiliary lighting: 12W 5050 LED

- Color temperature: 7500K

- Light source life: up to 20,000 hours

- Rated power: 400W

- Power supply: AC 100-240V, 50/60Hz

- Beam angle: 2.5°

- Spot angle: 2.5° to 30°

- Wash angle: 7° to 30°

- Fixed gobos: 9 gobos plus open

- Rotating gobos: 6 gobos plus open

- Color wheel: 9 colors plus white

- Prisms: rotating 8-facet and 16-facet prisms

- Strobe: 1 to 14 flashes per second

- Dimming: electronic linear dimming from 0 to 100%

- Focusing: electronic adjustment from 0 to 100%

- Frost filter: adjustable from 0 to 100%

- Pan movement: 540° with 16-bit resolution

- Tilt movement: 270° with 16-bit resolution

- DMX channels: 19

- Control modes: DMX512, Auto, Master/Slave and sound-activated

- DMX connections: 3-pin XLR input and output

- Protection rating: IP20

- Operating temperature: -20°C to 45°C

- Product dimensions: 232 × 300 × 515mm

- Base dimensions: 232 × 300 × 95mm

- Net weight: 13kg

- Included accessory: protective transport flight case
