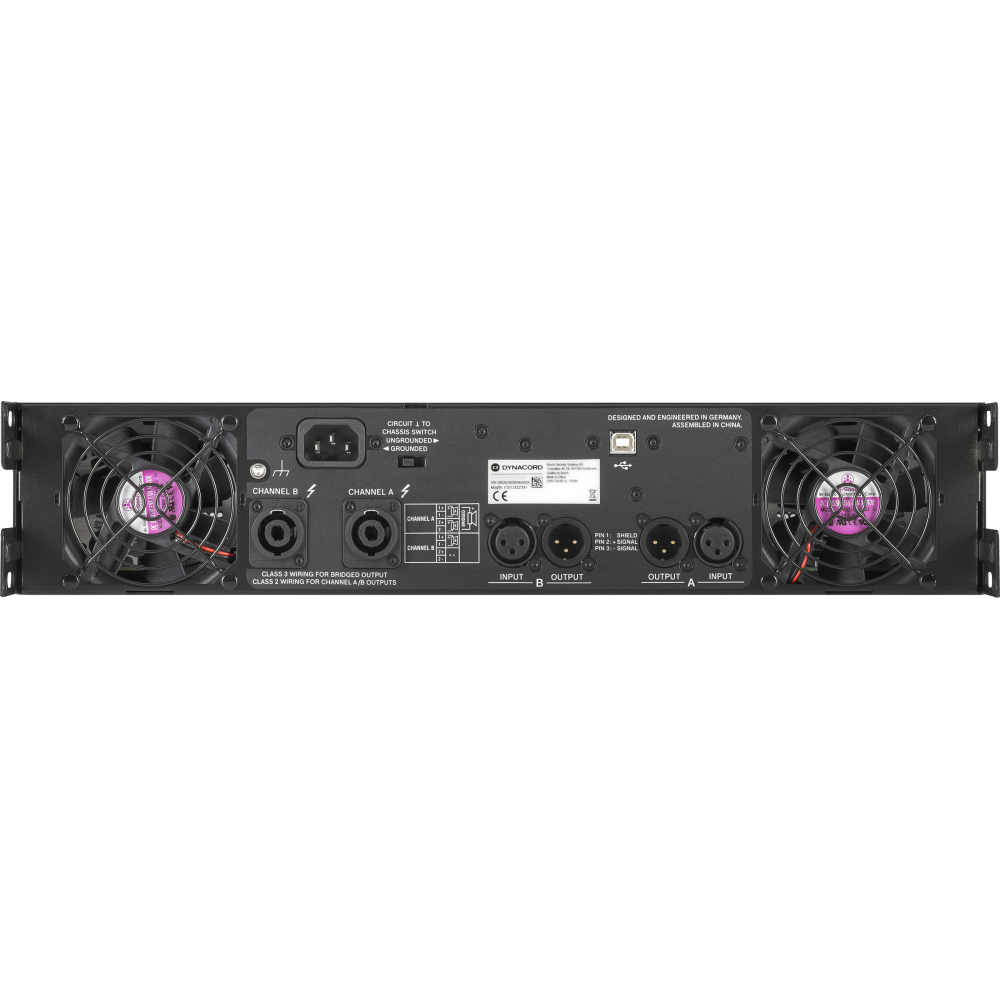

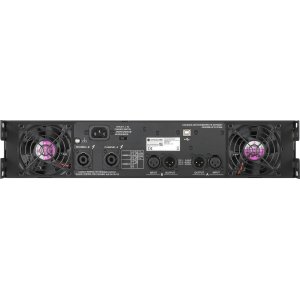

DYNACORD - L3600FD-EU, 2 x 1800 W DSP Power Amplifier

Features

- Professional dual-channel power amplifier

- Designed for live and mobile applications

- Integrated digital signal processor

- Professional loudspeaker processing

- Advanced FIR Drive technology

- Integrated FIR filters

- Market-leading acoustic performance

- Reliable operation for professional use

- True stability with 2-ohm loads

- Efficient Class H output topology

- High maximum output power per channel

- Stereo and bridged operating modes

- Integrated DSP audio limiters

- Configurable output delay per channel

- Array delay with compatible firmware

- 10-band user parametric equalizer

- 5-band Array equalizer per channel

- Load impedance processing

- Integrated front-panel LC display

- Local front-panel control and supervision

- Rotary encoder for intuitive navigation

- Fast and simplified sound-system setup

- Remote control through SONICUE software

- SONICUE functions available with firmware 2.0 or later

- Connectivity optimized for mobile applications

- Efficient front-to-rear airflow cooling

- Automatic three-stage cooling fans

- High-temperature protection

- DC and high-frequency protection

- Back-EMF protection

- Integrated peak-current limiters

- Inrush-current limitation

- Short-circuit protection

- Power-on delay protection

- Black chassis suitable for professional racks

- Optional RMK15 rear rack-mount kit

Specifications

- Brand: DYNACORD

- Model: L3600FD-EU

- Order number: F.01U.312.397

- Product type: Professional DSP power amplifier

- Number of channels: 2

- Output-stage topology: Class H

- Supported load impedances: 2 Ω, 2.7 Ω, 4 Ω and 8 Ω

- Maximum single-channel output at 2 Ω: 3200 W

- Maximum single-channel output at 2.7 Ω: 2700 W

- Maximum single-channel output at 4 Ω: 1800 W

- Maximum single-channel output at 8 Ω: 950 W

- Maximum dual-channel output at 2 Ω: 2 x 3000 W

- Maximum dual-channel output at 2.7 Ω: 2 x 2500 W

- Maximum dual-channel output at 4 Ω: 2 x 1700 W

- Maximum dual-channel output at 8 Ω: 2 x 900 W

- Maximum bridged output at 4 Ω: 6000 W

- Maximum bridged output at 8 Ω: 3400 W

- Maximum RMS voltage swing: 90.6 V

- Voltage gain at 1 kHz: 32 dB

- Frequency response: 10 Hz to 21 kHz, ±1 dB

- THD at 1200 W into 4 Ω: Less than 0.05%

- IMD-SMPTE at 60 Hz and 7 kHz: Less than 0.1%

- DIM30 at 3.15 kHz and 15 kHz: Less than 0.05%

- Maximum input level: +21 dBu

- Active balanced input impedance: 20 kΩ

- Crosstalk at 1 kHz and 100 W into 4 Ω: Less than -80 dB

- A-weighted signal-to-noise ratio: Greater than 109 dB

- A-weighted output noise: Less than -68 dBu

- Signal processing: FIR filters, audio limiters, delays and parametric equalizers

- User equalizer: 10-band with compatible firmware

- Array equalizer: 5-band per channel with compatible firmware

- Remote control: SONICUE Sound System software

- Power requirements: 240 V, 230 V, 120 V or 100 V, factory configured

- Mains frequency: 50 to 60 Hz

- Power consumption at 1/8 maximum output into 4 Ω: 850 W

- Mains fuse for 240 V or 230 V: T15AH

- Mains fuse for 120 V or 100 V: T30AH

- Cooling system: Front-to-rear airflow

- Fan system: Three-stage cooling fans

- Operating temperature: +5 °C to +40 °C

- Safety class: Class I

- Color: Black

- Dimensions: 483 x 88 x 462.4 mm

- Weight: 18.2 kg

- Optional accessory: RMK15 rear rack-mount kit
