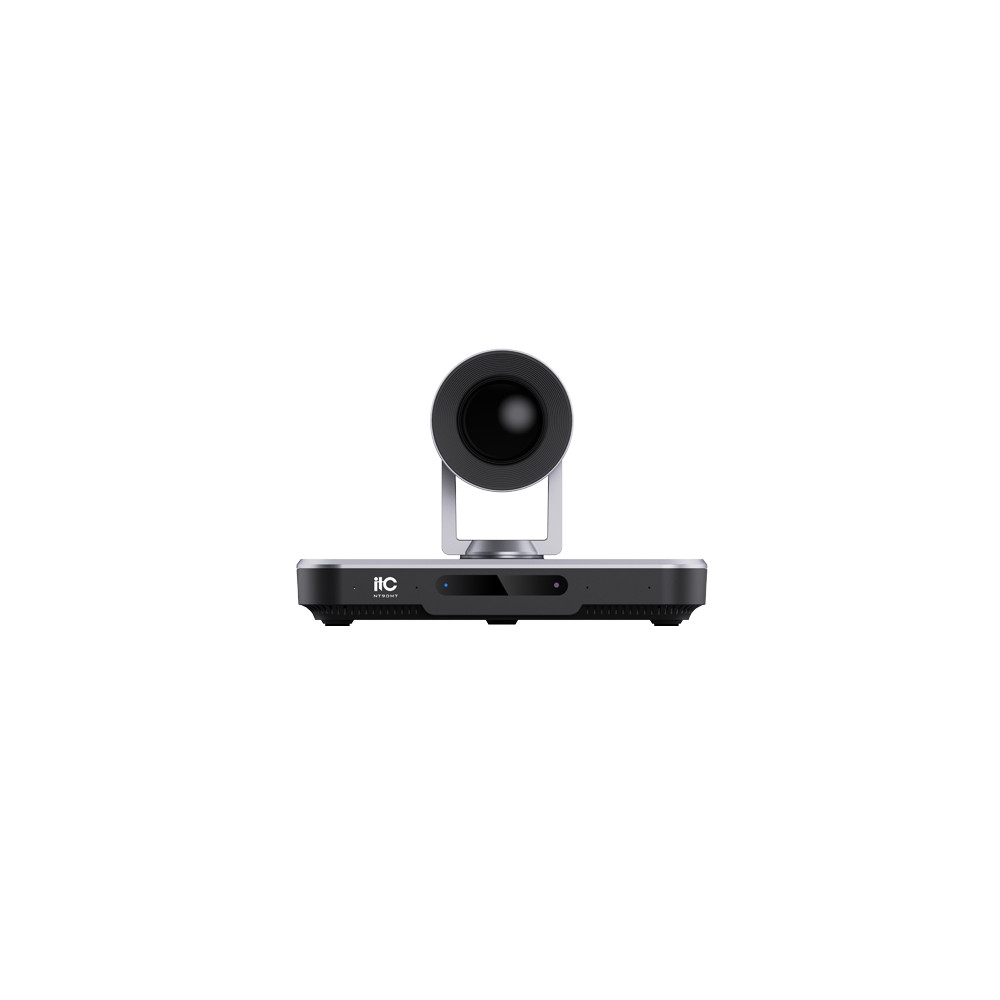

ITC - NT90MT, 4K HD Video Conference Terminal with Integrated Camera

Characteristics

- All-in-one design with integrated camera, microphone, and codec

- Dedicated hardware architecture for maximum reliability

- Embedded Linux operating system

- Supports H.323 and SIP communication protocols

- Supports H.239 and BFCP dual-stream conferencing

- Built-in MCU supporting up to 4-party conferences

- Integrated Ultra HD 4K camera

- 12MP image sensor

- 12x optical zoom

- 72.5° horizontal field of view

- Built-in microphone with 3-meter optimal pickup range

- Maximum pickup distance up to 6 meters

- Ultra HD 4K video resolution

- Supports H.261, H.263, H.263+, H.264, H.264 HP and H.265 codecs

- Supports G.711, G.722, G.722.1, G.722.1C and OPUS audio codecs

- Audio quality up to 48kHz

- Web-based interactive whiteboard function

- Real-time graphical annotations

- Multiple pen colors and thickness options

- Supports up to 5 whiteboard pages

- Remote web-based management

- Open API integration for third-party systems

- Remote screen layout management

- Participant speaking rights control

- Adjustable live-stream latency settings

- Wi-Fi connectivity support

- Optional 4G connectivity

- IEEE802.3at PoE support

Specifications

- Model: NT90MT (MT04M4)

- Built-in MCU: 4 participants

- Video Inputs:

  HDMI ×1

  Integrated HD Camera ×1

- Video Outputs:

  HDMI ×2

- Audio Inputs:

  MIC IN ×1

  LINE IN ×1

  HDMI ×1

- Audio Outputs:

  HDMI ×1

  LINE OUT ×1

- Network:

  Gigabit Ethernet RJ45 ×1

  Built-in Wi-Fi

  Optional 4G

- USB Ports:

  USB 2.0 ×2

  Display Formats:

  4:3

  16:9

- Camera:

  1/2.3" 12MP image sensor

  12x optical zoom

  4K UHD resolution

  72.5° horizontal viewing angle

  Operating Temperature:

  0°C to 35°C

  Storage Temperature:

  -40°C to 55°C

- Humidity:

  10% to 80% operating

  0% to 95% non-operating

- Dimensions:

  265 × 165 × 178 mm

- Weight:

  2.31 kg

- Power Supply:

  DC 12V

  IEEE802.3at PoE
