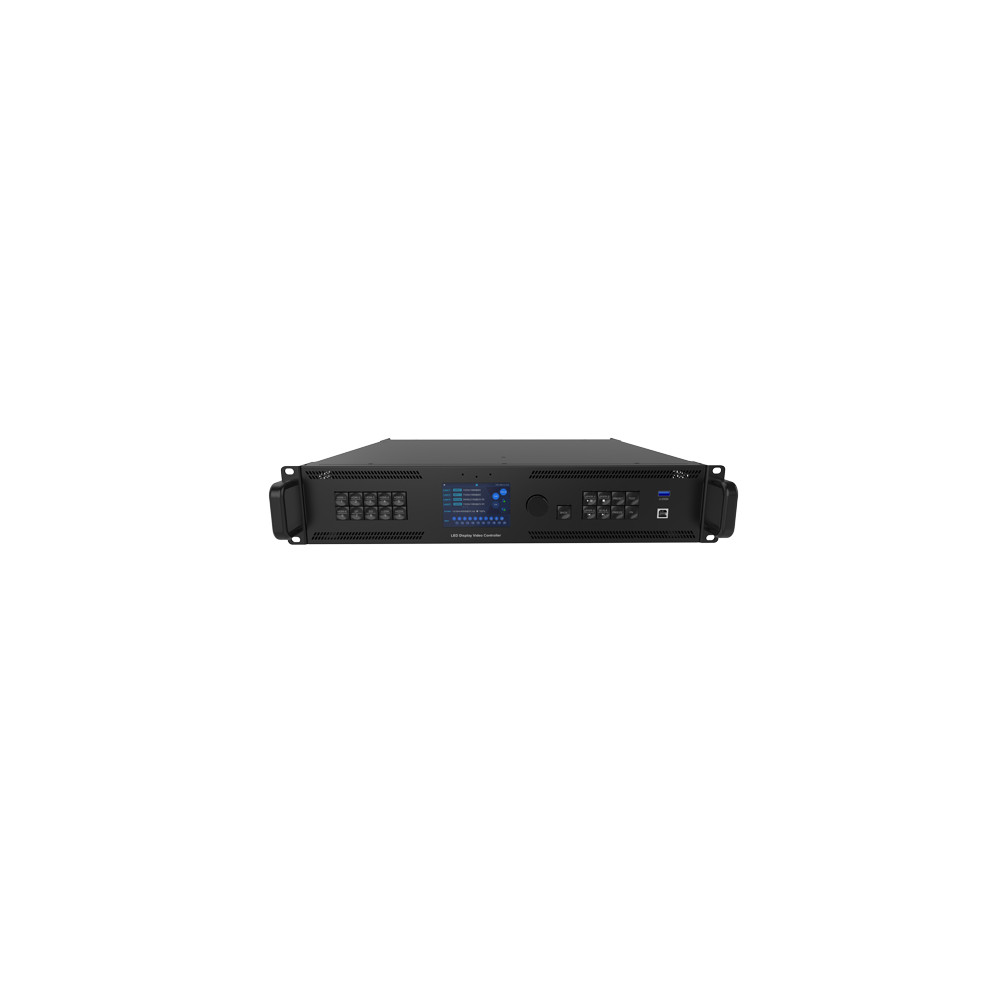

ITC - TV-88X20, High-Performance 4K LED Video Processor

ITC - TV-88X20, High-Performance 4K LED Video Processor

Availability:
ITC
TV88X20XXX

- Up to 13MP capacity

- 20 Gigabit Ethernet outputs

- Supports 12 independent windows

- 4K 60Hz video processing

- 3D and USB playback

Hurry! only 5 items left in stock.
$2,965.17
Quantity

Add to Compare
Add to Wishlist
Availability product:
Medium Stock
  Warranty & Security

Music Plus Warranty: 1-Year Coverage for Manufacturing Defects!

  Shipping Policy

Enjoy fast, reliable, and fully tracked delivery straight to your doorstep!

  Politique retours

Easy returns. Hassle-free exchanges. Total peace of mind.

ITC - TV-88X20, High-Performance 4K LED Video Processor

Informations

The ITC TV-88X20 is a professional LED video processor designed for LED displays, video walls, staging events, and advanced visual installations. Combining video processing, control, and transmission functions in a single unit, it delivers outstanding image quality, flexibility, and reliability for demanding audiovisual environments.

Characteristics

- All-in-one video processing and control server

- Designed for professional LED display systems

- Maximum loading capacity of 13 megapixels

- Maximum width of 16,384 pixels

- Maximum height of 8,192 pixels

- Supports 12 independent display windows

- Individual window size and position adjustment

- Save and recall up to 256 custom scenes

- Point-to-point scaling mode

- Full-screen scaling mode

- Custom scaling mode

- One-click full-screen zoom

- Free source cropping capability

- Point-by-point brightness correction

- Point-by-point chromaticity correction

- Plug-and-play USB media playback

- Independent 3.5 mm audio input and output

- Integrated 3D display support

- High-performance video transmission

- Suitable for rental, stage, control room and fine-pitch LED display applications.

Specifications

- Model: TV-88X20

- Product Type: LED Video Processor

- Maximum Capacity: 13MP

- Maximum Resolution: 16384 × 8192 pixels

Video Inputs

- 2 × HDMI 2.0

- HDMI 2.0 maximum resolution: 3840 × 2160 @ 60Hz

- 1 × DisplayPort 1.2

- DP maximum resolution: 3840 × 2160 @ 60Hz

- 4 × HDMI 1.3

- HDMI 1.3 maximum resolution: 1920 × 1080 @ 60Hz

- 1 × 12G-SDI

- 1 × 3.5mm Audio Input

Video Outputs

- 20 × Gigabit Ethernet RJ45 Outputs

- 1 × 3.5mm Audio Output

- 1 × 12G-SDI Loop Output

- 1 × HDMI 1.3 Preview Output

- 4 × Optional 10G Optical Fiber Interfaces

- 1 × 3D Interface

Control Interfaces

- 2 × Gigabit Ethernet

- 1 × USB 2.0

- 1 × USB 3.0

- 1 × USB Type-B

- 1 × RS232

- 1 × GENLOCK IN-LOOP

- 1 × Light Sensor Port

Power & Physical Specifications

- Power Supply: AC 100-240V, 50/60Hz

- Power Consumption: 82W

- Dimensions: 482.6 × 409 × 94.6 mm

- Net Weight: 7 kg

: TV88X20XXX
