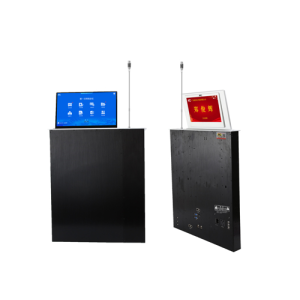

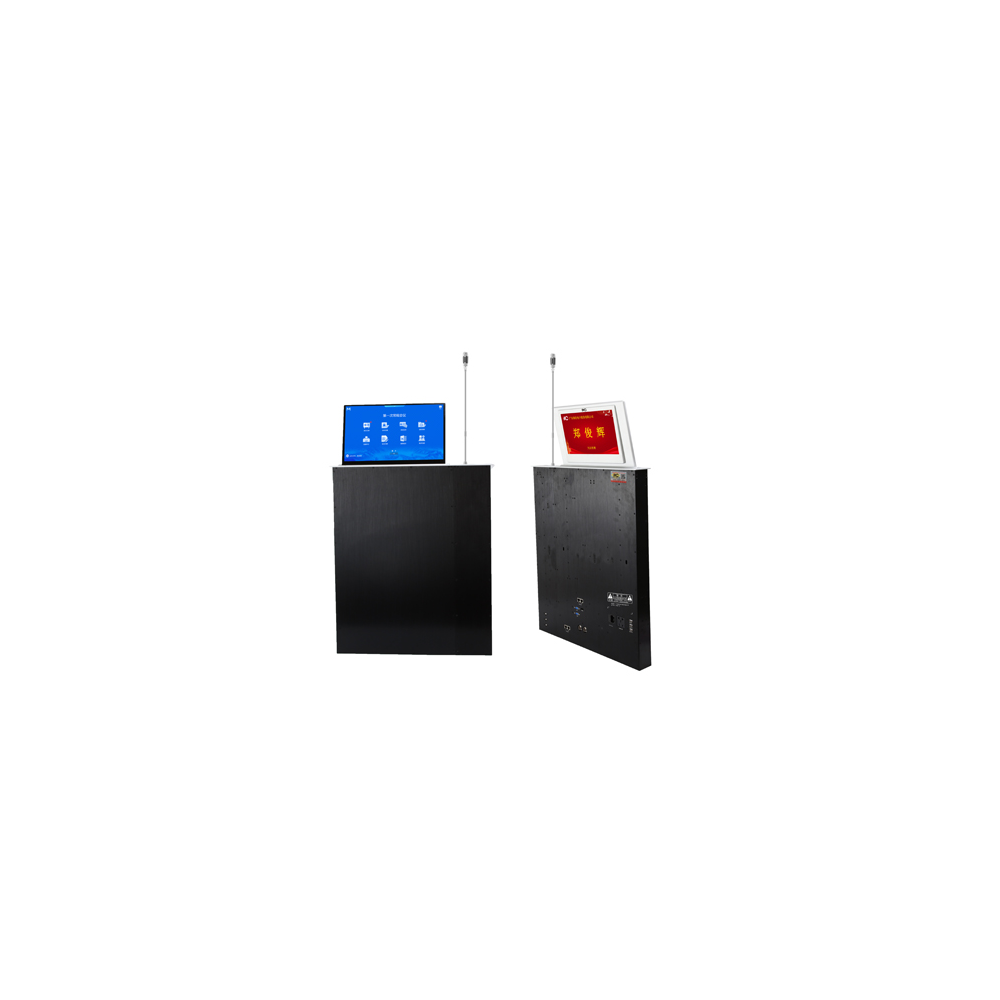

ITC - TS-FE156MT3, Motorized 15.6" Dual-Screen Interactive Conference Monitor with Integrated Microphone

Characteristics

- Motorized touch display

- Dual-screen conference design

- 15.6-inch Full HD main display

- 11.6-inch rear IPS information display

- Integrated cardioid microphone

- Independent screen and microphone lifting

- Automatic microphone straightening

- HDMI and VGA inputs

- Automatic signal detection

- Manual input switching

- Automatic power-saving mode

- Centralized control support

- RS-232 / RS-485 communication

- Daisy-chain connection support

- Front USB port for file access

- Built-in power outlet for conference terminal

- CNC-machined aluminum construction

- Ultra-slim 3 mm tabletop panel

- Flush-mounted conference table installation

- Quiet precision lifting mechanism

Specifications

Main Display

- Model: TS-FE156MT3

- Screen Size: 15.6 inches

- Touch Screen

- Resolution: 1920 × 1080 Full HD

- Aspect Ratio: 16:9

- WLED backlight

- Backlight life: 15,000 hours

- Brightness: 220 cd/m²

- Contrast Ratio: 500:1

- Viewing Angle: 45°/45°/20°/40°

- Screen Thickness: 9.7 mm

Rear Display

- Screen Size: 11.6 inches

- IPS panel

- Non-touch

- Resolution: 1366 × 768 WXGA

- Contrast Ratio: 800:1

- Brightness: 250 cd/m²

- Viewing Angle: 89°

Lift System

- Lifting Time: 28 seconds

- Tilt Angle: 0–30°

- Quiet motorized operation

- Independent microphone and screen control

Connectivity

- 1 × HDMI input

- 1 × VGA input

- RS-232 / RS-485 interface

- USB power port

- USB data port

- 6-pin aviation microphone connector

Microphone

- Cardioid electret microphone

- Frequency Response: 80 Hz–16 kHz

- Sensitivity: -41 ±1.5 dB

- Input Impedance: 680 Ω

- Signal-to-Noise Ratio: >80 dB

- Maximum SPL: 120 dB

- THD: <0.1%

- Microphone Length: 409 mm

Dimensions

- Product Size: 555 × 70 × 650 mm

- Panel Size: 555 × 70 × 3 mm

- Cabinet Size: 538.2 × 59 × 647 mm

- Recommended Cut-out: 540.2 × 61 mm

- Weight: 12.3 kg

Power

- AC 220 V

- 50/60 Hz

- Power Consumption: 25 W

Operating Conditions

- Operating Temperature: -20°C to +50°C

- Relative Humidity: ≤70%
