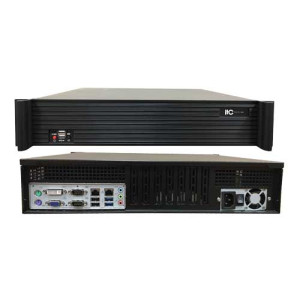

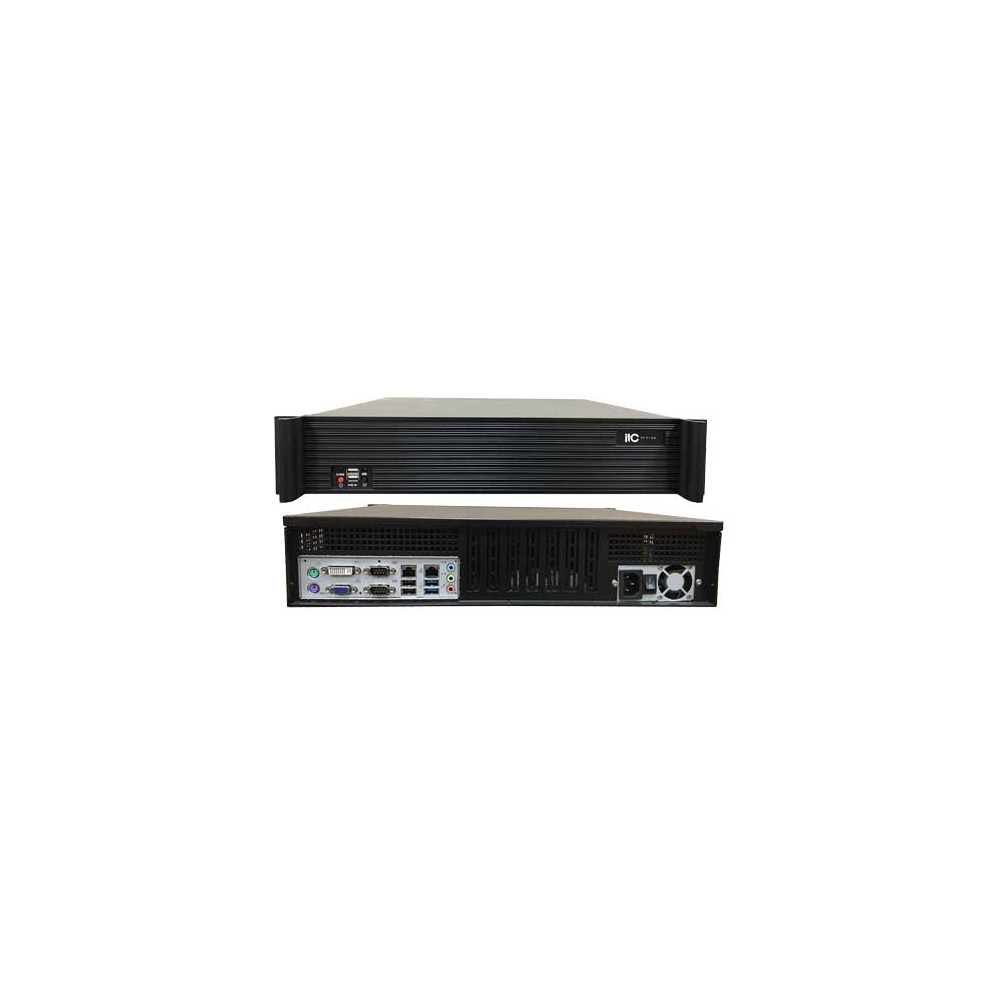

ITC - TV-713A, Professional Distributed Visual Management System

Characteristics

- Third-generation distributed processing architecture

- Embedded Linux operating system

- Centralized video wall management

- Integrated server software and web management platform

- Browser-based B/S architecture

- No client software installation required

- 2U rack-mount server chassis

- High-quality 1.0 mm SGCC steel construction

- Dual high-efficiency cooling fans

- Designed for 24/7 uninterrupted operation

- Standard 2TB hard drive included

- Expandable storage capacity up to 8TB

- Audio and video signal recording capability

- Supports storage from up to 8 input acquisition devices

- Dual-server hot standby redundancy

- Automatic failover protection

- Efficient audiovisual data management and control

- High reliability for mission-critical environments

Specifications

- Model: TV-713A

- Product Type: Distributed Visual Management System

- Chipset: Intel® H81

- CPU Support: LGA1150 processors

- Installed Memory: 4GB DDR3

- Memory Slots: 2

- Maximum Memory: 16GB DDR3 ECC 1600/1333MHz

- Standard Storage: 2TB Hard Drive

- SATA Interfaces: 2 × SATA 2.0, 1 × SATA 3.0

- Hard Drive Bays: 6 × 3.5-inch

- Video Outputs: DVI, VGA

- Network Interfaces: 2 × Gigabit Ethernet

- Hardware Monitoring: disk, RAID, power supply, fan, temperature and I/O performance monitoring

- Operating Temperature: -10°C to +60°C

- Relative Humidity: Up to 90% non-condensing

- Power Supply: AC 220-240V, 50/60Hz

- Power Consumption: 250W

- Dimensions: 400 × 428 × 88.5 mm

- Form Factor: 2U Rack Mount
