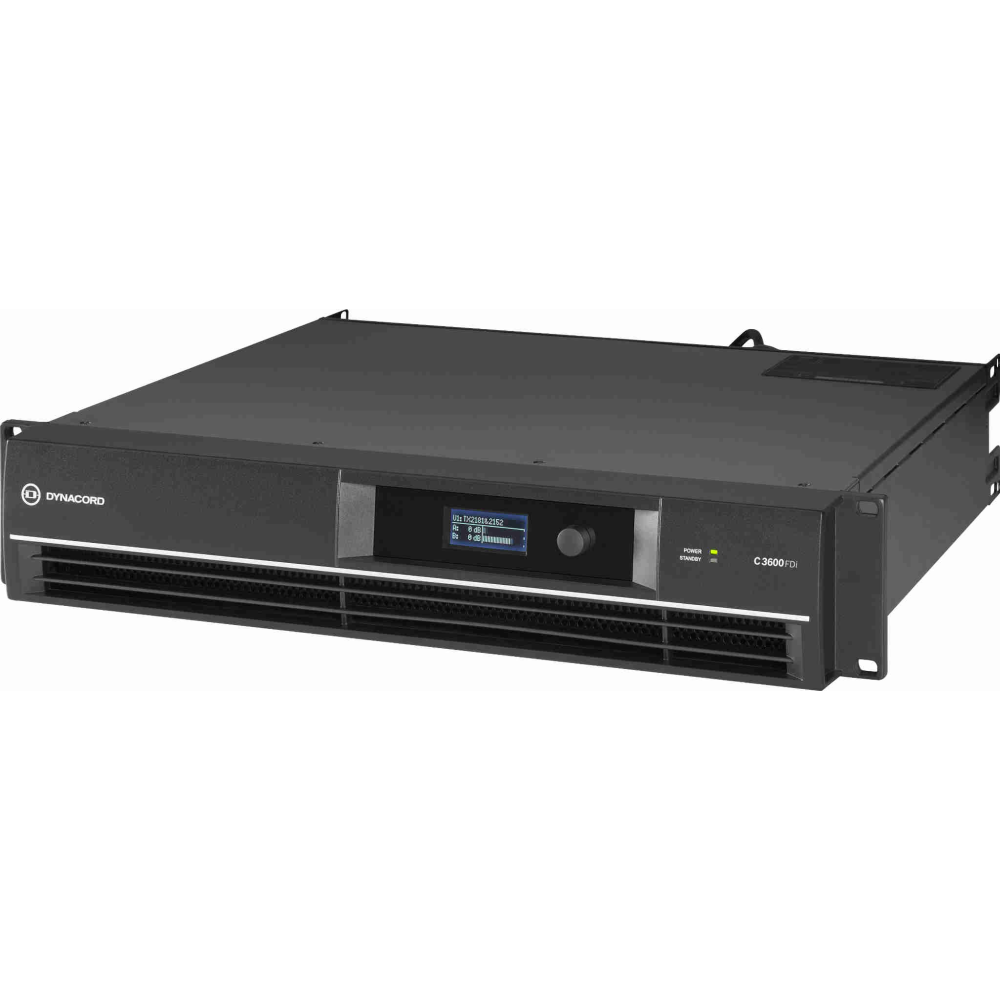

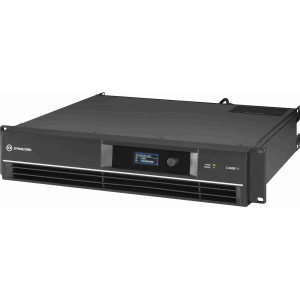

DYNACORD - C3600FDi-EU, 2 × 1800 W DSP Power Amplifier for Fixed Installations

Features

- Professional two-channel DSP power amplifier

- Specifically designed for fixed audio installations

- Optimized for continuous 24/7 operation

- Maximum output up to 1800 W per channel into 4 ohms

- Maximum single-channel output up to 3200 W into 2 ohms

- Maximum bridged output of 6000 W into 4 ohms

- Supports 2, 2.7, 4 and 8-ohm low-impedance loads

- Direct operation of 100 V distributed loudspeaker lines

- No output transformer required for 100 V operation

- Efficient Class H amplifier technology

- Fully integrated digital signal processor

- Professional FIR Drive loudspeaker processing technology

- Integrated FIR filters for optimized audio performance

- Integrated digital audio limiters

- 10-band user parametric equalizer per channel with compatible firmware

- 5-band Array equalizer per channel with compatible firmware

- Independently adjustable output delay for each channel

- Integrated Array delay with compatible firmware

- Load impedance measurement and monitoring

- Configurable and selectable DSP presets

- Control and configuration with SONICUE software

- Front-panel LCD control and monitoring interface

- Rotary encoder for navigating the DSP menus

- Front-panel Power and Standby indicators

- Balanced audio inputs on Euroblock connectors

- Secure Euroblock loudspeaker output connection

- USB type B port for configuration

- Integrated GPIO inputs and outputs

- Remote preset selection through GPIO

- Floating relay contacts for protection status indication

- Remote power-on connector

- Selectable power-on delay

- Energy-saving standby mode

- Ground Lift function for reducing ground-loop noise

- Integrated peak-current limiters

- High-temperature protection

- DC voltage protection

- High-frequency protection

- Back-EMF protection

- Short-circuit protection

- Start-up inrush-current limiting

- Delayed loudspeaker output activation

- Active front-to-rear cooling

- Three-stage cooling fans

- Independent thermal monitoring for both channels

- Professional standard 19-inch rack chassis

- Compact two-rack-unit design

- Suitable for auditoriums, hotels, houses of worship, sports venues and public spaces

Specifications

- Brand: DYNACORD

- Model: C3600FDi-EU

- Series: C Series

- Product type: Fixed-installation DSP power amplifier

- Number of channels: 2

- Amplifier technology: Class H

- Maximum single-channel output into 2 ohms: 3200 W

- Maximum single-channel output into 2.7 ohms: 2700 W

- Maximum single-channel output into 4 ohms: 1800 W

- Maximum single-channel output into 8 ohms: 950 W

- Maximum dual-channel output into 2 ohms: 2 × 3000 W

- Maximum dual-channel output into 2.7 ohms: 2 × 2500 W

- Maximum dual-channel output into 4 ohms: 2 × 1700 W

- Maximum dual-channel output into 8 ohms: 2 × 900 W

- Maximum bridged output into 4 ohms: 6000 W

- Maximum bridged output into 8 ohms: 3400 W

- High-impedance line operation: Direct 100 V operation

- Output transformer for 100 V operation: Not required

- Voltage gain: 32 dB

- Maximum input level: +21 dBu

- Input impedance: 20 kΩ, active balanced

- Frequency response: 10 Hz to 21 kHz, ±1 dB

- Total harmonic distortion: Below 0.05%

- IMD-SMPTE distortion: Below 0.1%

- DIM30 distortion: Below 0.05%

- A-weighted signal-to-noise ratio: Above 109 dB

- Crosstalk at 1 kHz: Below -80 dB

- A-weighted output noise: Below -68 dBu

- Signal processing: Integrated FIR Drive DSP

- DSP filters: FIR filters and parametric equalizers

- Limiters: Integrated digital audio limiters

- Delay: Adjustable output delay per channel

- Monitoring: Load impedance measurement

- Software control: SONICUE Sound System Software

- Requirement for advanced SONICUE functions: Firmware 2.0 or higher

- Display: Front-panel LCD screen

- Local control: Multifunction rotary encoder

- Audio inputs: 2 balanced 3-pin Euroblock inputs

- Loudspeaker outputs: 4-pin Euroblock connector

- Configuration interface: USB type B

- External control: Power Remote and GPIO

- Status output: Floating relay contacts

- Additional function: External preset selection

- Ground Lift function: Yes

- Energy-saving standby mode: Yes

- Protection circuits: Audio limiters, temperature, DC, HF and Back-EMF

- Additional protection: Peak current, inrush current and short circuit

- Turn-on delay: Yes

- Cooling system: Three-stage cooling fans

- Airflow direction: Front to rear

- EU version power supply: 230 V, 50 to 60 Hz

- Power consumption at 1/8 maximum output into 4 ohms: 850 W

- Mains fuse for 230 V: T15AH

- Operating ambient temperature: +5°C to +40°C

- Safety class: Class I

- Color: Black

- Installation: Standard 19-inch rack, 2U

- Dimensions: 483 × 88 × 462.4 mm

- Weight: 18.2 kg

- Optional accessory: RMK15 rear rack-mount kit
