ITC - T-7701Z, 8-Zone IP Network Audio Decoding Adapter

Informations

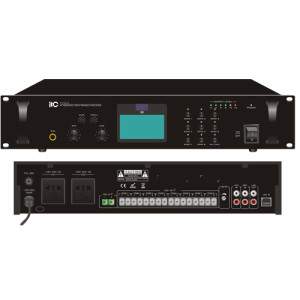

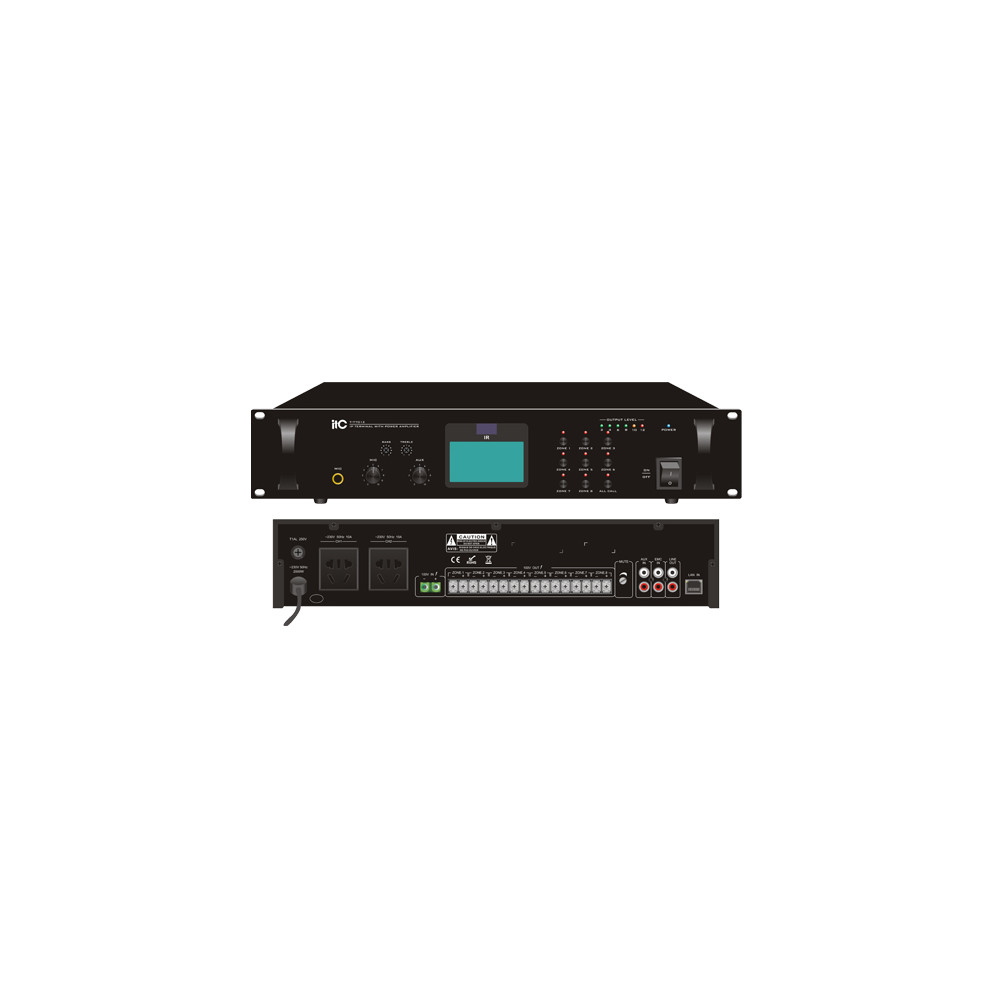

The ITC T-7701Z is a professional IP network audio decoding adapter designed for IP public address systems. It enables background music, paging, and emergency broadcasting across up to eight independent zones while providing centralized management and high-quality digital audio transmission.

Characteristics

- Professional IP network audio decoder

- Independent control of 8 broadcast zones

- Built-in digital audio decoding module

- 16-bit CD-quality audio transmission

- Supports TCP/IP and UDP protocols

- 3.4-inch industrial LCD display

- Infrared remote control included

- On-demand playback from VOD server

- Microphone input with independent volume control

- AUX input with independent adjustment

- Priority EMC emergency input

- Independent bass and treble controls

- Dual RCA audio outputs

- Two switched AC power outlets

- Intelligent power management

- Automatic standby when no audio is detected

- Automatic wake-up on audio signal

- Three-level audio priority management

- Individual or grouped zone broadcasting

- Compatible with routers, switches and Internet networks

- Supports LAN, 2G, 3G and 4G network environments

- Remote firmware upgrades

- Standard 19-inch rack-mount chassis

- Ideal for schools, hotels, offices, shopping malls and public facilities

Specifications

- Brand: ITC

- Model: T-7701Z

- Product type: IP network audio decoding adapter

- Network interface: RJ45

- Network speed: 100 Mbps

- Protocols: TCP/IP, UDP

- Audio format: MP3

- Audio quality: 16-bit CD quality

- Sampling rate: 8 kHz to 48 kHz

- EMC input sensitivity: 775 mV (unbalanced)

- AUX input sensitivity: 350 mV (unbalanced)

- Microphone input sensitivity: 5 mV (unbalanced)

- Audio outputs: 2 RCA

- Output level: 1000 mV

- Output impedance: 470 Ω

- Treble adjustment: ±10 dB

- Bass adjustment: ±10 dB

- Frequency response: 80 Hz to 16 kHz (+1/-3 dB)

- Total harmonic distortion: ≤1%

- Signal-to-noise ratio: ≥65 dB

- Switched AC outlets: 2 × 220 V / 10 A

- Maximum power consumption: 2000 W

- Standby power consumption: <10 W

- Power supply: AC 220 V, 50 Hz

- Operating temperature: 5°C to 40°C

- Operating humidity: 20–80% RH, non-condensing

- Dimensions: 484 × 303 × 88 mm

- Mounting: 19-inch rack (2U)

- Net weight: 4.8 kg
