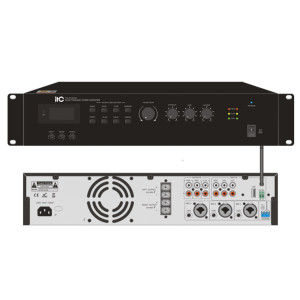

ITC - T-2500ME, 2-channel Multimedia Amplifier, 2X500W

Characteristics

- The audio source has multiple inputs such as optical fiber, coaxial, USB, Bluetooth, line, microphone, etc.;

- Built-in DSP sound effect processing. With functions such as delay, reverberation, echo, anti-howling (level 7), tone shift (level 10), and vocal excitation;

- The control function is realized through infrared remote control, coded switches, and buttons;

- Panel LCD screen intuitively displays of various functions and working status;

- Provide 3-channel RCA line inputs, 3-channel balanced microphone with phantom power inputs;

- With DSP processor, multiple preset scene modes;

- The volume of each microphone is independently adjustable, the effect is adjustable, and the music volume is independently adjustable.Treble, Alto, Bass adjustment;

- Built-in RS485 communication central integrated control function.

- Support USB playback, support MP3, WAV, APE, FLAC and other lossless high-fidelity music formats;

- With the soft start protection function of switch , with voltage limit, short circuit, overload, and overheat protection;

- Panel: Aluminum alloy material;

- Built-in 48V phantom switch control function;

- Support Bluetooth function. It can connect with mobile phones, computers and other devices;

- Each microphone input has a gain adjustment function, enabling the best match between microphone and the input state of the amplifier;

- Support constant impedance and constant voltage (4Ω/100V) switching function.

Specifications

- Model: T-2240ME

- Rated output power: 2x240W@4R/2x240W@100V

- Input sensitivity and impedance:

MIC1, 2, 3,: ±2.5mV/600Ω- ±200mV/10KΩ, with phantom balanced input)

DVD: 350mV/10KΩ, (unbalanced input)

VCD: 350mV/10KΩ, (unbalanced input)

BMG: 350mV/10KΩ, (unbalanced input)

Optical fiber, coaxial:1000mV

- Output:

SW (150Hz): 1V/470Ω

PRE: 1V±50mv/470Ω

REC: 200mV±20mv/470Ω

- Microphone tone

Bass: ±10dB at 100Hz

Alto: ±10dB at 2KHz

Treble: ±10dB at 10KHz

- Music tone

Bass: ±10dB at 100Hz

Alto: ±10dB at 2KHz

Treble: ±10dB at 10KHz

- THD: Power amplifier rated output power 1Kz (under 1/8A power condition) ≤0.1%-

- USB playback: Support MP3, WAV, APE, FLAC

- Communication: RS485 communication central control integrated control function

- Frequency response:

DVD, VCD, BGM: 20HZ (±3dB)-20KHZ (±3dB)

Mic: 50HZ (±3dB)-16KHZ (±3dB)

- SNR:

Mic: ≥85dB,

Music: ≥85dB

- Protection:

Overload, short circuit, overvoltage and undervoltage protection.

- Indicator light:

Power supply, output level

- Supply voltage:~220V 50Hz/~110V/60Hz

- Power loss: 600W

- Weight: 5Kg

- Size(LxWxH): 430x395x88mm
