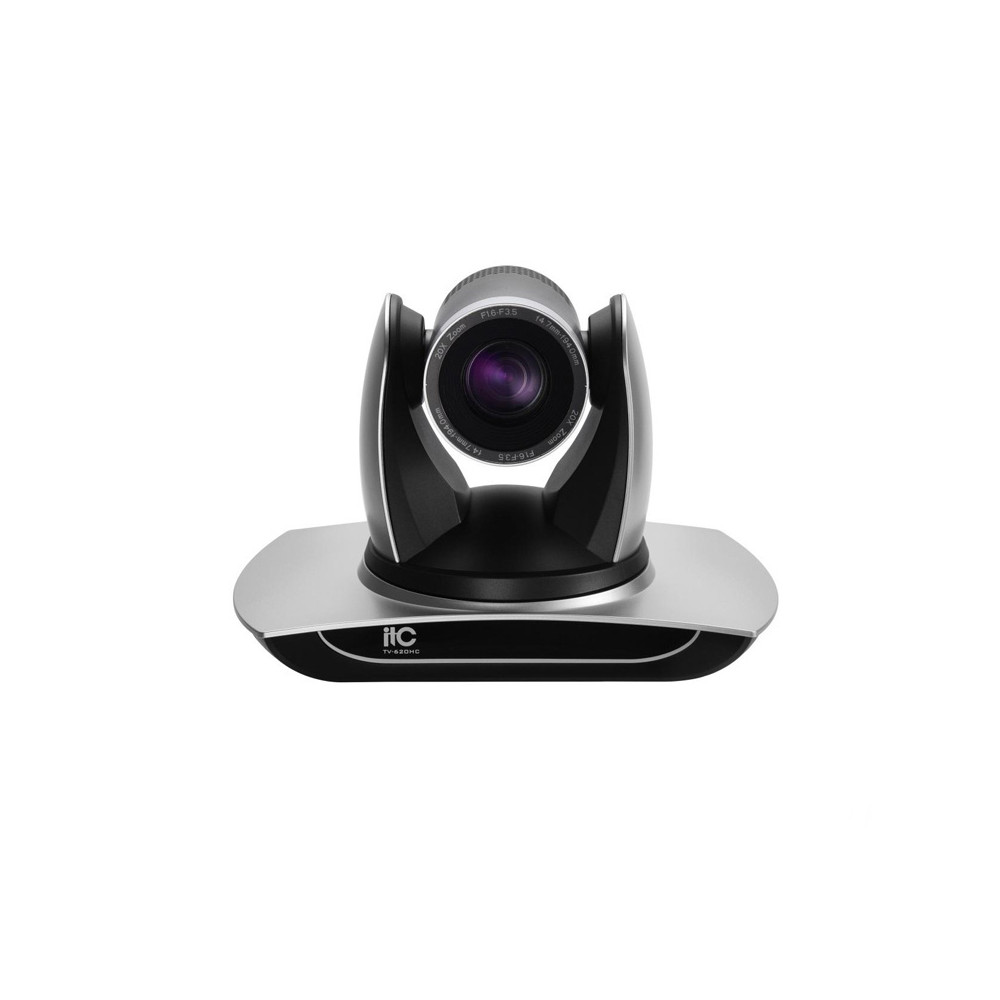

ITC - TV-620HC, Full HD Video Conference Camera

Characteristics

- High quality 1/2.8 inch CMOS sensor (2.07 MP).

- Full HD 1920x1080 resolution up to 60 FPS.

- Supported video formats:

  1080P: 60/50/30/25 FPS.

  1080I: 60/50 FPS.

  720P: 60/50/30/25 FPS.

- 20× optical and 10× digital zoom (f = 4.7~94 mm).

- Horizontal rotation: -170° to +170° (speed: 0.1°~100°/s).

- Vertical rotation: -30° to +90° (speed: 0.1°~45°/s).

- Viewing angle: 2.9° ~ 55.4°.

- Advanced noise reduction (2D/3D DNR).

- Fast, precise and stable autofocus.

- Automatic, manual or preset white balance.

- Ultra-quiet PTZ with precision motor.

- Support for multiple control protocols (VISCA, PELCO-D/P).

- Compatible with network protocols (RTSP, RTMP, ONVIF, GB/T28181).

- H.265/H.264 video compression (dual video stream).

- Dual audio input (AAC, MP3, G.711).

- Low energy consumption with sleep mode (<400 mW).

- Ideal for conferences, telemedicine, distance education and live streaming.

Specifications

- Dimensions: 258 × 172 × 169 mm.

- Weight: 1.54 kg.

- Video interfaces: HDMI (DVI), 3G-SDI, LAN.

- Audio interfaces: Dual line input (3.5 mm).

- Control protocol: RS485, VISCA, PELCO-D, PELCO-P.

- Power supply: AC110V-220V adapter, DC12V/1.5A output.

- Power consumption: 12 W max.

- Operating temperature: -10°C to +50°C.

- Operating humidity: 20% to 80% (non-condensed).
