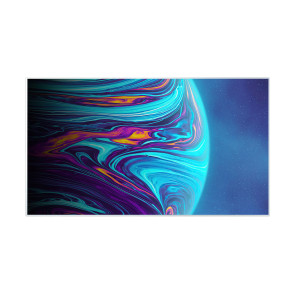

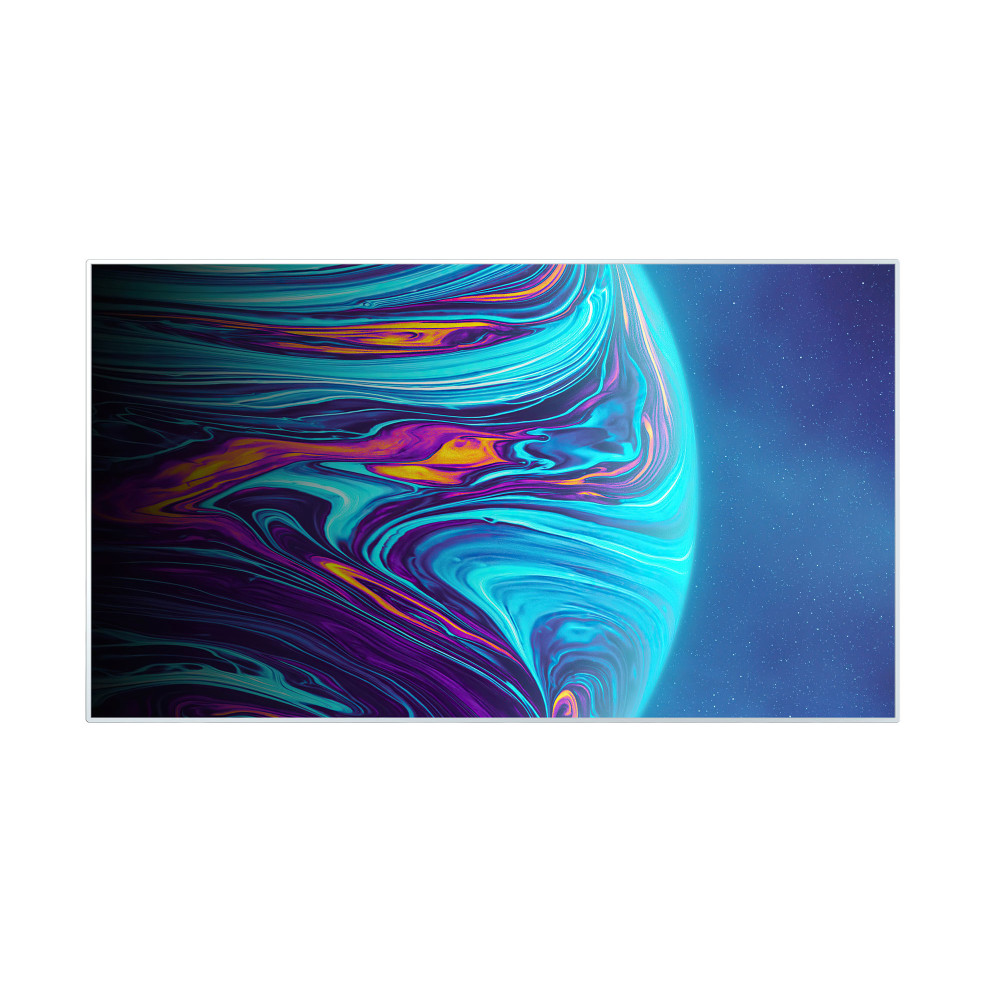

ITC - TV-W110-YZT, 110-Inch Full Color Indoor LED Video Wall with 10-Point Touch Screen

Characteristics

- Indoor Full Color LED Video Wall

- Seamless bezel-free display

- High color accuracy and uniformity

- Gamma correction technology

- Point-by-point brightness and color calibration

- Ultra-wide 175° viewing angle

- High refresh rate display

- Smooth image rendering

- Nano Magic Color Screen technology

- Infrared 10-point touch capability

- Finger and stylus touch support

- Built-in Android operating system

- Office and collaboration applications support

- One-touch power management

- 2-second wake-up from sleep mode

- Dual Wi-Fi functionality

- Simultaneous hotspot and network connection

- Multi-screen interaction support

- Wireless casting up to four screens

- Compatible with Windows, macOS, iOS and Android

- Wireless control via Android smartphones and tablets

- Interactive synchronized display

- Front maintenance design

- Fanless silent operation

- Natural heat dissipation

- Energy-efficient operation

- Wall-mounted installation

- Mobile floor stand installation

- Hanging installation support

Specifications

Display

- Screen Size: 110 inches

- Resolution: 1920 × 1080

- Display Area: 2440 × 1372 mm

- Screen Size with Frame: 2476 × 1408 mm

- LED Type: SMD1010 Black Light

- Pixel Pitch: 1.27 mm

- Pixel Density: 619,414 pixels/m²

- Pixel Configuration: 1R1G1B

- Brightness: 0–800 cd/m²

- Contrast Ratio: ≥10000:1

- Grayscale: 12/14/16-bit

- Brightness Uniformity: ≥99%

- Horizontal Viewing Angle: ≥175°

- Vertical Viewing Angle: ≥175°

Performance

- Refresh Rate: ≥3840 Hz

- Frame Rate: ≥60 Hz

- Recommended Viewing Distance: ≥3.8 m

- Lifespan: ≥100,000 hours

- MTBF: ≥20,000 hours

- Failure Rate: ≤1/100,000

System

- Operating System: Android 11

- CPU: 1.8 GHz 64-bit Quad-Core

- GPU: Mali G52

- RAM: 4 GB

- Internal Storage: 32 GB

Connectivity

- HDMI Input ×1

- HDMI Loop Output ×1

- USB 3.0 ×1

- USB 2.0 ×1

- RJ45 Gigabit Ethernet ×1

- USB Type-C ×1

- Audio Output ×1

- SPDIF Optical Audio Output ×1

- RS232 ×1

- Wi-Fi

- Bluetooth

- Infrared

Power

- Power Supply: AC 90–270V, 50/60Hz

- Operating Voltage: DC +4.2V

- Average Power Consumption: ≤733W

- Maximum Power Consumption: ≤2200W

Physical Specifications

- Cabinet Material: Die-Cast Aluminum

- Weight: 104 kg (without bracket)

- Front Maintenance Design

- Protection Rating: IP5X / IP65 (front module surface only)
