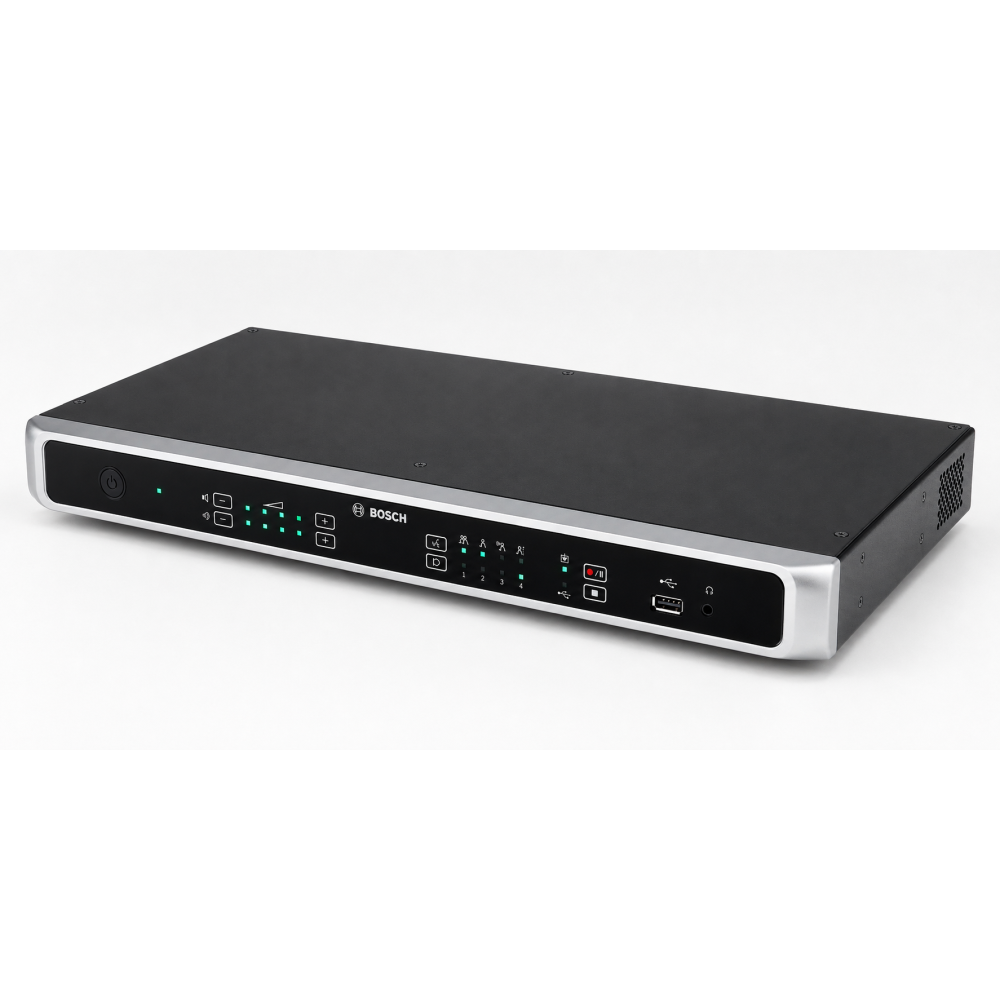

Bosch - CCSD-CURD, CCS 1000 D Control Unit with MP3 Recorder and DAFS Feedback Suppression

Features

- Control unit for CCS 1000 D system

- Controls up to 80 Discussion Devices

- Expandable up to 245 Discussion Devices

- Plug-and-play functionality for quick installation

- Built-in MP3 recorder

- Recording to internal memory

- Direct recording to USB memory

- Supports USB drives up to 128 GB

- Up to 4,000 recording hours at 64 kbit/s

- Up to 8 hours internal recording at 64 kbit/s

- Built-in Digital Acoustic Feedback Suppression

- DAFS improves speech intelligibility

- Intuitive web browser control interface

- Configuration from tablet, laptop or PC

- Advanced microphone management

- Up to 4 open microphones from control unit

- Up to 25 open microphones through web interface

- Integrated waiting list management

- Multiple discussion operating modes

- Built-in automatic HD camera control support

- Supports compatible Bosch conference cameras

- RESTful API for system integration

- Built-in monitoring loudspeaker

- Headphone output for local monitoring

- Audio file pre-listening functionality

- Four RCA outputs for individual recording

- XLR microphone input with phantom power

- RCA input for external audio source

- RCA output for sound reinforcement system

- Ethernet interface for network configuration

- Micro USB port for service and transfers

- Two discussion device trunk connections

- Up to 40 devices per trunk

- Integrated energy-saving mode

- Standby mode for meeting breaks

- Rack or tabletop installation

- Designed for meetings and conferences

- Suitable for courtrooms and council chambers

Specifications

- Brand: Bosch

- Model reference: CCSD-CURD

- Series: CCS 1000 D

- Type: Control Unit with recorder and DAFS

- Capacity without extension: 80 Discussion Devices

- Devices per trunk: 40

- Number of system trunks: 2

- Maximum expanded capacity: 245 Discussion Devices

- AC input voltage: 100-240 V AC

- Power frequency: 50/60 Hz

- DC output: 24 V / 6 A

- Adapter current consumption: 1.9 A at 100 V / 1 A at 240 V

- System frequency response: 30 Hz-20 kHz

- Sample rate: 44.1 kHz

- Ethernet speed: 1 Gb/s

- Minimum signal-to-noise ratio: 93 dBA

- THD + noise: 0.10%

- Recording format: MP3

- Recording bit rates: 64 / 96 / 128 / 256 kbit/s

- Recording sample rate: 44.1 kHz

- Internal memory: 225 MB

- Maximum internal recording: 8 hours at 64 kbit/s

- Maximum USB capacity: 128 GB

- Maximum USB recording: 4,000 hours at 64 kbit/s

- USB format: FAT32

- Headphone output: 3.5 mm stereo jack

- Front USB port: 1

- Ethernet RJ45 port: 1

- Microphone input: 1 × female XLR with phantom power

- Audio input: 1 × RCA

- Sound reinforcement output: 1 × RCA

- Individual recording outputs: 4 × RCA

- Micro USB port: 1

- Dimensions: 45 × 440 × 200 mm

- Weight: 3.4 kg

- Mounting: 19-inch 1U rack or tabletop

- Material: Painted metal

- Main color: RAL 9017 Traffic Black

- Front panel trim: RAL 9022 Pearl Light Grey

- Operating temperature: 5 °C to 45 °C

- Storage temperature: -40 °C to 70 °C

- Relative humidity: 5% to 98% non-condensing
