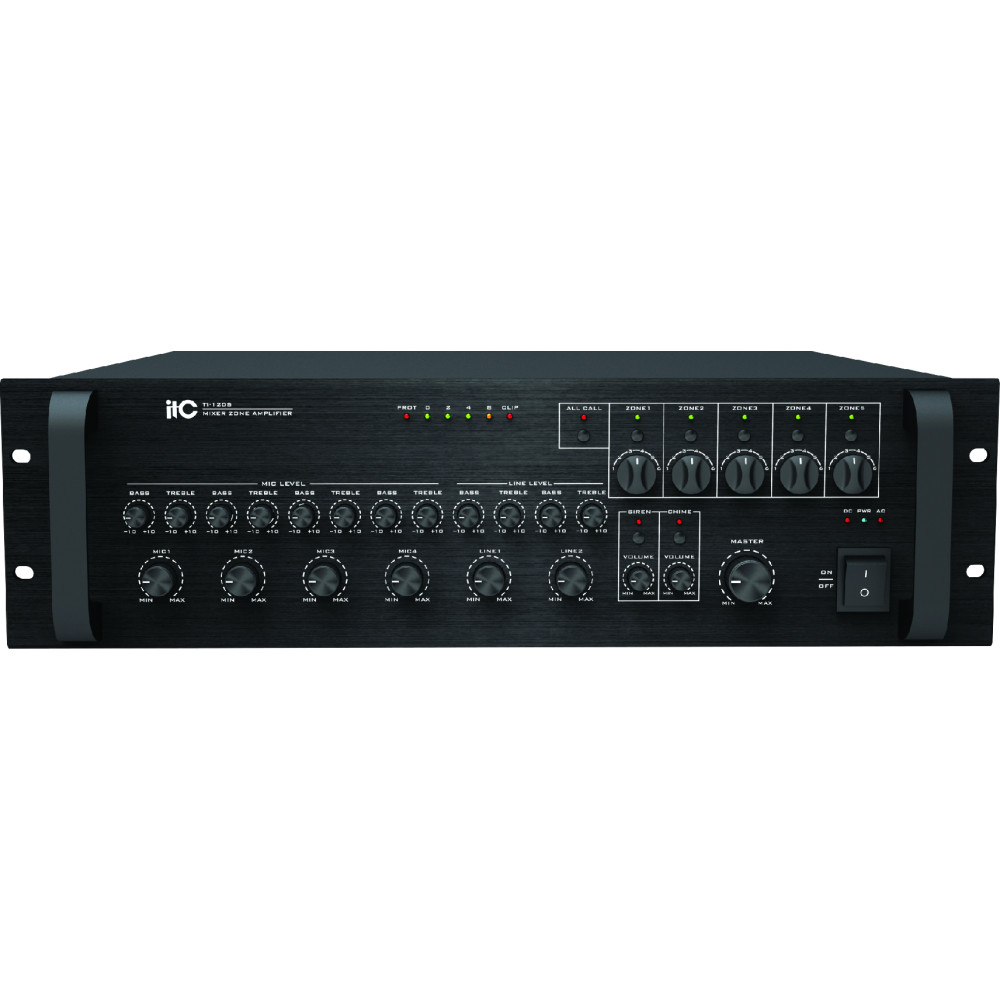

ITC - TI-240S, 5 Zones, 7 Inputs Mixer Amplifier 240W RMS

Characteristics

- 7 inputs 5 zone mixer amplifier

- Rack mount amplifier in 3U type

- Rated power output 120W, 240W, 350W and 500W

- 70V, 100V and 4-16ohm speaker terminals

- 5 zone 100V outputs and all zones outputs

- 4 balanced combined mic inputs of 1/4''phone jack and XLR type with separate gain control and phantom power switch

- 2 dual RCA line inputs, TEL and EMC input

- Each zone speaker output with separate volume control

Specifications

- Compatible with remote paging console T-318

- Built-in siren and 2/4 tone chime

- Volume control over master, Mic1-4, Line1-2, chime, siren, all zone output and each 5 zone output, tel input and remote paging mic

- 5 levels of input priority from high to low: EMC input, tel input, remote paging console, Mic1, siren/chime over other inputs

- REC output for tape recorder

- PRE Output and AMP input for extra signal processor

- AC 110V or 220V and DC 24V operation
