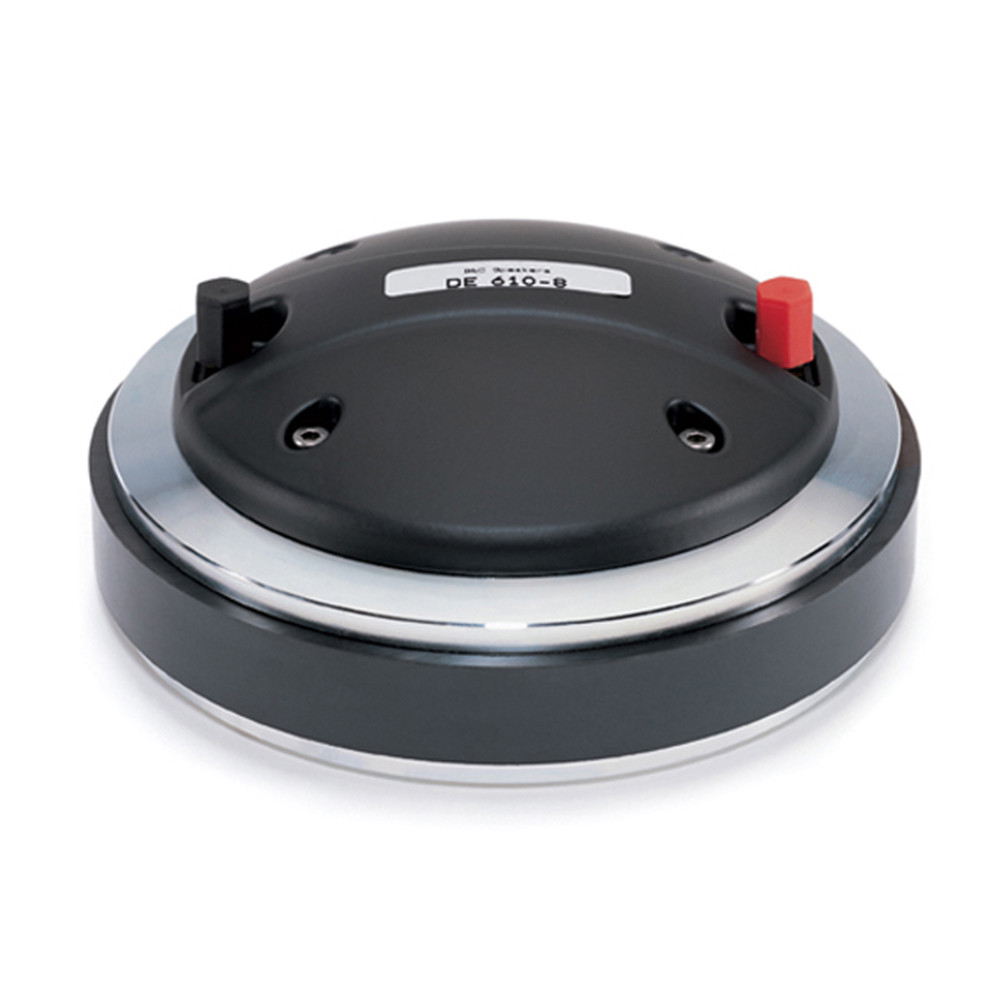

B&C DE610 – 1.4″ HF Compression Driver 8 Ω, 160 W, Titanium Diaphragm

Characteristics

- Continuous program power: 160 W

- 65 mm aluminum voice coil

- Titanium diaphragm

- 108 dB sensitivity

- Shorting copper cap for extended HF response

Specifications

- Horn throat: 36 mm (1.4″)

- Nominal impedance: 8 Ω (min ~7.6 Ω)

- Nominal power handling: 80 W

- Frequency range: 1 kHz – 18 kHz

- Recommended crossover: 1.2 kHz

- Inductance: 0.15 mH

- Flux density: 1.75 T

- Overall diameter: 156 mm

- Depth: 65 mm

- Net weight: 3.8 kg

- Mounting: Four M6 holes (90°) on 102 mm diameter

- Shipping weight: 3.92 kg

- Shipping box: 190 × 190 × 80 mm

- Service kit: MMD6108
