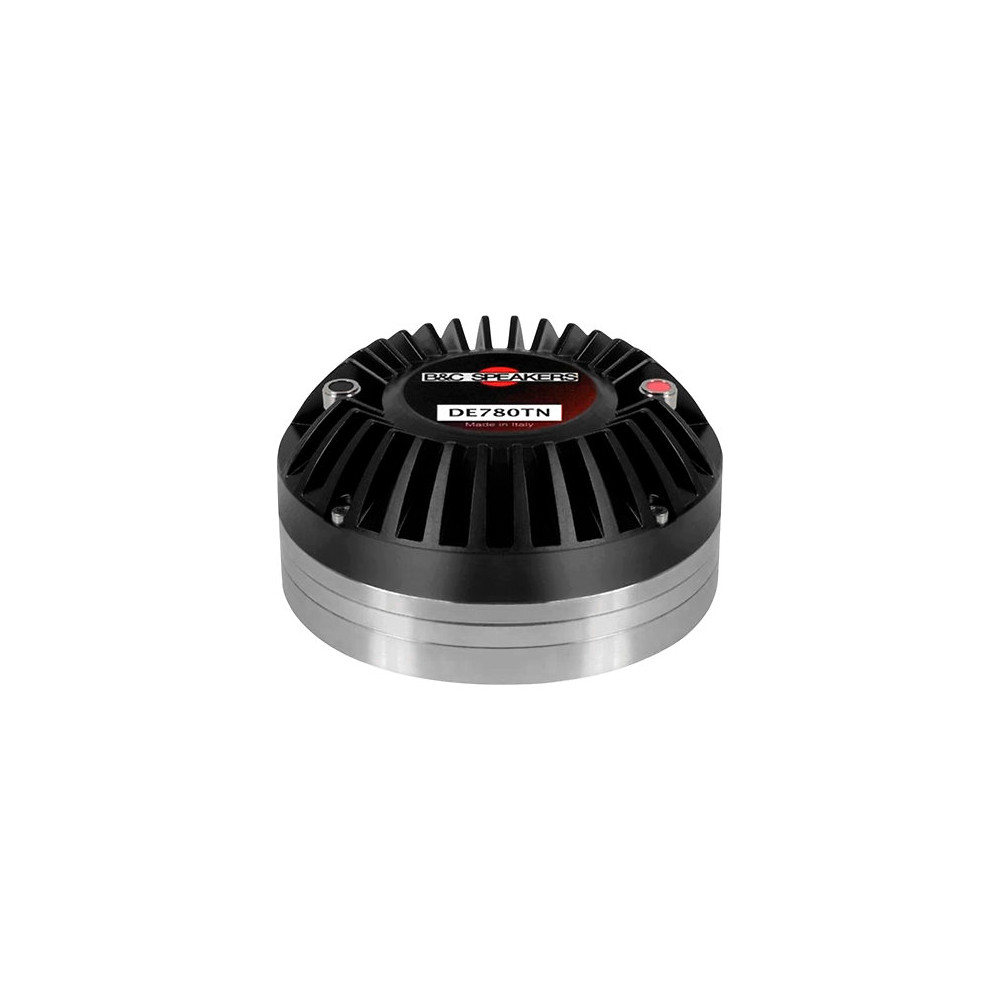

B&C DE780TN – Compression Driver 1.4″ 8 Ω , 220 W Continuous, 108 dB, Titanium Diaphragm

B&C DE780TN – Compression Driver 1.4″ 16 Ω , 220 W Continuous, 108 dB, Titanium Diaphragm

Name: B&C DE780TN – Compression Driver 1.4″ 16 Ω , 220 W Continuous, 108 dB, Titanium Diaphragm
Brand: B&C Speakers
SKU: DE780TNXXX
Price: 331.04 USD
Availability: InStock

Availability:

Brand : B&C Speakers

Reference : DE780TNXXX

- 220 W continuous power

- Compact 1.4″ throat

- 75 mm aluminum voice coil

- 500–18 000 Hz frequency range

- High sensitivity 108 dB

Hurry! only 9 items left in stock.

$331.04

Quantity

Add to Compare

Add to Wishlist

Availability product:

Medium Stock

Warranty & Security

Music Plus Warranty: 1-Year Coverage for Manufacturing Defects!

Shipping Policy

Enjoy fast, reliable, and fully tracked delivery straight to your doorstep!

Politique retours

Easy returns. Hassle-free exchanges. Total peace of mind.

Pay with peace of mind: up to 12 months with no fees.

Guarantee safe checkout

B&C DE780TN – Compression Driver 1.4″ 16 Ω , 220 W Continuous, 108 dB, Titanium Diaphragm

Informations

The B&C DE780TN is a high-performance HF compression driver, ideal for compact line-array and professional sound reinforcement systems. Its titanium diaphragm, large 75 mm voice coil, and neodymium magnet deliver powerful output with exceptional clarity and reduced weight.

Characteristics

- 220 W continuous (program) power handling

- 1.4″ (36 mm) throat exit

- 75 mm (3 ″) aluminum voice coil

- Titanium diaphragm

- 500–18 000 Hz frequency response

- 108 dB sensitivity

- Neodymium magnet with copper shorting cap

Specifications

- Nominal impedance: 16 Ω; minimum impedance: 8.7 Ω

- Nominal (RMS) power: 110 W

- Continuous power: 220 W

- Recommended crossover: ≥ 1.2 kHz

- Inductance: 0.04 mH

- Flux density: 1.95 T

- Overall diameter: 112 mm (4.41 ″)

- Depth: 56 mm (2.2 ″)

- Net weight: 1.6 kg (3.5 lb)

- Mounting: 4 × M6 holes on 102 mm circle

Reference : DE780TNXXX

Hurry! only 9 items left in stock.

Specific References

EAN13: 9000000008915
